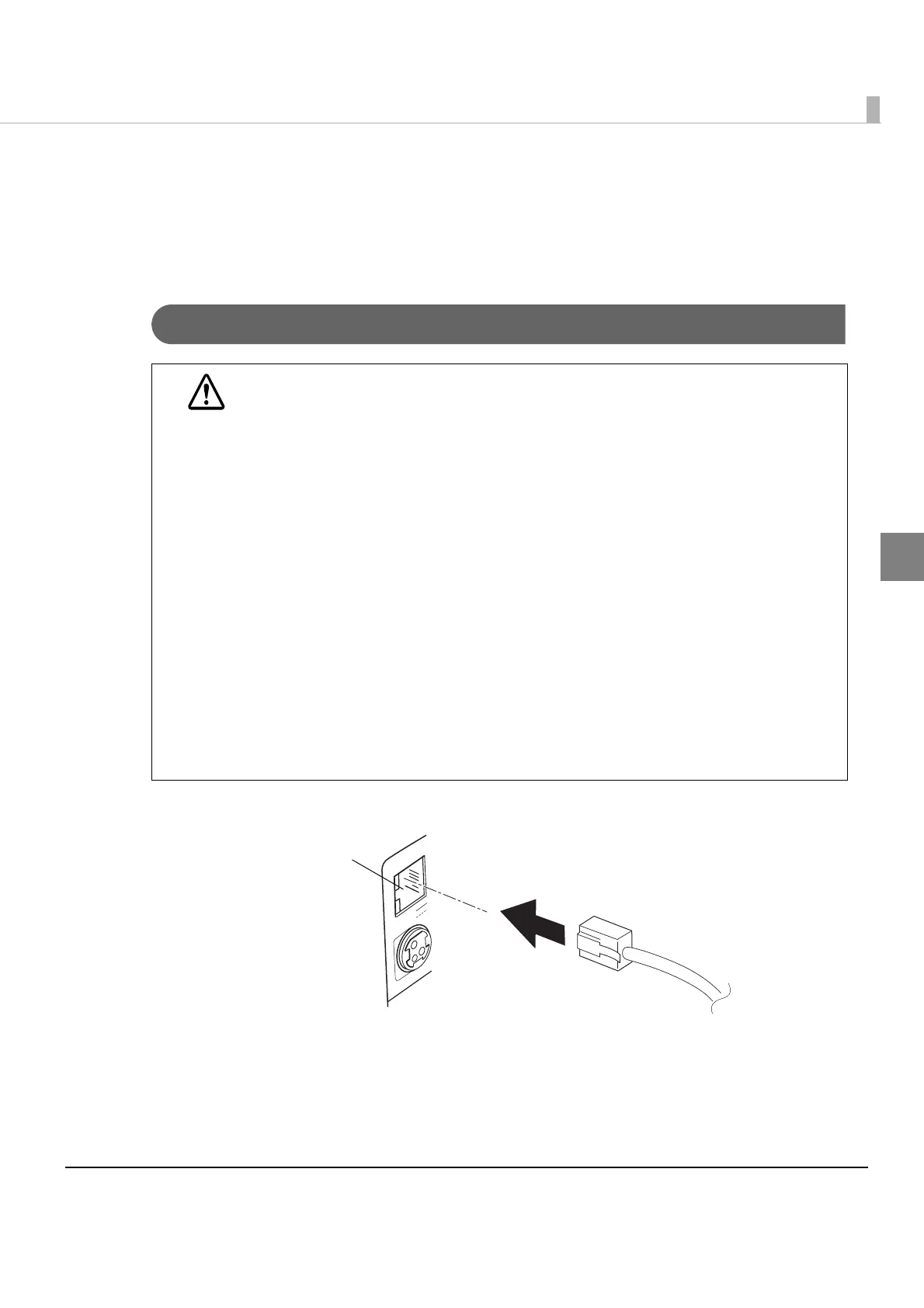

Connecting the Cash Drawer
When using a cash drawer, connect the cash drawer.
Use the cash drawer handled by EPSON or your dealer.
Connecting the Drawer Kick-out Cable
Connect the connector of the drawer kick-out cable to the printer.
WARNING
 Specifications of drawers differ depending on makers or models. When you use a
drawer other than specified, make sure its specification meets the following
conditions.
Otherwise, devices may be damaged.
 The load, such as a drawer kick-out solenoid, must be connected between pins 4 and
2 or pins 4 and 5 of the drawer kick-out connector.
 When the drawer open/close signal is used, a switch must be provided between
drawer kick-out connector pins 3 and 6.
 The resistance of the load, such as a drawer kick-out solenoid, must be 24
 or more
or the input current must be 1A or less.
 Be sure to use the 24V power output on drawer-kick out connector pin 4 for driving the
equipment.
 Use a shield cable for the drawer connector cable.
 Two driver transistors cannot be energized simultaneously.
 Leave intervals longer than 4 times the drawer driving pulse when sending it
continuously.
 Be sure to use the printer power supply (connector pin 4) for the drawer power
source.
 Do not insert a telephone line into the drawer kick-out connector.
Doing so may damage the telephone line or printer.
DK
24V
Drawer kick-out connector

Epson TM-L90-i Specifications

General

Type	POS printer
Character size	0.99 x 2.4 mm
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Country of origin	China
Autocutter durability	2 million cuts
Mean time between failures (MTBF)	180000 h
Product color	Gray
Maximum roll diameter	90 mm
USB port	Yes
USB connector	Micro-USB Type-A, Micro-USB Type-B, USB Type-A
USB 2.0 ports quantity	4
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No
Ethernet LAN data rates	10, 100 Mbit/s
Package depth	300 mm
Package width	190 mm
Package height	240 mm
Package weight	3000 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	195 mm
Width	145 mm
Height	148 mm
