Connecting the Peripherals
Connect each cable of a peripheral to a port or connector at the rear of the product.

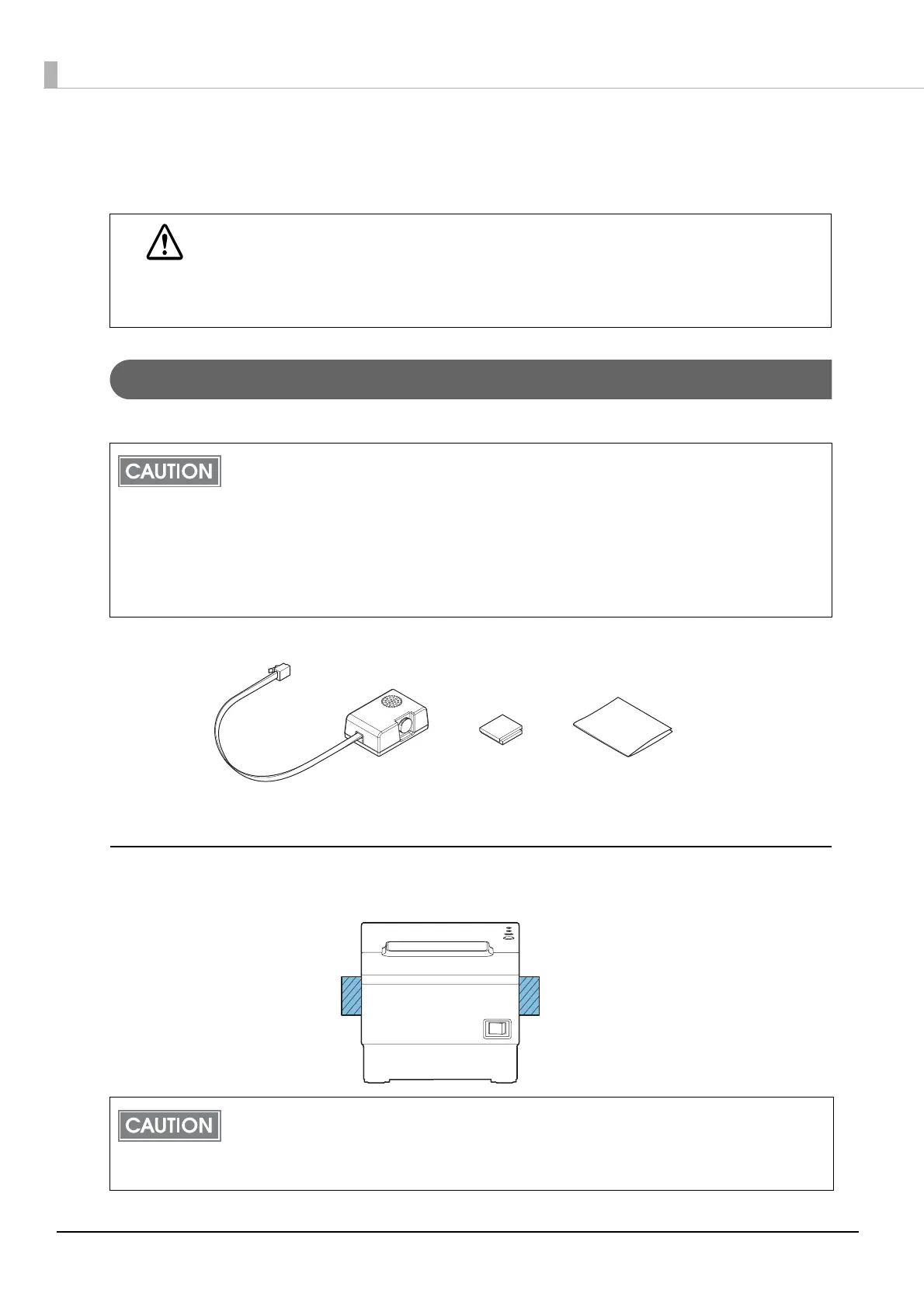

Connecting the Optional External Buzzer
You can use the optional external buzzer (OT-BZ20) by connecting it to the drawer kick connector.
Check whether the following items are included.
Installation Position
This product is recommended to be installed on either side of the product.
CAUTION
• When connecting USB interface devices, make sure to check the devices or manuals,
etc. for current consumption. The total value should be 800 mA or less. Never use
devices that provide no information on current consumption.
• Make sure that the protective cover is securely fit into place while the product is oper-
ating.
• The optional external buzzer and the drawer cannot be used together at the same time.
• If you configure the memory switch (customized value) setting to enable the optional external
buzzer, the drawer cannot be opened because the pulse is not sent to the drawer kick
connector pin.
• Make sure to use the accessory affixing tape (hook and loop fastener) to attach the optional
external buzzer to the product.
• Be careful not to spill water, oil, solvent, or any other liquid over the product. Doing so may
result in malfunction of the product.
• Do not install the optional external buzzer at the roll paper exit.
• To prevent liquid from entering inside, it is recommended to install the optional external
buzzer so that the volume adjustment knob is positioned sideways or downward. (For details
of the volume adjustment knob, see "Adjusting the Buzzer Volume" on page 38.)
Optional external buzzer
Affixing tape
(1 pair, 2 pieces)
User’s Manual
To Next Page
