EPSON
TITLE
SHEET
REVISION
NO.
SHEETNEXT
F
TM-U295/U295P
Specification
(STANDARD)
10 9

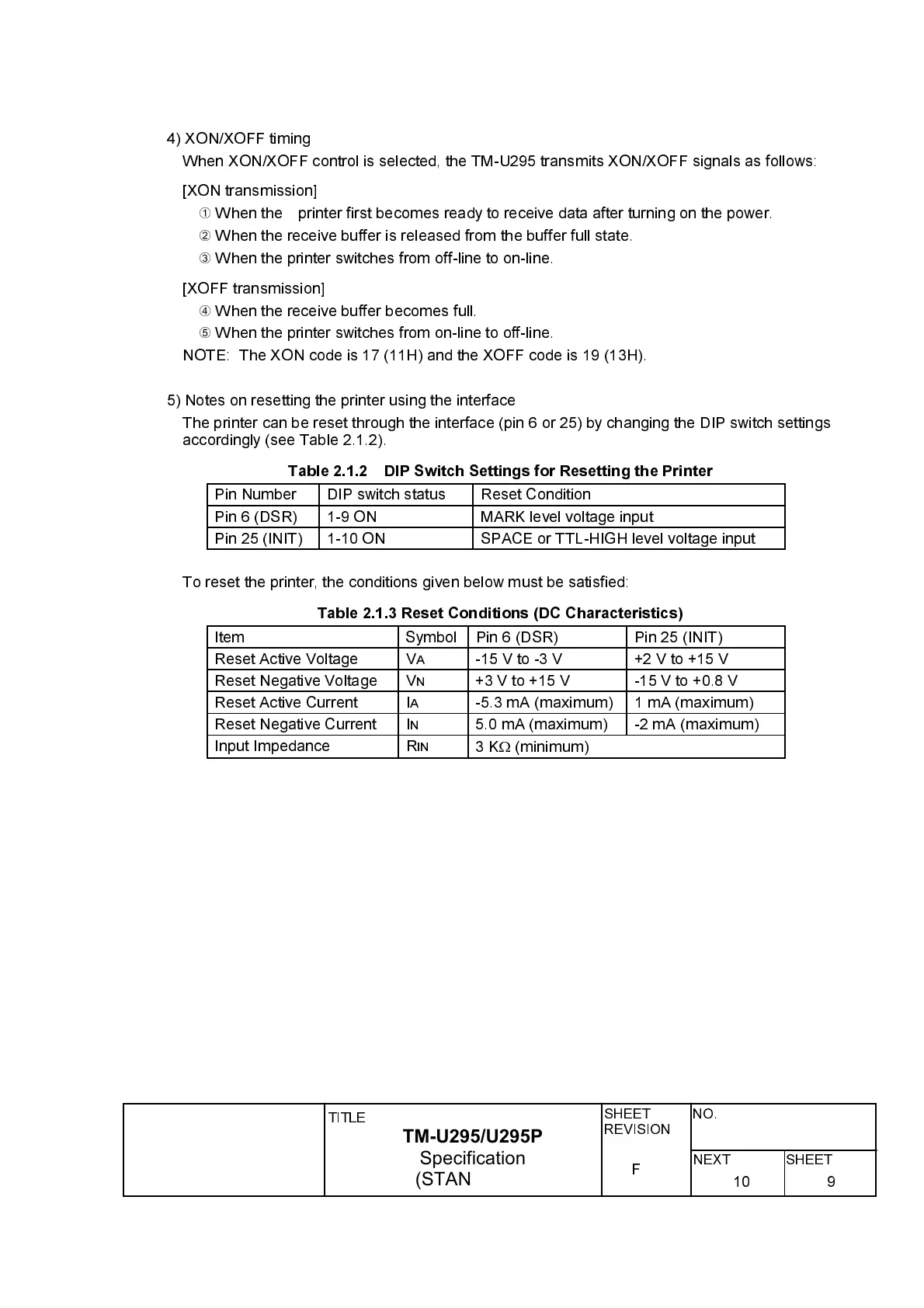

4) XON/XOFF timing
When XON/XOFF control is selected, the TM-U295 transmits XON/XOFF signals as follows:
[XON transmission]
À
When the printer first becomes ready to receive data after turning on the power.
Á
When the receive buffer is released from the buffer full state.
Â
When the printer switches from off-line to on-line.
[XOFF transmission]
Ã
When the receive buffer becomes full.
Ä
When the printer switches from on-line to off-line.
NOTE: The XON code is 17 (11H) and the XOFF code is 19 (13H).
5) Notes on resetting the printer using the interface
The printer can be reset through the interface (pin 6 or 25) by changing the DIP switch settings
accordingly (see Table 2.1.2).
Table 2.1.2 DIP Switch Settings for Resetting the Printer
Pin Number DIP switch status Reset Condition
Pin 6 (DSR) 1-9 ON MARK level voltage input
Pin 25 (INIT) 1-10 ON SPACE or TTL-HIGH level voltage input
To reset the printer, the conditions given below must be satisfied:
Table 2.1.3 Reset Conditions (DC Characteristics)
Item Symbol Pin 6 (DSR) Pin 25 (INIT)
Reset Active Voltage V
A
-15Vto-3V +2Vto+15V
Reset Negative Voltage V
N
+3 V to +15 V -15 V to +0.8 V
Reset Active Current I
A
-5.3 mA (maximum) 1 mA (maximum)
Reset Negative Current I
N
5.0 mA (maximum) -2 mA (maximum)
Input Impedance R
IN
3K
W
(minimum)
To Next Page
