WF-C20590 Installation Guide
Installing the Optional Units
50

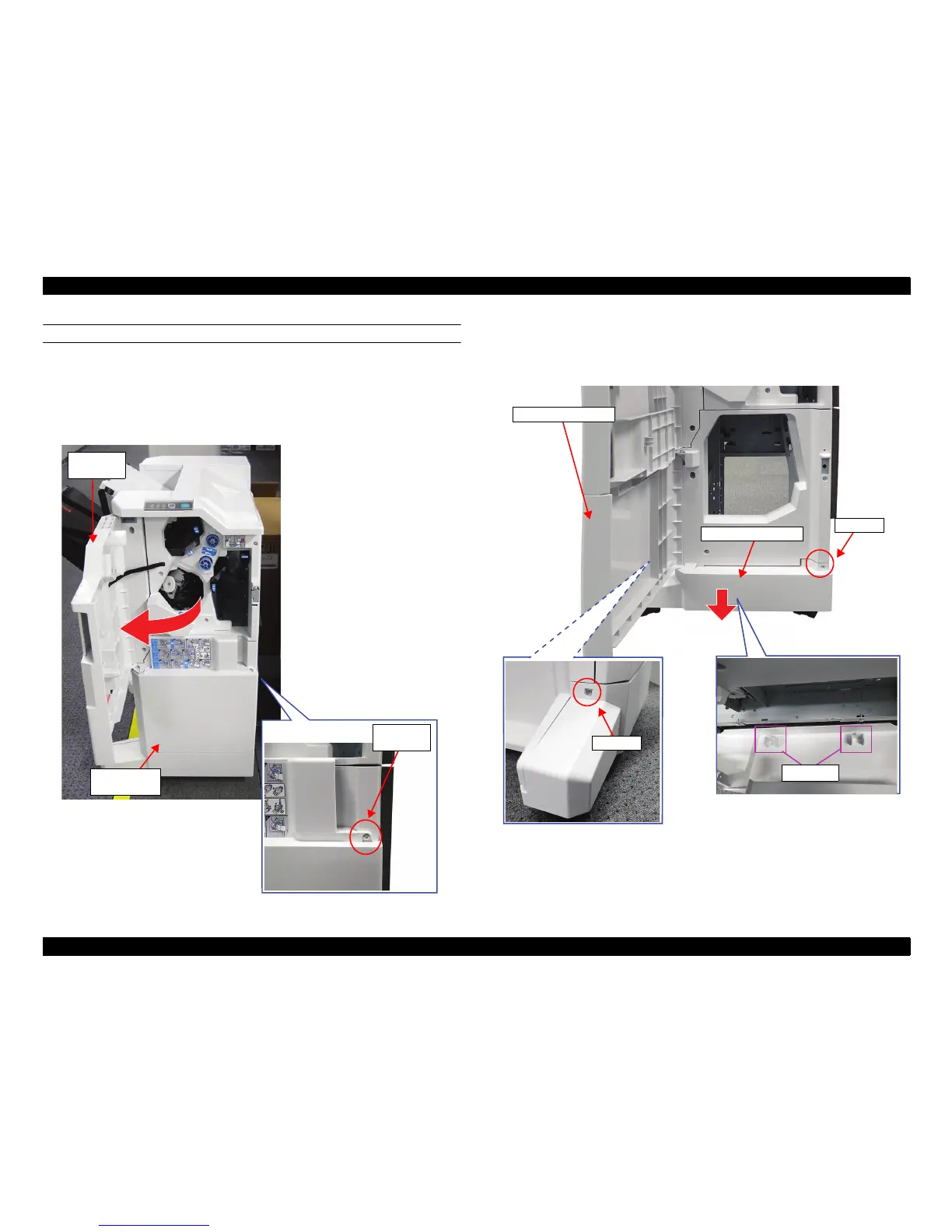

ADJUSTING THE FINISHER UNIT HEIGHT
You can adjust the height
of the Finisher Unit by changi
ng the height of its
casters, if necessary.
1.
Open the Front Cover of the Finisher Unit.
2.
Remove the screw in the Lower Front Cover, then open the cover.
3.
Remove two screws in the Front Caster Cover.
4.
Slide the Front Caster Cover down, release the hooks, an
d remove the Front Caster
Cover.
Front
Cover
Remove
the screw
Lower Front
Cover
Lower Front Cover
Front Caster Cover
Screw
Hooks
Screw
PRELIMINARY
