Epson WF-C20590

WF-C20590 Installation Guide
Installing the Optional Units 46

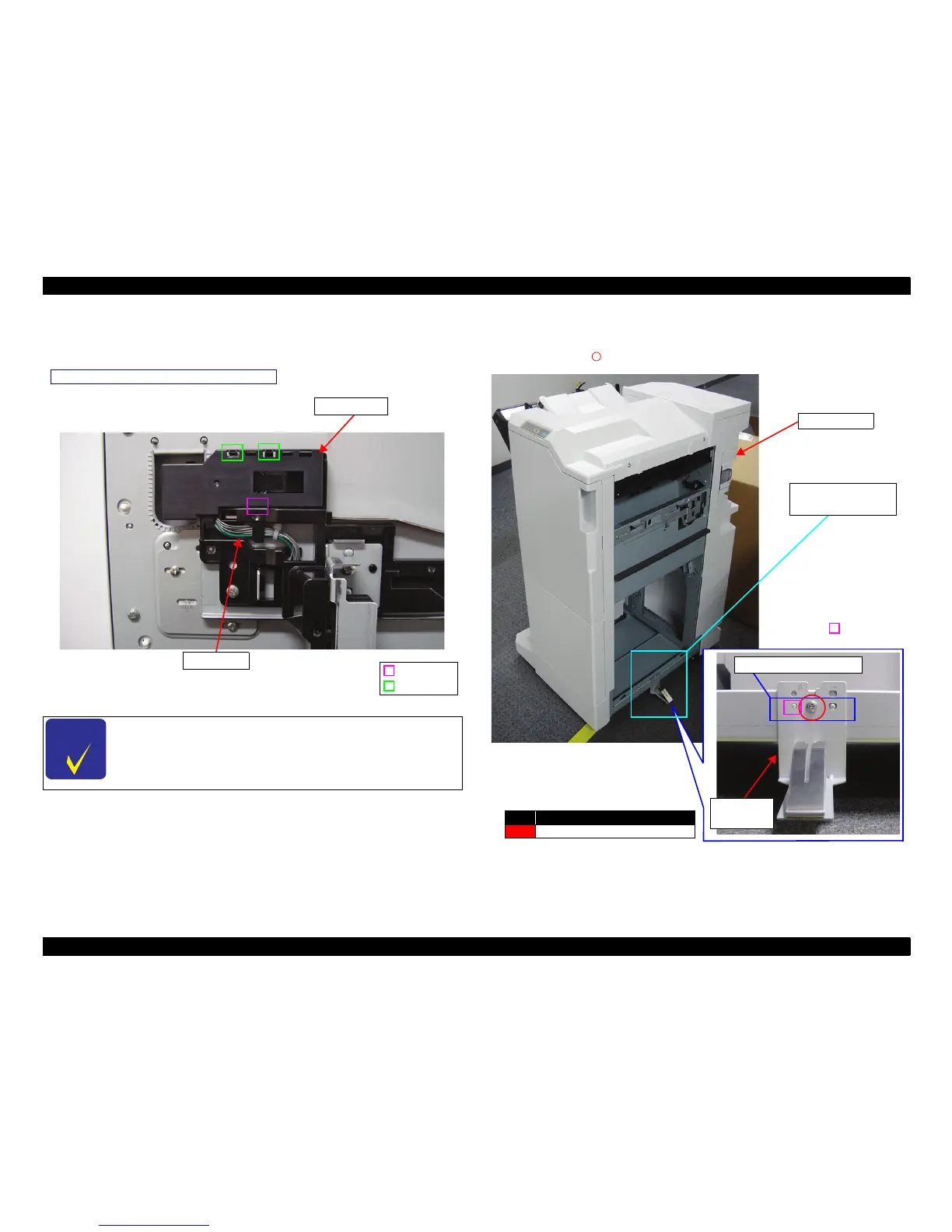

4. Place the Cable Cover over the relay cables, then insert the dowel of the Cable
Cover into the plate and attach it with the two hooks.
5. Place the B Positioning Hole on the Grounding Plate over the dowel on the center
of the lower right side of the Finisher Unit. Then attach the Grounding Plate with
one screw (S16: ).
C H E C K
P O I N T
There is a mounting hole and dowel on both the center and
front side of the Finisher Unit.
When attaching the Grounding Plate in the following step,
install it only to the center of the Finisher Unit.
Left Side of The Bridge Unit
Cable Cover
Dowel
Hook
Relay Cable
Grounding
Plate
B Positioning Hole
Grounding plate
attaching position
Finisher Unit
No. Screw types
S16
C.B.SCREW, 4X8, F/ZN-3C
Dowel
PRELIMINARY
