Epson WF-C20590 - Left Side; Buffer Blocks

WF-C20590 Installation Guide
Installing the Optional Units 34

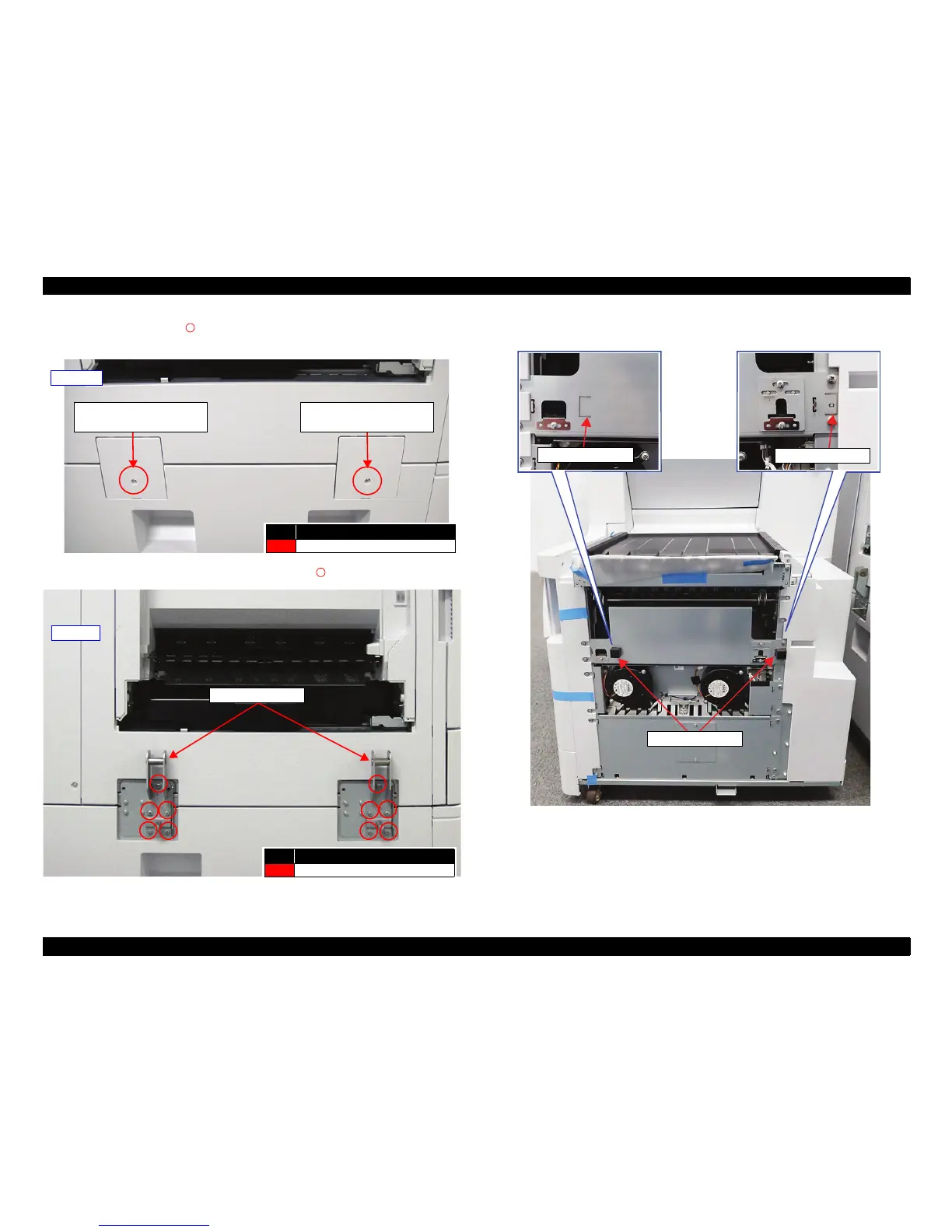

14. Remove each screw (S1: ) on the Multi-Cassette Optional Attachment Cover,
then remove both covers.
15. Attach the joint hangers (×2) with five screws (S16: ) on each side.
16. Attach the Buffer Blocks along the marking lines.
Left side
Multi-Cassette Optional
Attachment Cover, R
No. Screw types
S1
C.B.S-TITE R, SCREW, 3X8, F/ZN-3C
Multi-Cassette Optional
Attachment Cover, L
Joint Hanger
No. Screw types
S16
C.B.SCREW, 4X8, F/ZN-3C
Left side
Buffer Blocks
Marking line
Marking line
