Epson WF-C20590

WF-C20590 Installation Guide
Installing the Optional Units 47

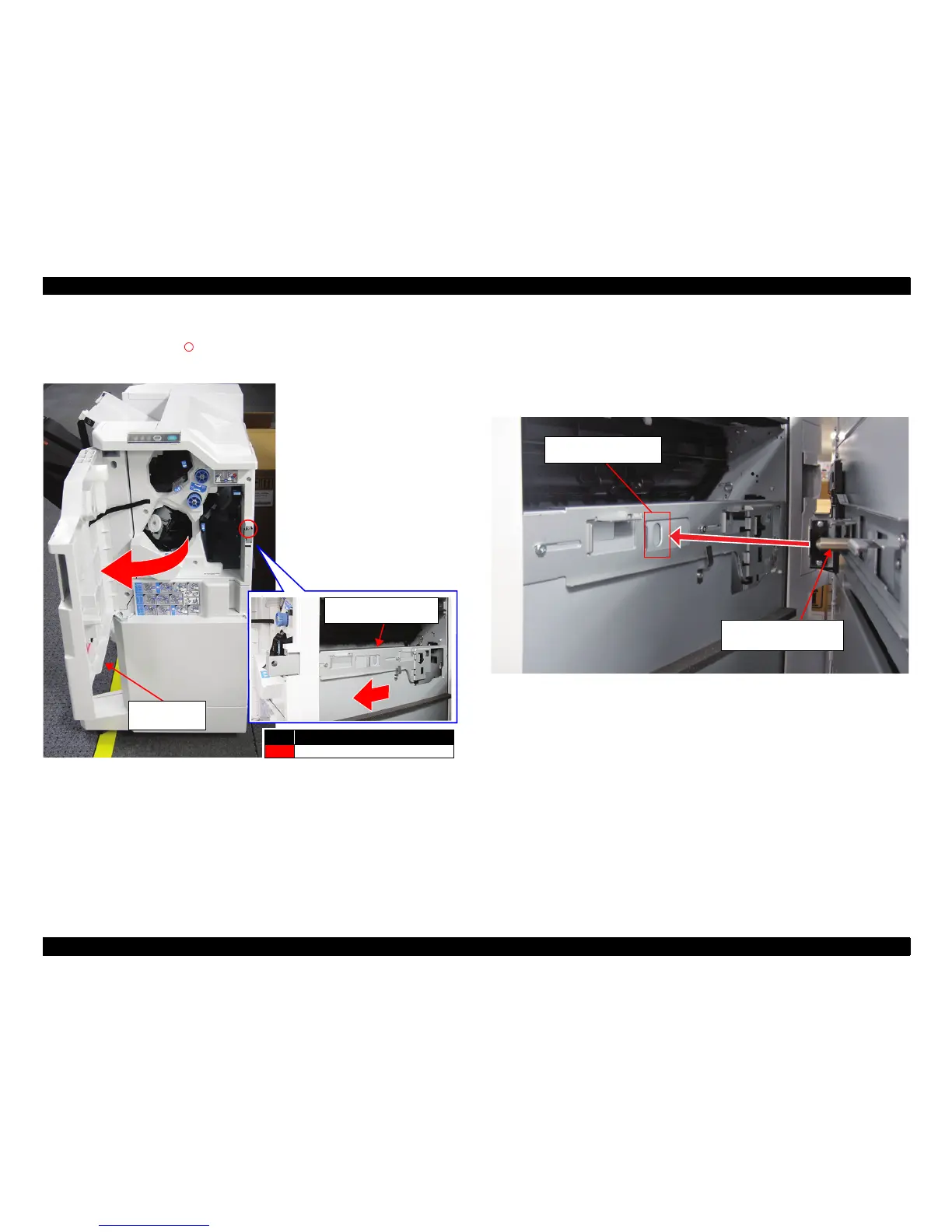

6. Open the front cover of the Finisher Unit.
7. Remove the screw (S16: ) for the Finisher Joint Fix Slider Lock.
8. Pull the Finisher Joint Fix Slider Lock toward the front to unlock it.
9. Insert the Finisher Joint Drawer Plate Shaft into the hole on the Finisher Joint Fix
Slider Lock to connect the Finisher Unit to the Bridge Unit.
If the height of the Finisher Unit does not allow connection to the Bridge Unit, or
the casters of the Finisher Unit do not touch the ground after installation, you may
have to adjust the casters on the Finisher Unit (see
Page 50).
Finisher front
cover
Finisher Joint Fix
Slider Lock
No. Screw types
S16
C.B.SCREW, 4X8, F/ZN-3C
Finisher Joint Drawer
Plate Shaft
Finisher Joint Fix
Slider Lock hole
PRELIMINARY
