Installing the Optional Units 48
10. Push the Finisher Joint Fix Slider Lock back into the lock position, and attach it
with the screw that you removed in Step 7.
11. Install the Finisher Paper Ejection Tray and the Sub Tray.
C H E C K
P O I N T
If the Finisher Joint Fix Slider Lock can not be attached,
press the Finisher Unit against the Bridge Unit from the left
side, and tightly close the Bridge Unit until the Finisher Joint
Fix Slider Lock can be attached.

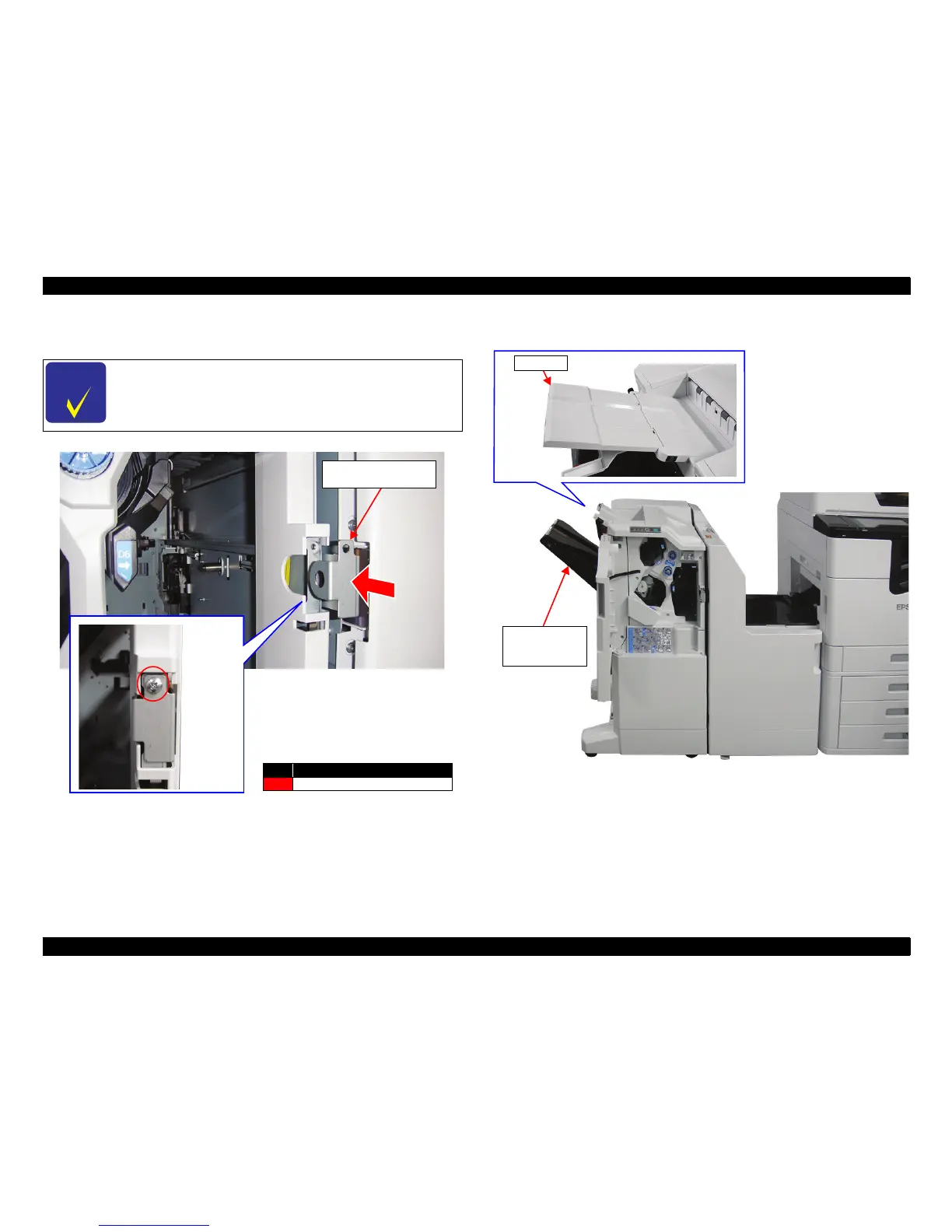

Finisher
Joint Fix Slider Lock
No. Screw types
S16
C.B.SCREW, 4X8, F/ZN-3C
Sub Tray
Finisher
Paper Ejection
Tray
