Step Description Diagram

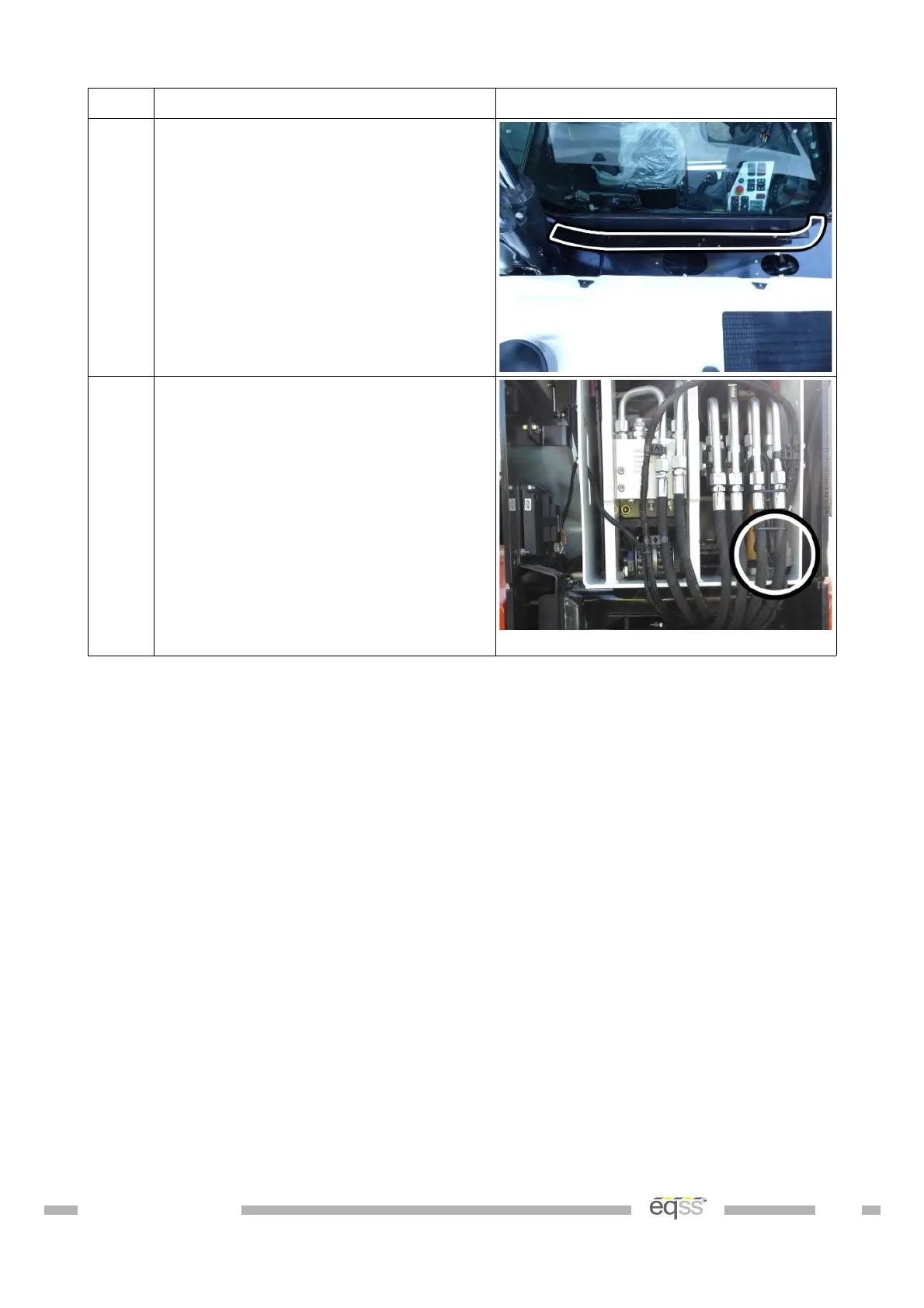

4. Run the cutout and lock pin release
harnesses along the same path
under the chassis covers as the
existing electrical harnesses
towards the spool assembly at the
rear of the machine.
Run the CCIM cable along the same
path as the existing electrical
harnesses and through the hole into
the cabin.
5. Run the eight pin connectors on the
lock pin release harness up to the
connection to the cable running up
through the boom and secure in
place using cable ties.
This will be connected during
Finalisation on page 42.
View from rear of machine
