Step Description Diagram

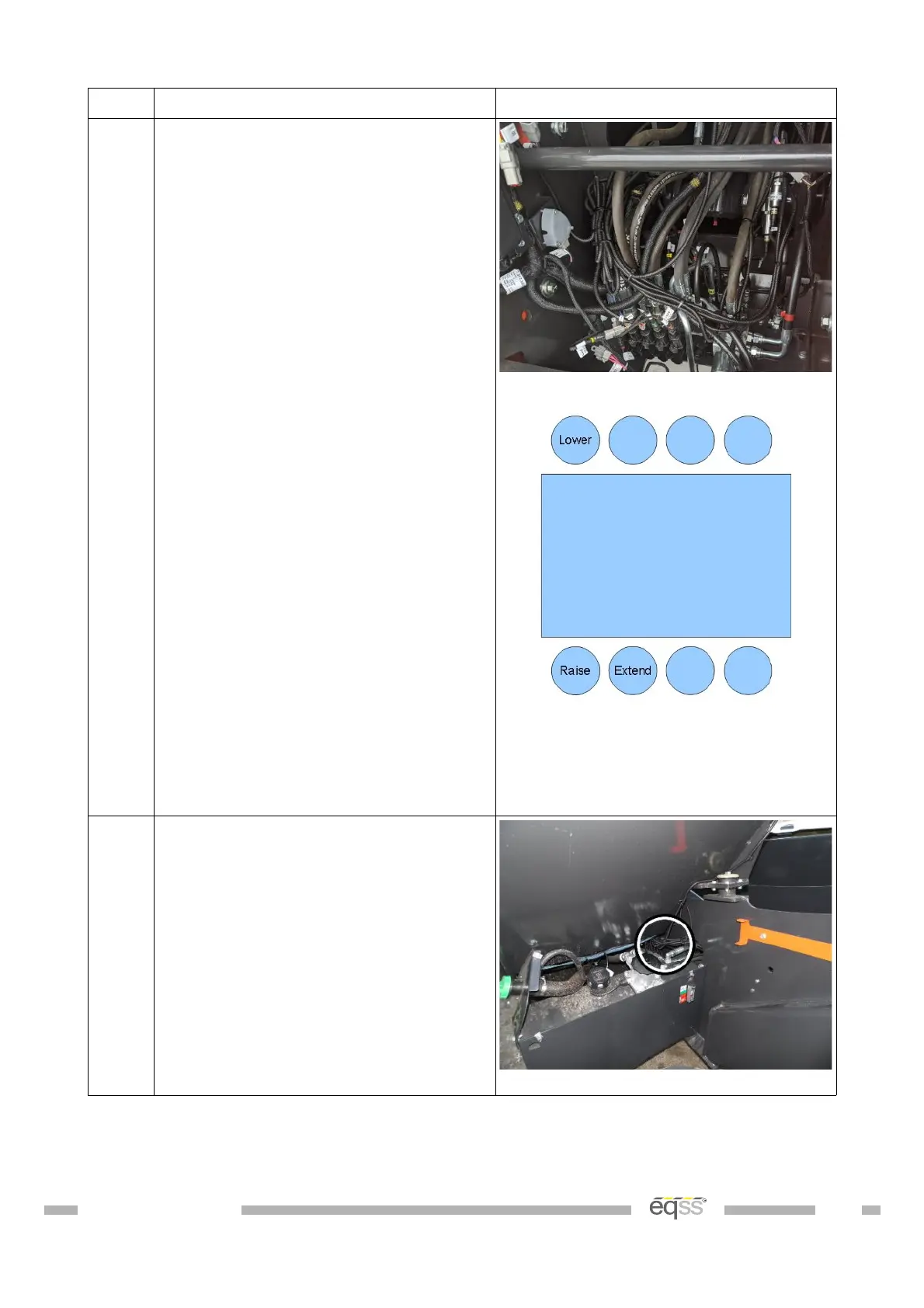

6. Run the two pin connectors on the
cutout harness down to the boom
lower connector on the hydraulic
block and secure in place using
cable ties.
This will be connected during
Finalisation on page 42.
Note: The location of the connectors
in the picture above may not match
the machine, check the label on the
connector
7. Coil up the additional cabling for the
pressure sensor, CCIM and boom
cables and store under the cabin
behind the CPIM.
View from behind the cabin
DO001547 VER: 2303241610 30 of 58
