1TEST PROGRAMS AND ADJUSTMENTS71 / 266
Art. No.: 80116-201
09 / 2004
• cos Phi Phase angle 0…100
*)
Set value = 100
• P Emitted active power [W]; Set value = 100 watts at 500 R
cos-j display, when the “Up” (8) key is pressed.
P display, when the“Down” (9) key is pressed.
*)To avoid decimal places, the value of the table value of cos j is indicated times 100, such that 100 means cos j = 1.

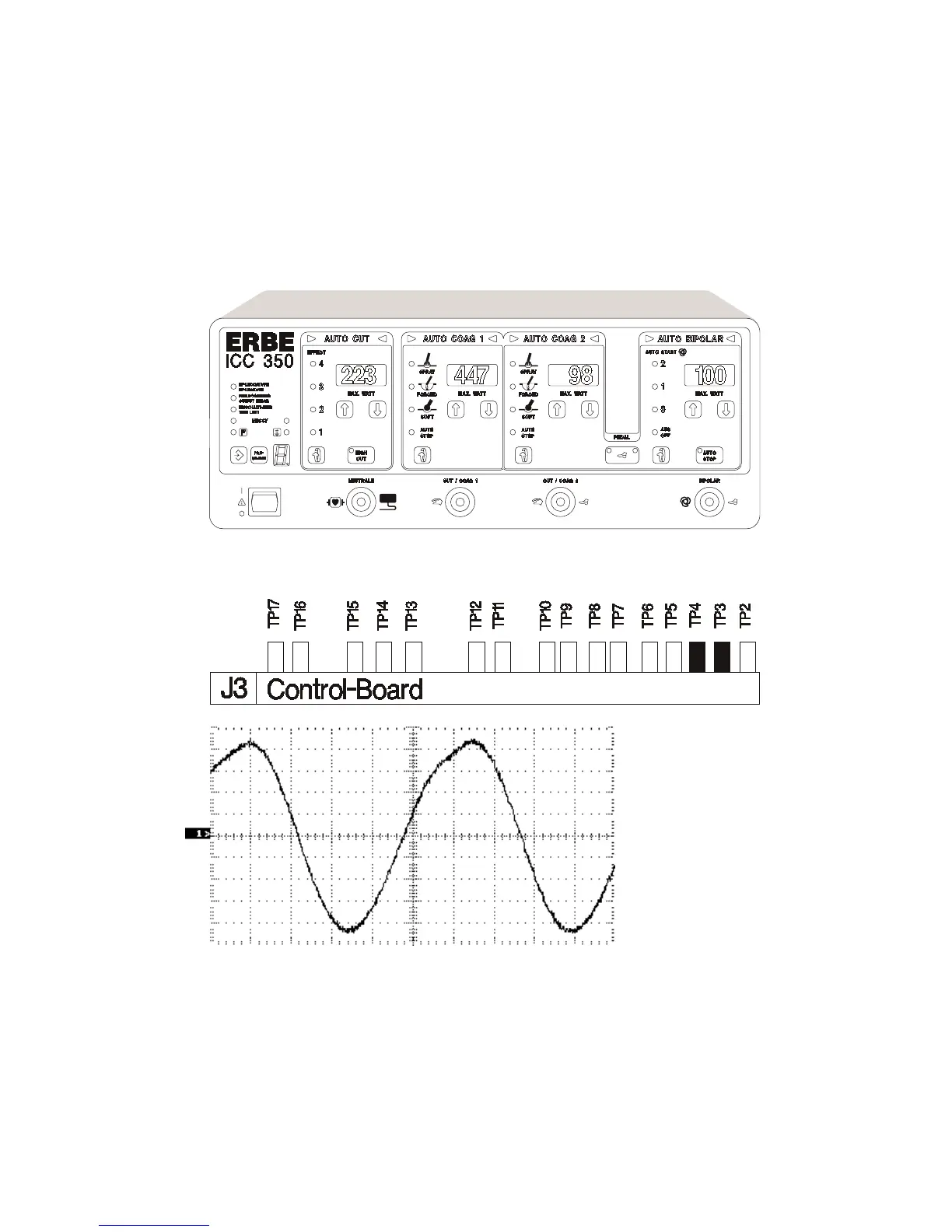

Adjustment 5
HF generator output parameters
Fig.: HF voltage at
R = 500 ohms
500 ns/Div
100 V/Div
