Erbe ICC 300 H-E - Page 95

1TEST PROGRAMS AND ADJUSTMENTS95 / 266
Art. No.: 80116-201 09 / 2004
• uuu Standby measurement value of the contact monitor at a preset bipolar power of 10 watts
• rda Calculated contact resistance at activation [W/100]
• iii Amplified output current at contact resistance < 1 kW
• rLo Display if resistance measured at activation < 1 kW

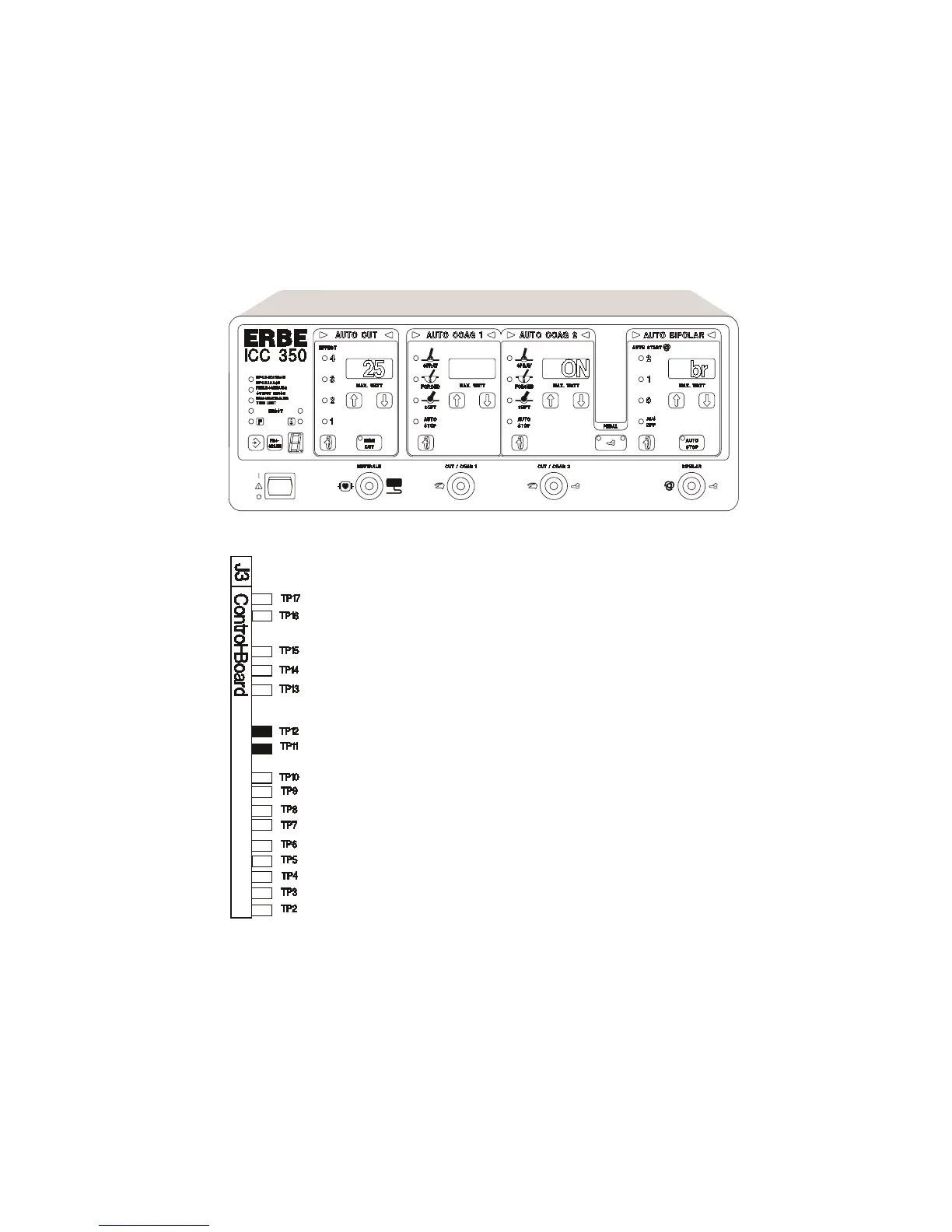

Adjustment 11
Contact monitor
