1TEST PROGRAMS AND ADJUSTMENTS99 / 266
Art. No.: 80116-201
09 / 2004

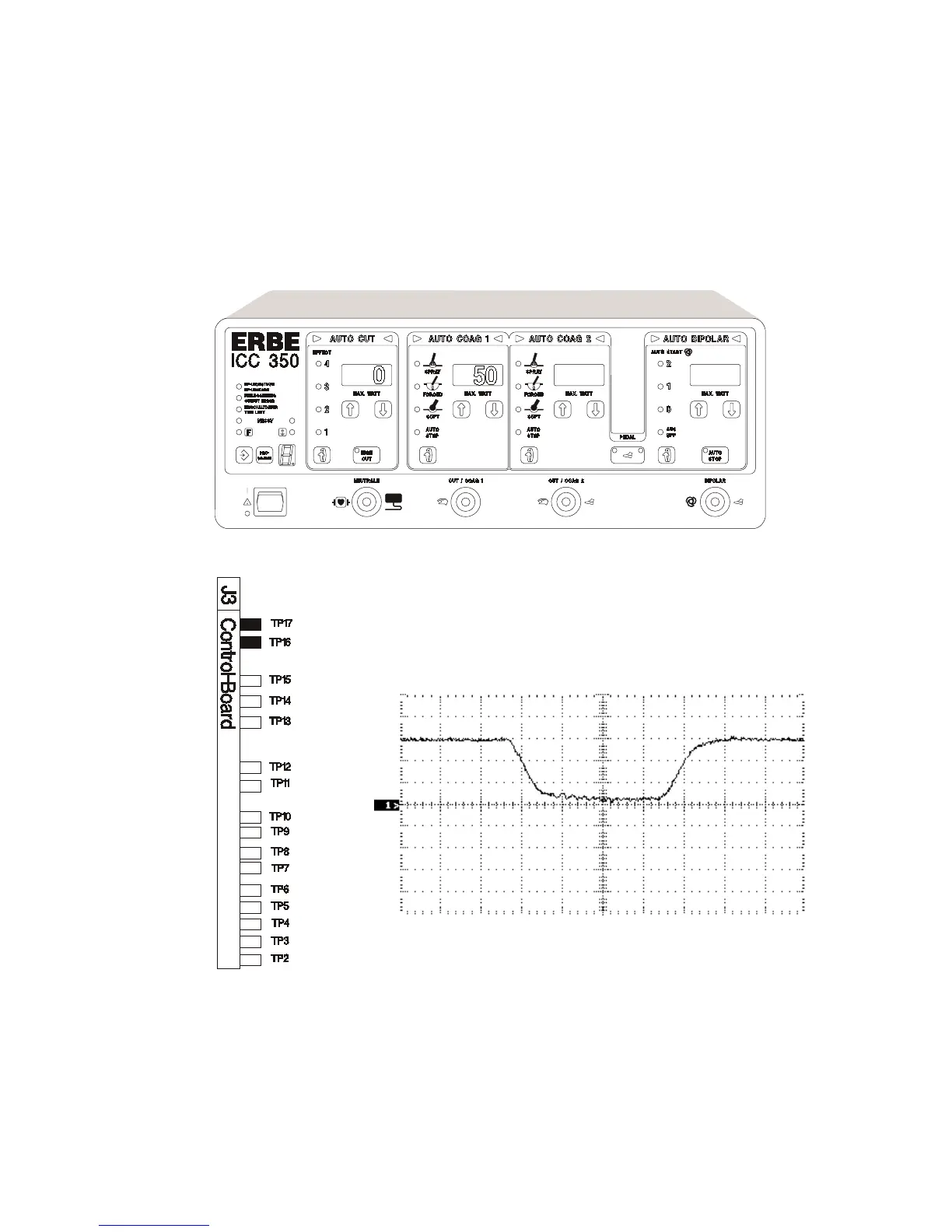

Adjustment 12
Pulse/pause length ST output stage
Fig. : Transistor switching pulse ST
output stage
50 ns/Div
5 V/Div
