– 15 –

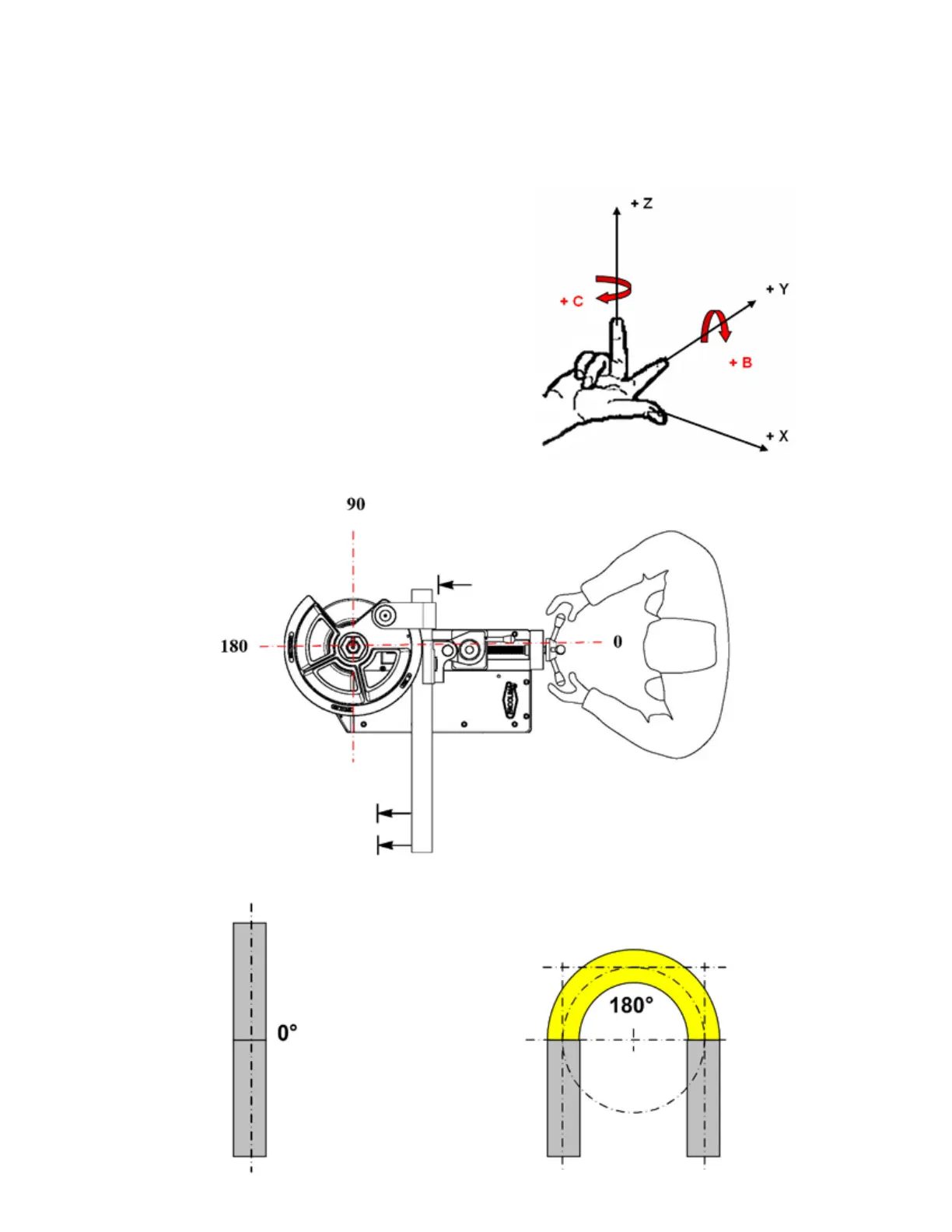

Axis Explanation
- Coordinate systems -
Right-handed, rectangular coordinate systems are used for machine tools. Such systems
describe the movements of the machine as a relative direction between tool and work piece.
Specication of the axis directions to one another ►
C axis bend angle is between 0° and 180°
- C axis bend angle coordinate system -
TB100/TB13003/2015
