Before you Begin
Inspect machine to confirm receipt of the following equipment and no damage occurred during shipment. If
machine was purchased with a tube or pipe tooling kit, refer to tables at the bottom of page 81 for included
formers and counterbending dies.
Standard Equipment
TB100 Top Bender TB130 Top Bender
Hand wheel Hand wheel
Tie bar Tie bar
40mm hex shaft 40mm hex shaft
50mm hex shaft 50mm hex shaft
80mm hex shaft 80mm hex shaft
110mm hex shaft
Wiring Instructions
Attention! This machine must be wired for specific voltage. Have a qualified electrician connect
this machine according to the following instructions on an isolated circuit. CML USA Ercolina
®
is not respon-
sible for damage that may occur from improper installation.
1. Determine location of machine installation (with machine disconnected from power source).
2. Measure incoming line voltage at power source. Note: the TB100 and TB130 Top Benders utilize an in-
verter drive system to deliver power to control board and drive motor. It is highly recommended a proper
dedicated circuit is used, failure to do so will result in erratic machine performance.
3. Conrm the rated voltage matches the measured incoming line voltage.

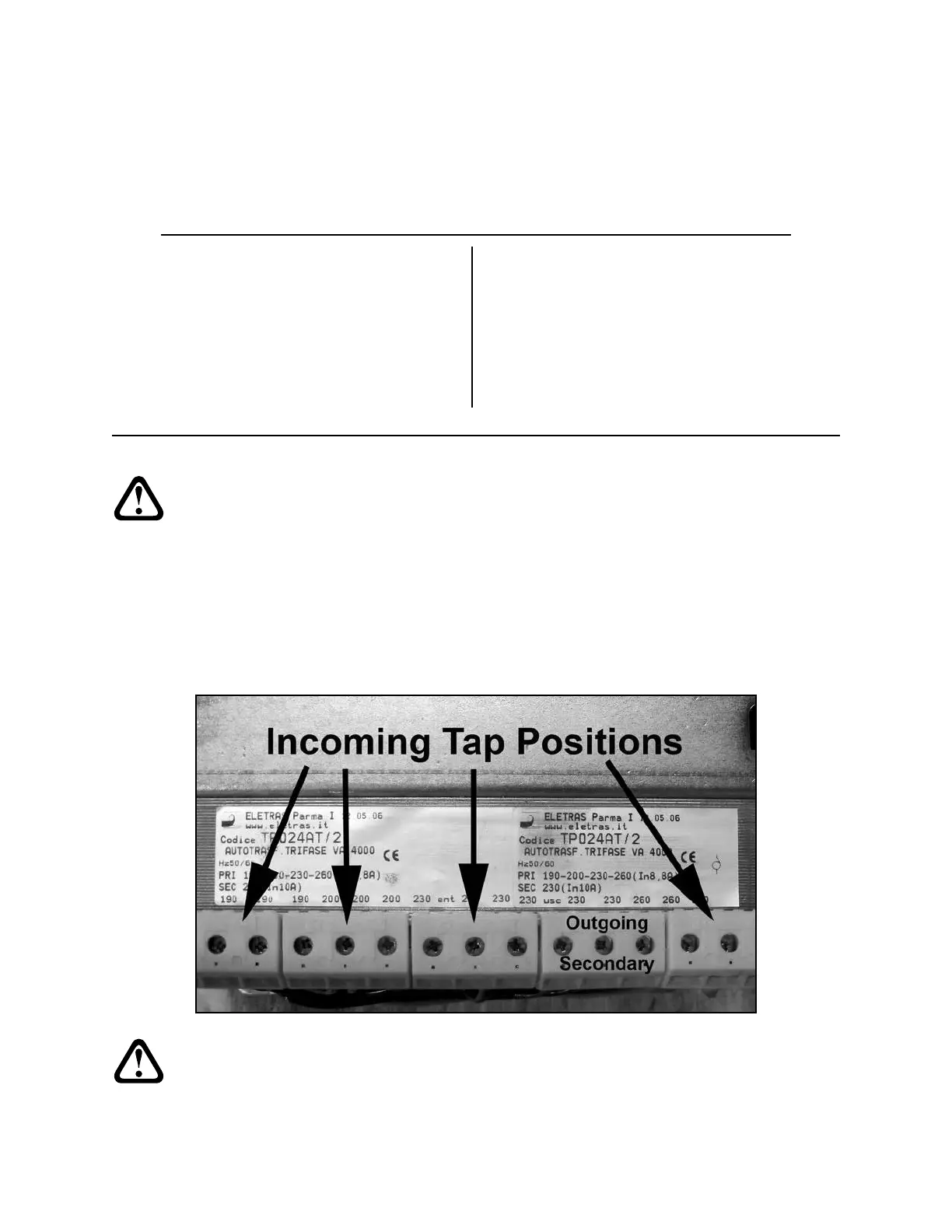

Transformer Conguration
Attention! Never reposition outgoing secondary wires.
4. Close and secure access panel. Connect machine to power source.
