– 17 –
Tie Bar
The TB100 and TB130 are equipped with a Tie Bar. It is recommended the tie bar be used at all times.

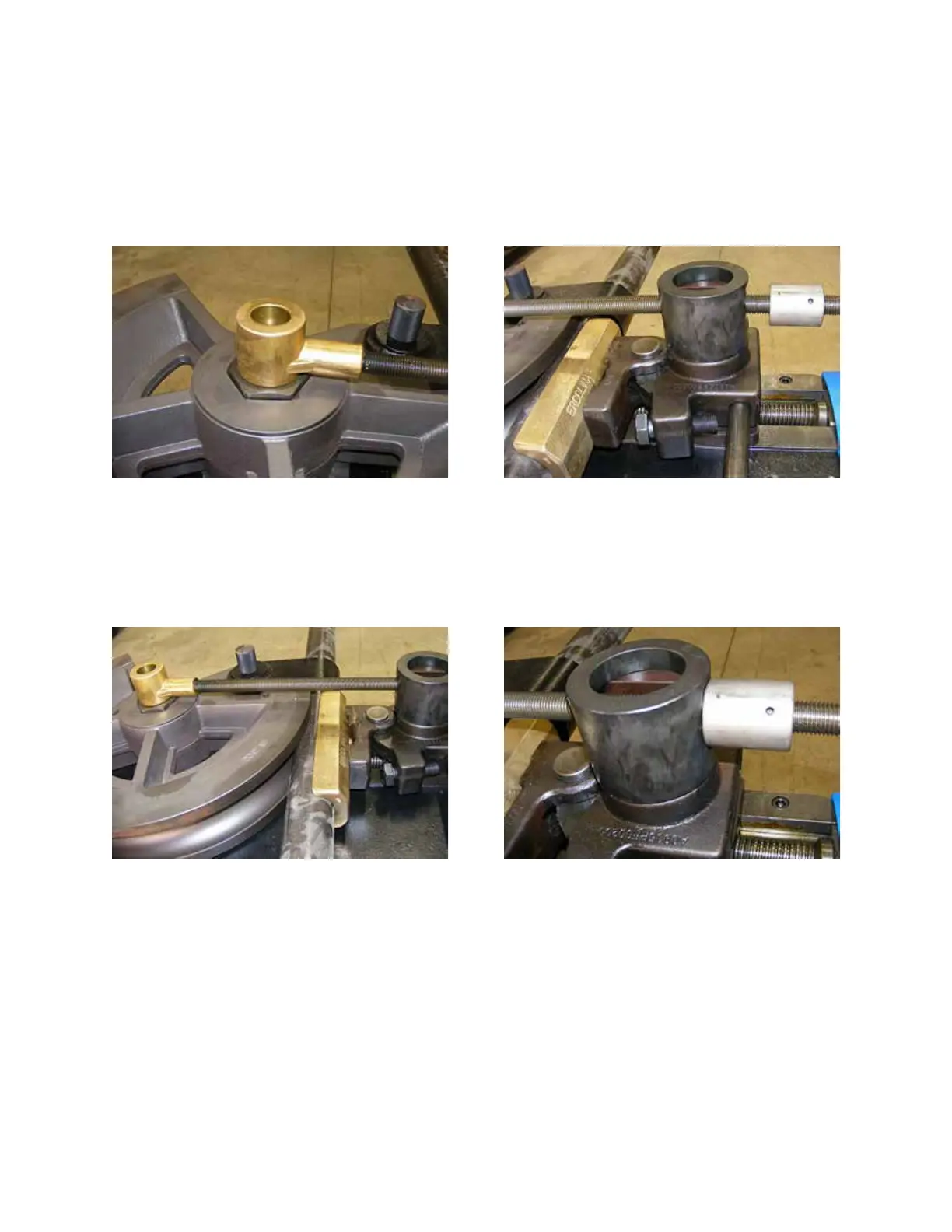

- Mounting tie bar -
1. With tooling mounts and material in position, attach the tie bar eyelet to the top of the hex shaft
making sure that the threaded rod rests on the vise mount.
2. Adjust and tighten locking nuts on threaded rod securing tie par in position.
Note: Apply grease to eyelets of tie bar.
TB100/TB13003/2015
