Machine Settings

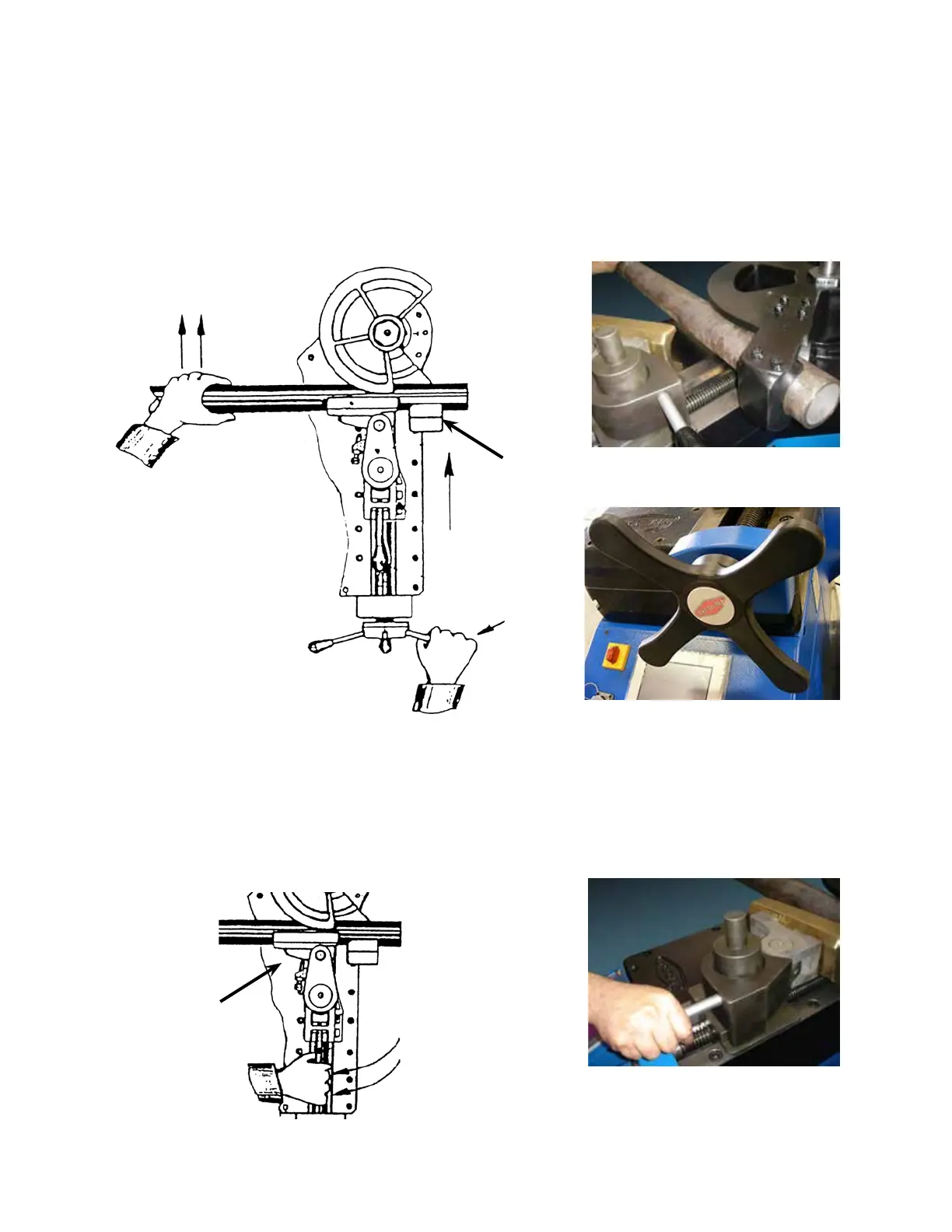

- Loading workpiece -
1. Slide workpiece into gripper arm and groove of center former
2. Using hand wheel advance counterbending die forward until material rests securely between former
and die (see FIG. 1).
3. Properly adjusted vise and counterbending die assembly should be perpendicular to workpiece and
swing freely counterclockwise to release workpiece (see FIG. 2).
Note: If vise assembly pivots away from material at beginning of bend, reduce pressure on vise. Proper
counterbending die adjustment ensures satisfactory bends.
(FIG. 1)
(FIG. 2)
Gripper arm
Large radius former
Hand wheel
Standard tool shown
