Referencing “X axis” Counterbend Die Position
To maintain proper counterbending die pressure, adjust “X axis” starting position.
The TB100 and TB130 are equipped with an encoder on the X axis. The encoder displays the position of
the X axis which helps maintain consistent and repeatable bends. This encoder can be turned on or off
depending on user preference.

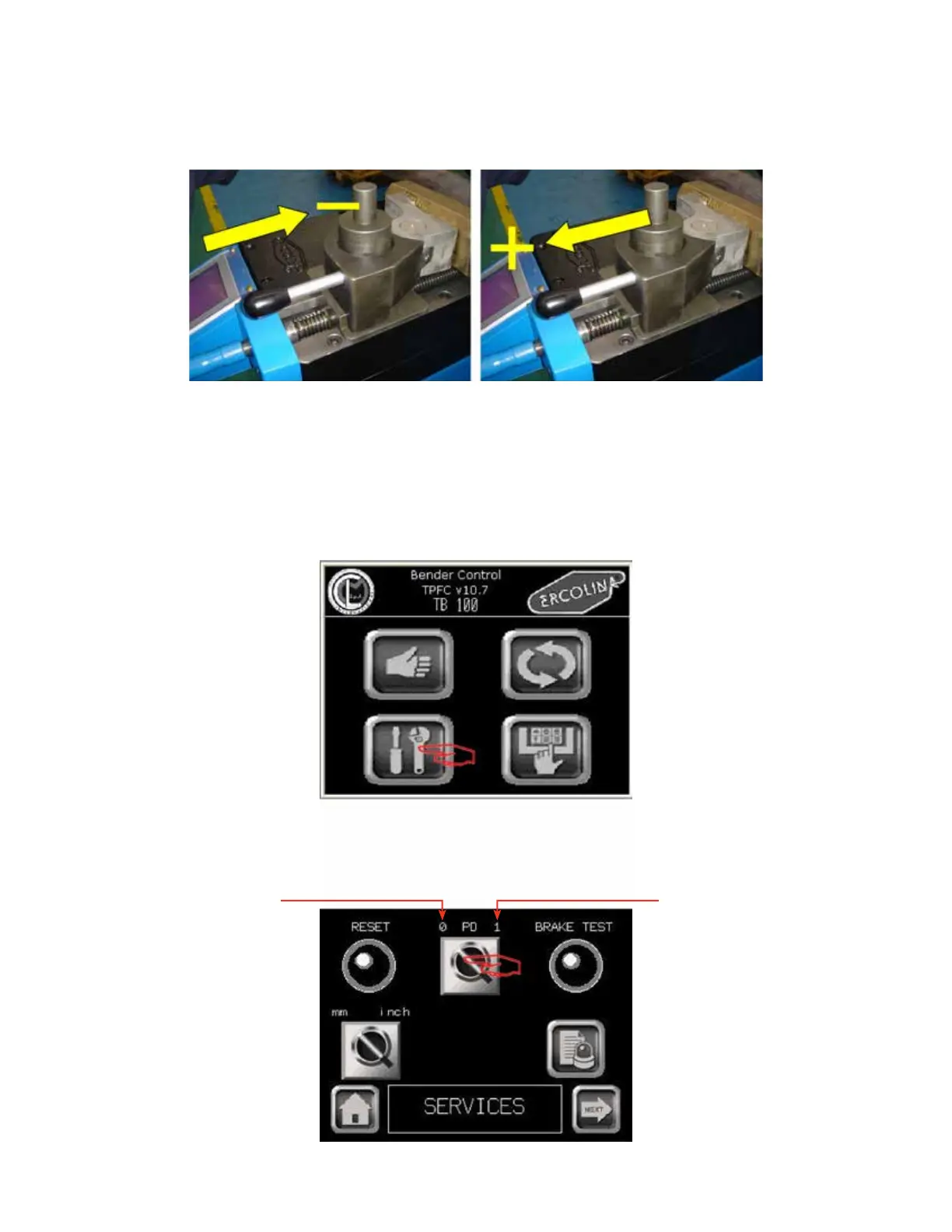

Vise assembly (X axis) negative direction Vise assembly (X axis) positive direction
- Turning encoder on -
1. From Main menu select Services button
Main menu
2. From the Services menu press "PD" button to toggle on or off.
Services menu
OFF ON
