– 48 –
Parameters:
● PROG: Program number.
Displays program number value from 0 to 1999.
● COM: Comment text associated to the program number (max 24 characters)
● BEND: Current bend number (or line number) you can edit this value to choose the
initial line number to start cycle.
● PRG: Program value for C axis.
● SB: Springback correction for C axis.
● ACT: Current program for X, C axes.
● DTG: Distance to go for X, C axes.
● PD: Pressure die status (in or out position).

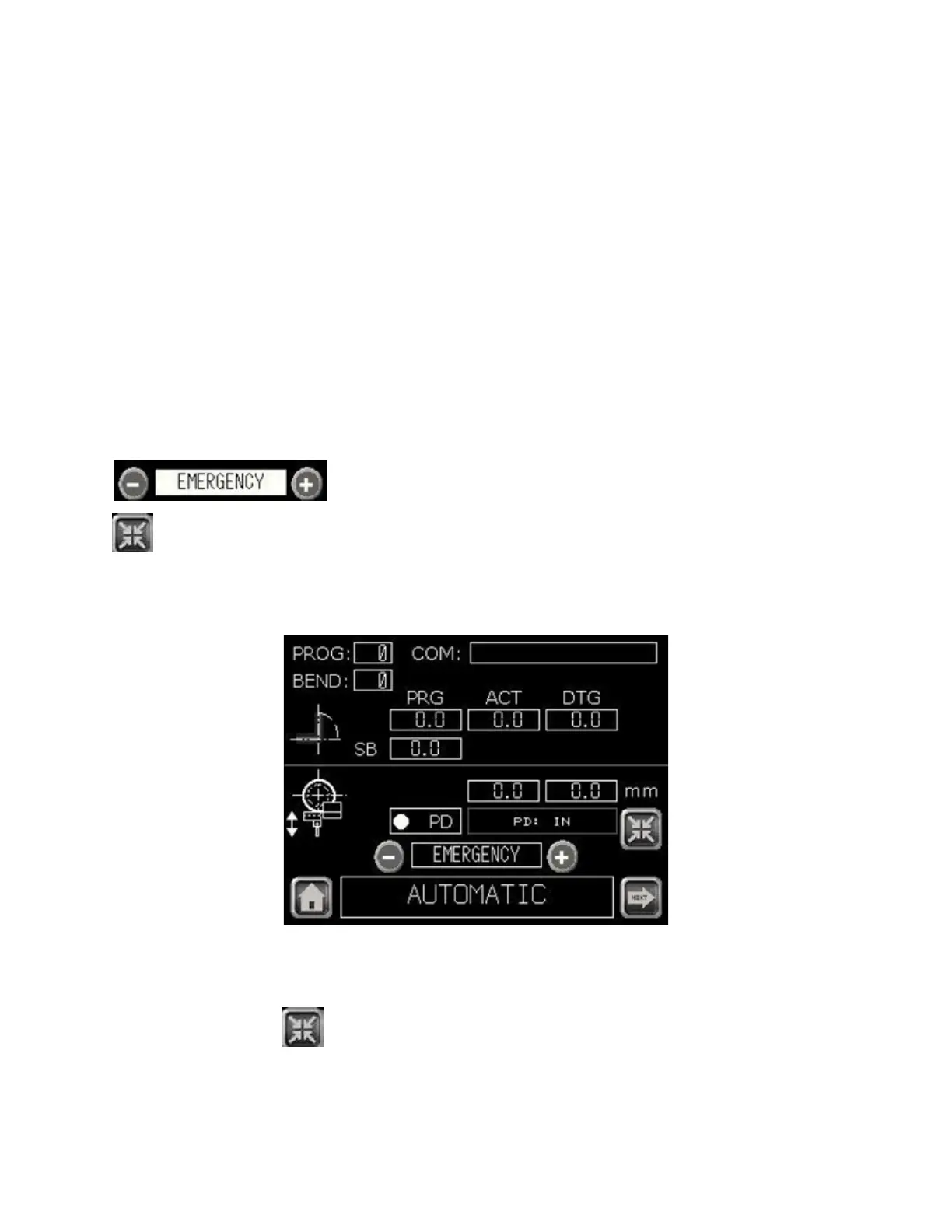

Hand-held control display
5 - Reset pressure die current position
In Automatic mode the machine will perform only the program displayed on the screen. To change
programs, refer to page 38 of this manual.
Automatic menu
When using pressure die encoder in Automatic mode, pressure die position must be set to "0" for
machine to operate.
To set "0" position press
03/2015TB100/TB130
