MINI-LINK BAS 8-4
Technical Description EN/LZB 111 0542 P2B
8.2.2 RAU
The RAU has a waterproof casing, with a handle for lifting and
hoisting. It fits on the back of the integrated antenna unit, where it is
connected to its RF-port.

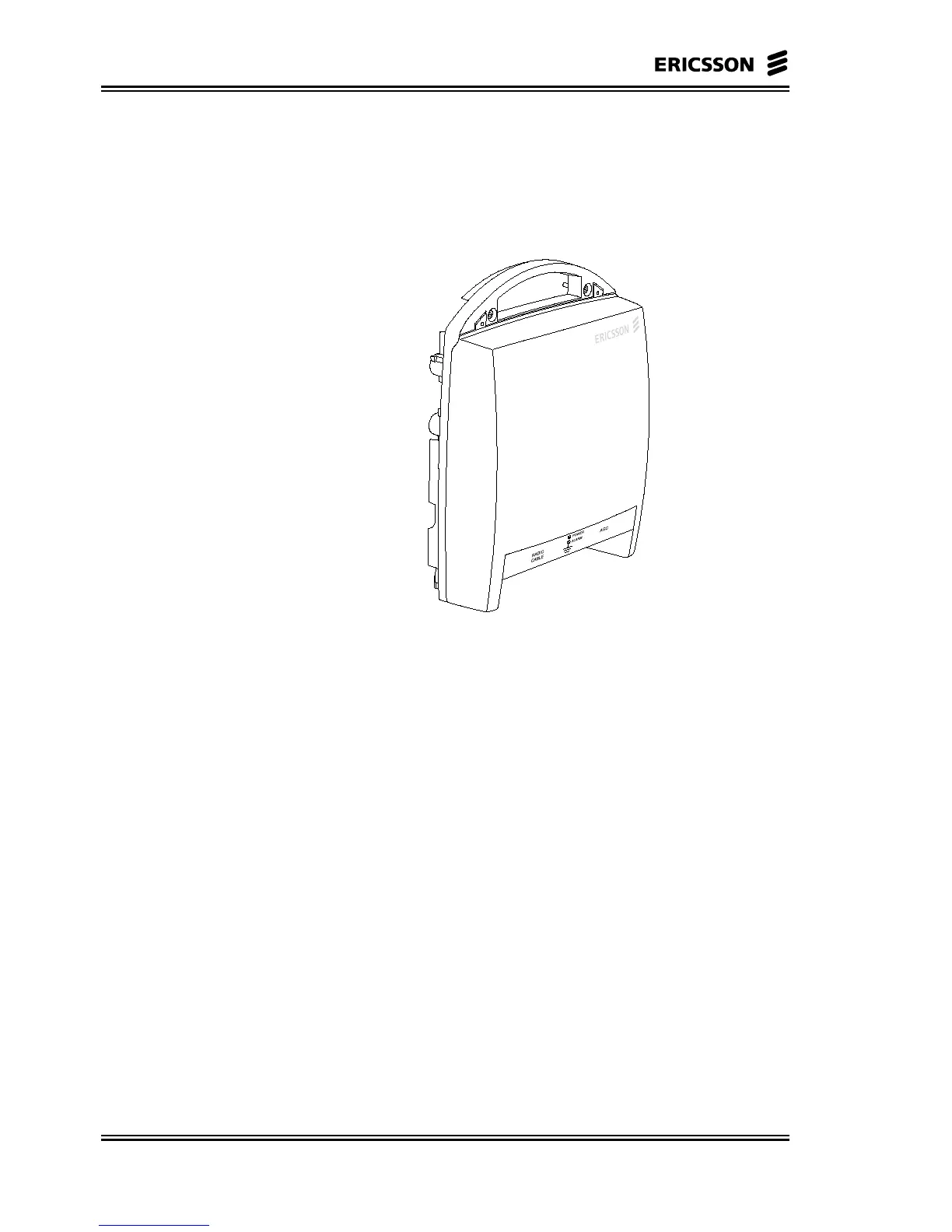

Figure 8-2 RAU
RAU dimensions are 260x321x97 (WxHxD), with a weight of 7 kg.
The RAU has two connectors on the bottom:
• N-female connector for the coax cable carrying DC supply and
I/F signals from NCU/AT;
• An alignment port used for RAU installation used for ATs or in
point-to-point configuration only.
The RF port is a 154 IEC-UBR260 waveguide.
The radio can be fitted either directly on the antenna or separately and
the connection to indoor units is through a single coaxial cable.
