8-5 MINI-LINK BAS
EN/LZB 111 0542 P2B Technical Description

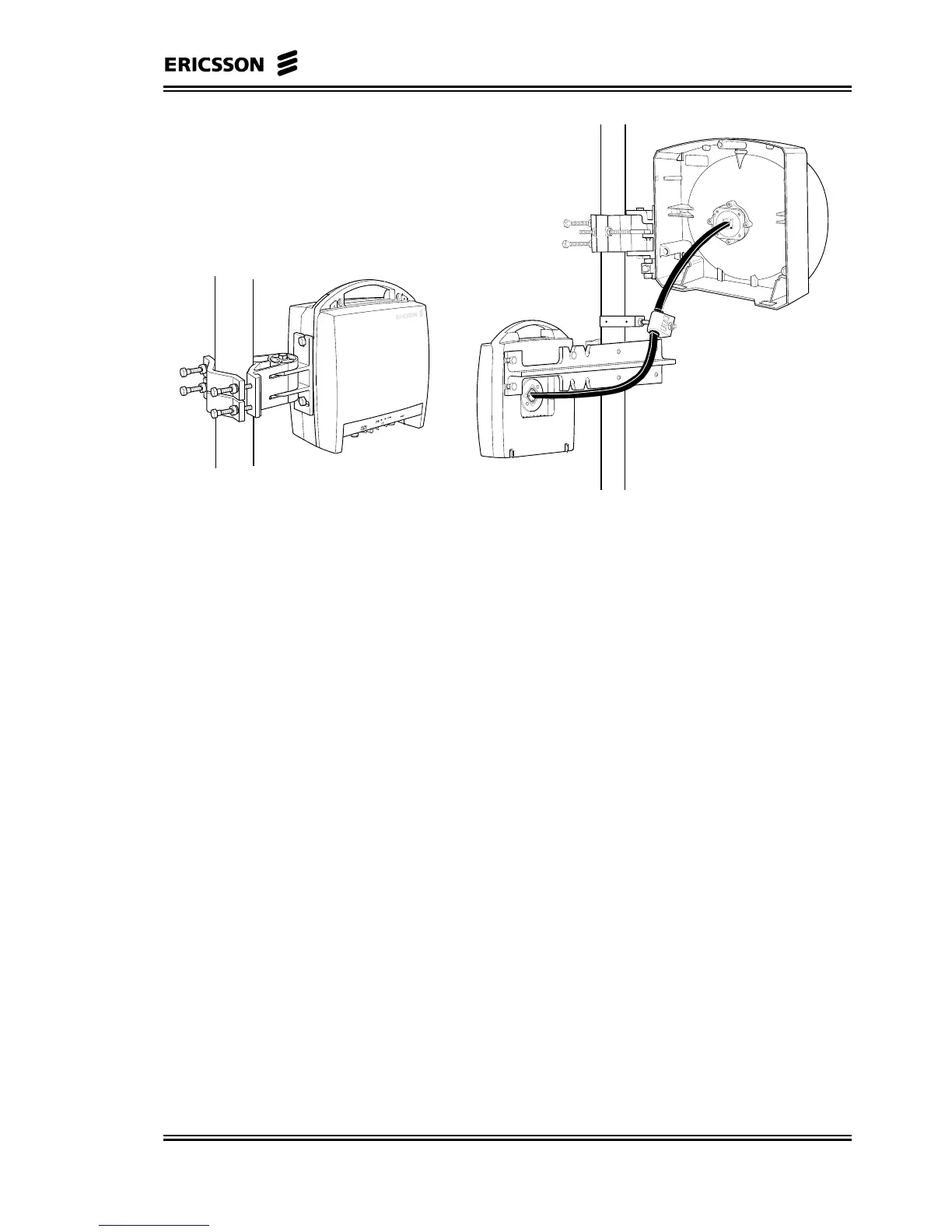

Figure 8-3 RAU Fitted Directly and Separately to the Antenna
8.2.3 Antenna
Two types of antenna are available: one for the RN to Multi AT
Connection, Point-to-Multipoint, and the other for RN to single AT
Connection, Point-to-Point.
The RAU is fitted directly to this antenna by default; the separate
installation is possible through a flexible waveguide connected to the
RAU.
8.2.3.1 Antenna for Point-to-Multipoint Connection
The antenna for point-to-multipoint connection is a sector antenna,
highly directive in elevation. It is made of aluminium, and has an
integrated radome. It is available in horizontal or vertical polarisation.
