MINI-LINK BAS 8-6
Technical Description EN/LZB 111 0542 P2B

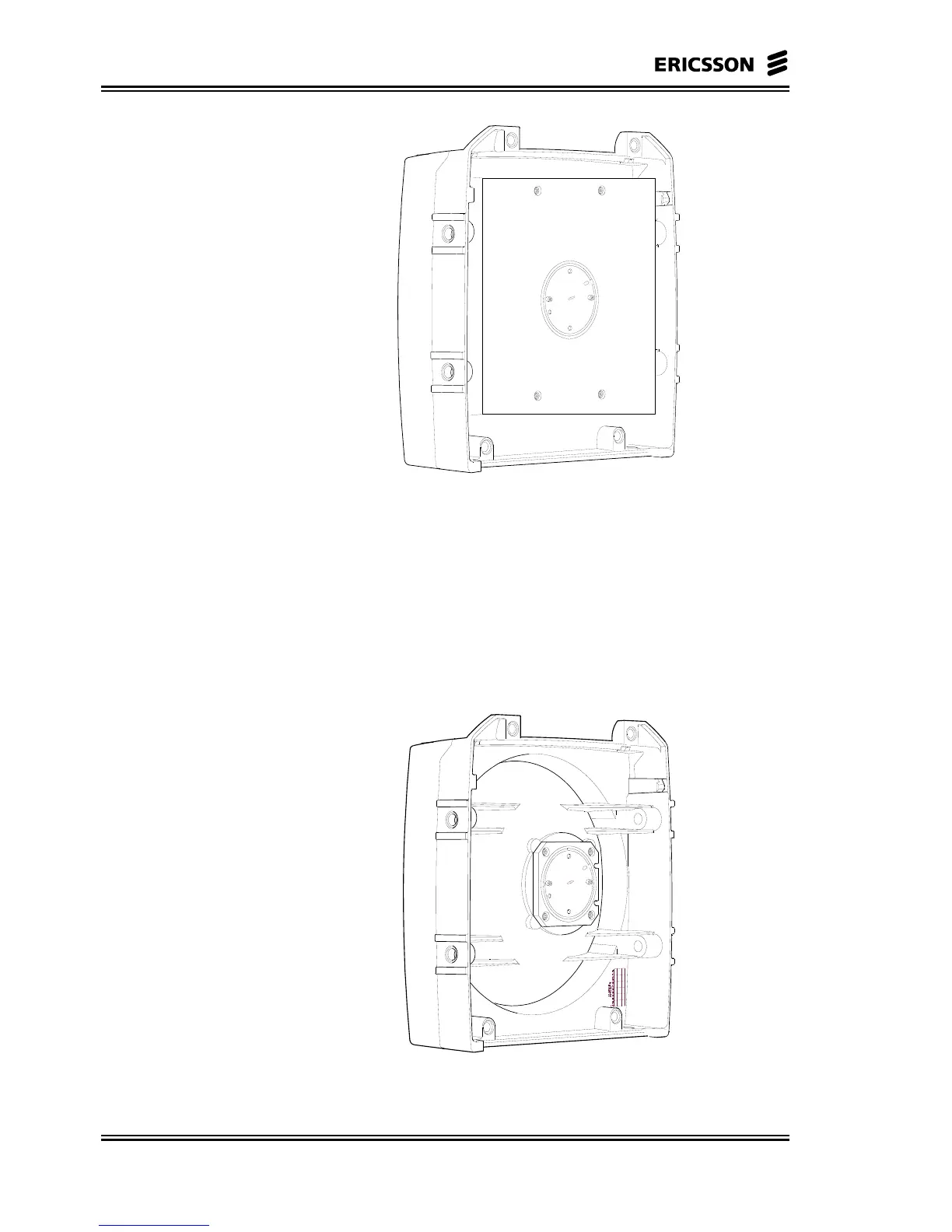

Figure 8-4 Point-to-Multipoint Antenna
8.2.3.2 Antenna for Point-to-Point Connection
The standard compact antenna module, for point-to-point connections,
is a 0.24 m high performance compact antenna of reflector type. It has
an integrated radome and it is made of aluminium, painted in light
grey.
Figure 8-5 Standard Compact Directive Antenna
