MINI-LINK BAS 2-4
Technical Description EN/LZB 111 0542 P2B
2.2 System Components
The MINI-LINK BAS consists of the following components:
1. AT
− In Door Unit (IDU): FlexNU
− Out Door Unit (ODU): Radio and antenna
2. RNs
− Indoor NCU
− ODU: Radio and antenna
3. C-AAS
4. Control and management
− CP
− EM
RNs are housed in R-AAS. A Radio Hub site can contain one or more
RNs plugged into one or more R-AASs. The multiple shelves can be
co-located or remote from each other.
EM
CP
ATM
Backbone
Server
Nodes &
Router
Element Manager Service
Configuration, Fault and
Perfomance Management
C-AAS
(CE Shelf)
R-AAS
FlexNU
ATs
FlexNU

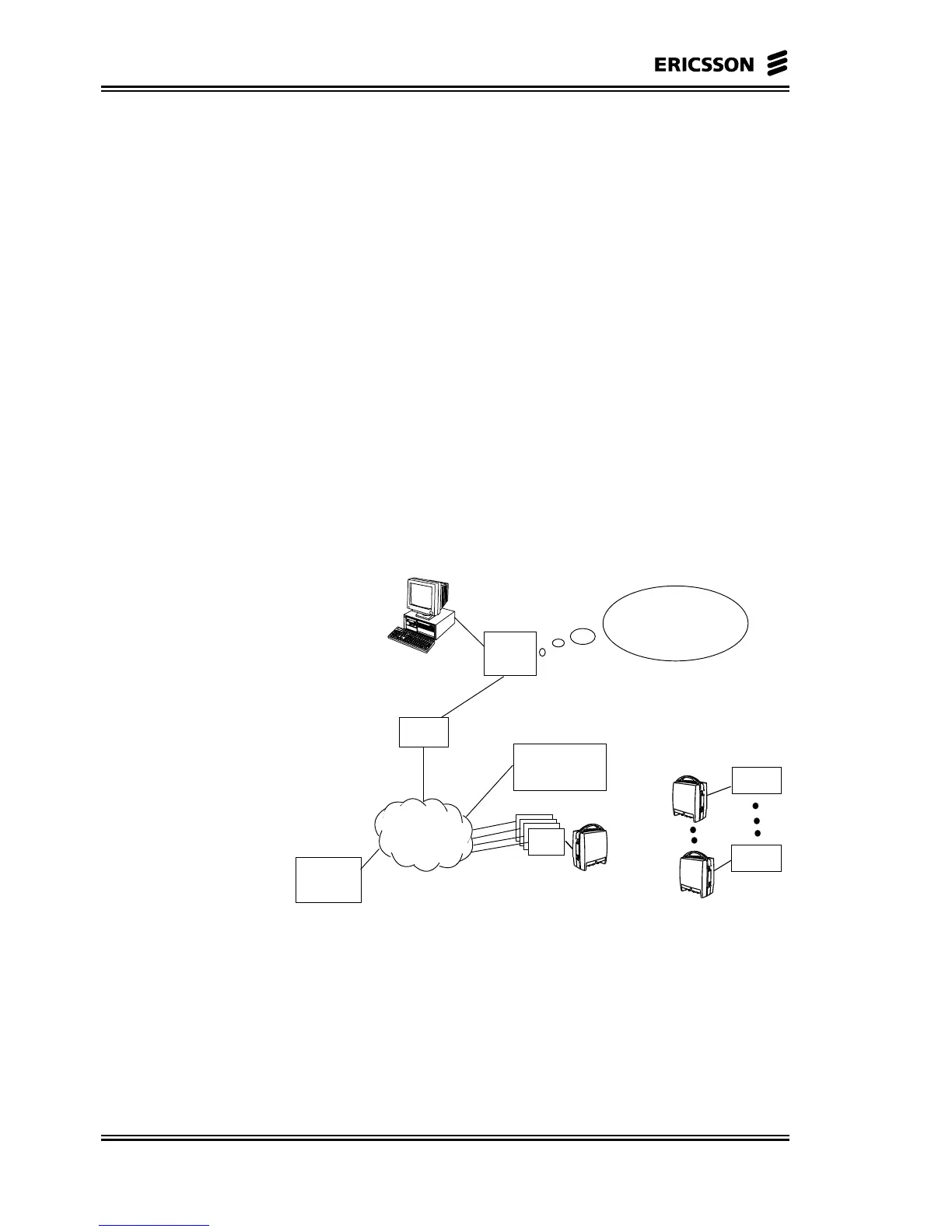

Figure 2-1 MINI-LINK BAS Generic Network
