8-17 MINI-LINK BAS
EN/LZB 111 0542 P2B Technical Description
Base cabinet
with doors and covers

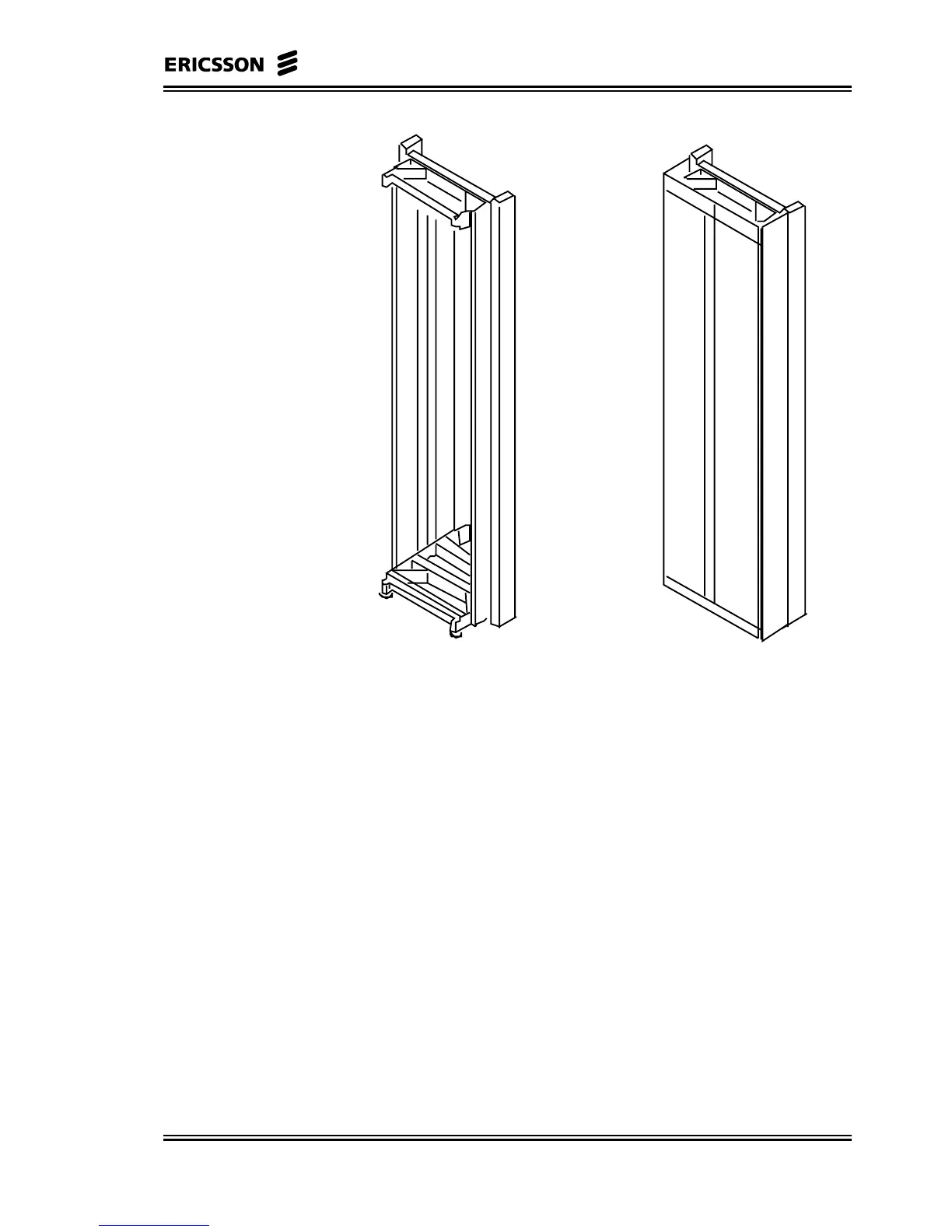

Figure 8-13 BYB 501 Cabinet
For the AT site or for the Hub site, if only the R-AAS shelf is present,
the cabinet BYB 502 can be used.
BYB 502 standard dimensions are 400x600x400 mm, HxWxD. Up to
five cabinets can be stacked and bolted together on a mounting base,
height = 85 mm, and with a cover plate, height = 15 mm. In the Figure
8-14, for example, two cabinets are stacked and bolted together.
