ESAB ESP-101 - Primary Input Connections

22
SECTION 3 INSTALLATION
3.5 Primary Input Connections
The ESP-101 460V consoles are equipped
with approximately 15 ft. of 4-conductor
input power cable for 3 phase connection.
See specication section or rating plate.
STANDARD UNITS
(NON-CE)
CE UNITS
(EUROPE)
PHASE 3 PHASE 3
L1 Black L1 Brown
L2 Red L2 Black
L3 White L3 Gray
GND Green GND Green/Yel
ELECTRIC SHOCK CAN KILL! PRECAUTIONARY MEASURES SHOULD
BE TAKEN TO PROVIDE MAXIMUM PROTECTION AGAINST ELECTRI
CAL SHOCK. BE SURE THAT ALL POWER IS OFF BY OPENING THE LINE
WALL DISCONNECT SWITCH AND BY UNPLUGGING THE POWER
CORD TO THE UNIT WHEN CONNECTIONS ARE MADE INSIDE OF THE
POWER SOURCE.
CUSTOMER FUSED LINE DISCONNECT SWITCH
(See Table 3-1)
PRIMARY INPUT
POWER CABLE

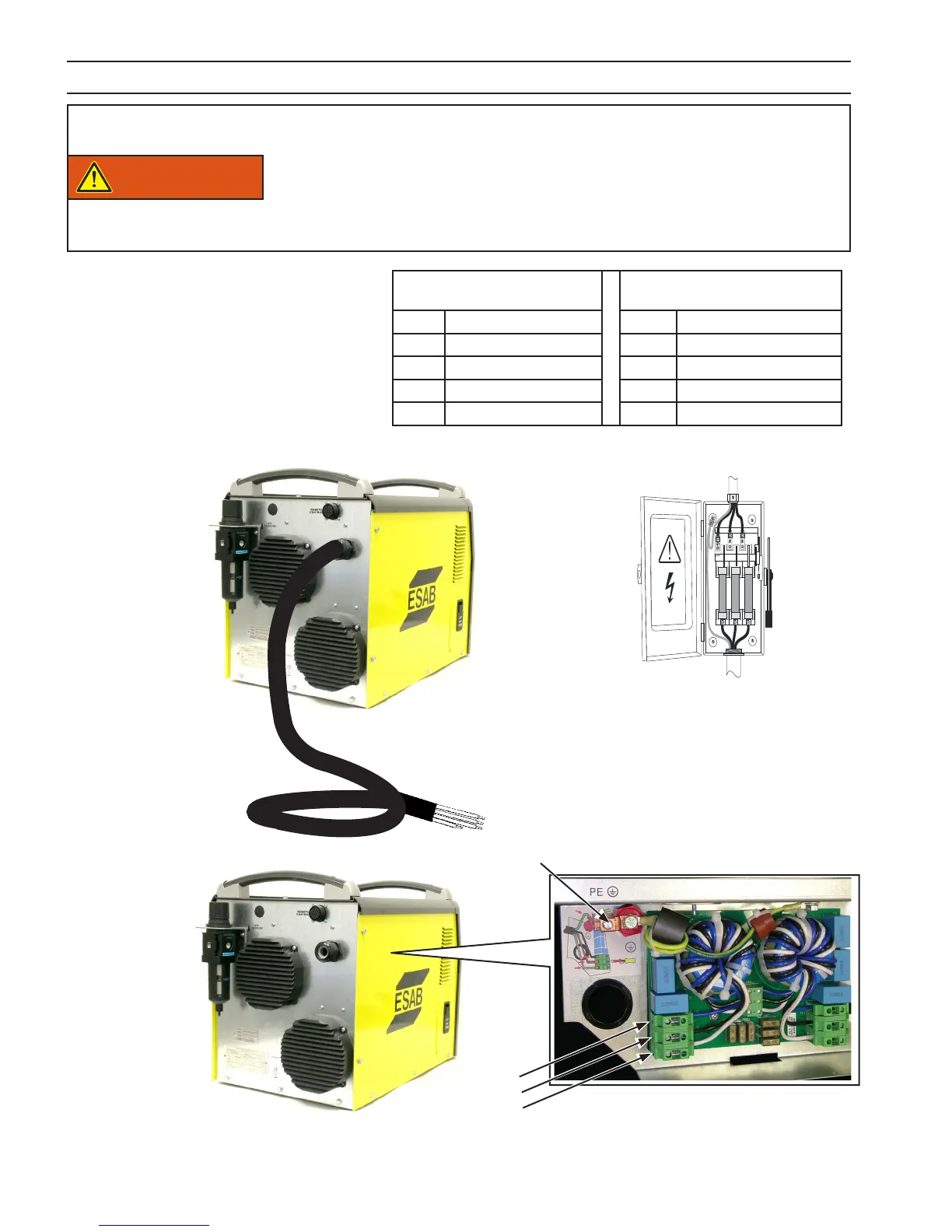

Figure 3-1. Input Connections
A. 460V
B. 380-400V
L1
L2
L3
GND
WARNING
