SECTION 3 INSTALLATION
The Remote Junction Box (RJB) provides a means to extend the total length of the PT-37 Torch. A Remote Junction Box is
used in combination with 50’, 75' or 100’ extension cable and any standard length of PT-37 Plasma Torch from 4.5’ to 50’, to
create a combined maximum torch length of 150 feet.
Installation of a Remote Junction Box requires minor modications to the ESP-101 power supply, mounting of the box itself,
and connection of the extension cable. Use the diagram and steps below for installation.
3.10 Remote Junction Box Installation

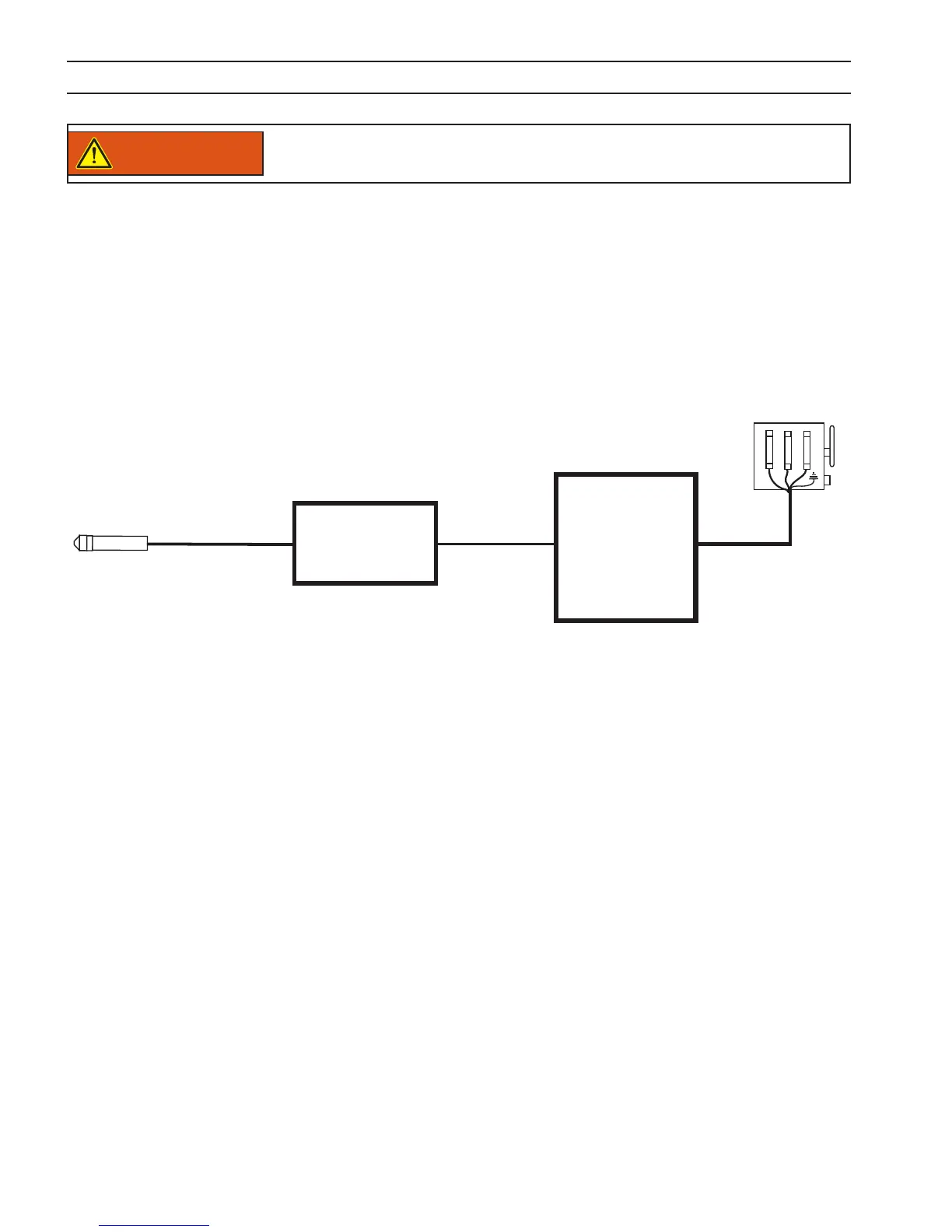

Figure 3-7. Connection Diagram for Remote Junction Box
Extension Cable
50’, 75', 100’
3-phase w/
ground
ESP-101
Remote
Junction
Box
PT-37 Torch
4.5’, 17', 25', 50’
Note:
See section 2.6 System and Optional Accessories for Remote
Junction Box and Extension Cable ordering information.
MAKE SURE POWER SWITCH ON CONSOLE IS IN OFF POSITION AND
PRIMARY INPUT POWER IS DEENERGIZED.
WARNING
