SECTION 7 REPLACEMENT PARTS

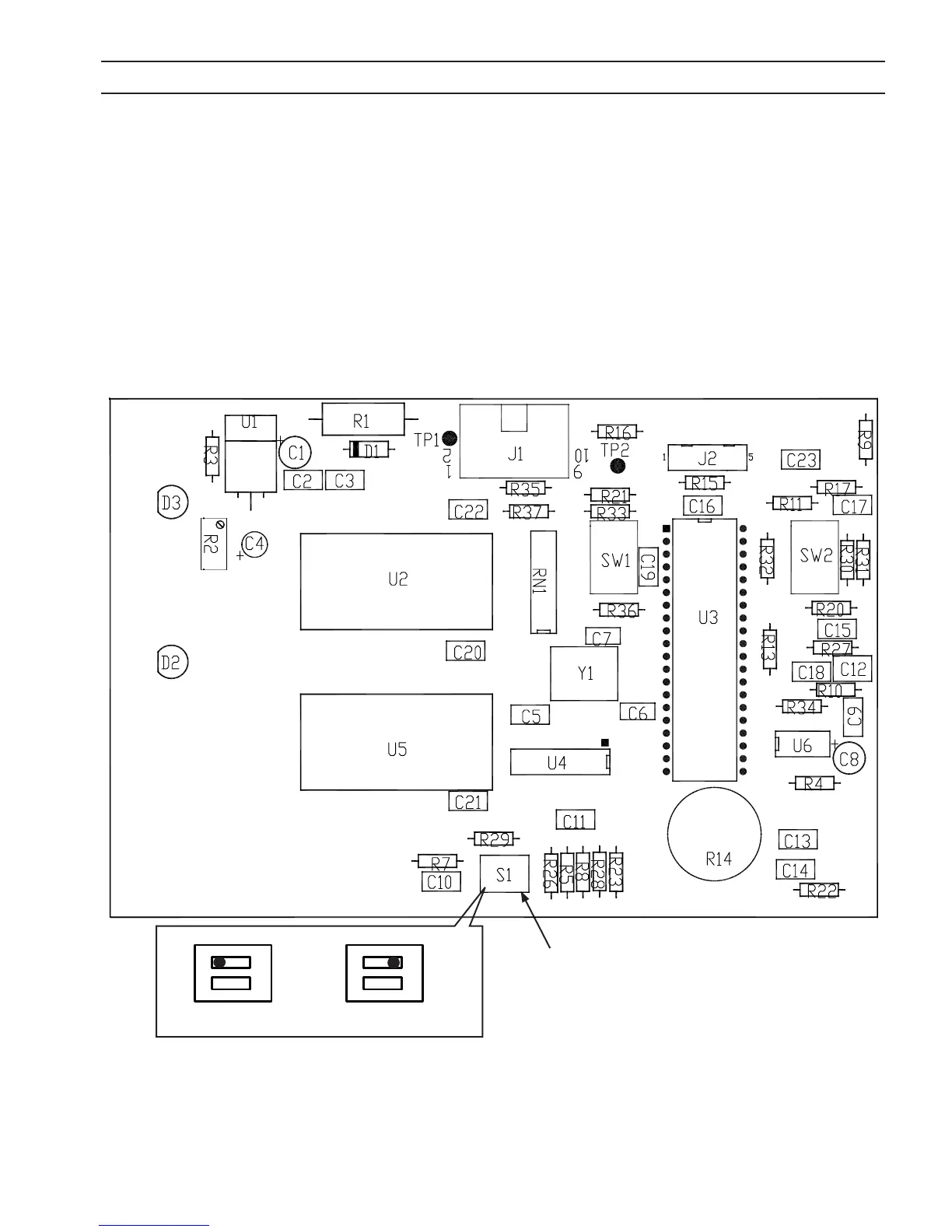

DISPLAY BOARD ASSEMBLY
P/N 0558038297
1. Set S1-2 dip switch for desired air pressure units of measure.
• PSI - “OPEN”
• BAR - Not Open
2. S1-1 is not used.
S1-1,2
open
1 2
7.4 Selecting Air Pressure Units of Measure
7.5 Display Board Assembly
open
1 2
PSI
open
1 2
BAR
