ESAB ESP-101 - Cut Quality, Dross, and Common Issues

41
4.4 Stando and Cut Quality
Stando (Arc Voltage) has a direct inuence on cut quality and squareness. It is recommended that prior to
cutting, that all cutting parameters are set to the manufacturer’s suggested conditions. Refer to the Operation
section Process Data in the torch manual for recommendations. A sample cut should be made using actual part
material followed by close examination of the part.
If the cut face of the part has excessive bevel or rounded top edge, it may be that the stando is set too high.
When stando is controlled by an arc voltage height control, reducing the arc voltage setting will reduce the
stando.
Lower the stando until the excessive bevel or rounded top edge disappears. Note that on material thicknesses
of 1/4" (6.4 mm) or greater, a stando too close may result in a negative cut angle.
Bottom dimension “B” is less
than dimension “A”
NEGATIVE (-) CUT ANGLE
Bottom dimension “B” is
greater than dimension “A”
POSITIVE (+) CUT ANGLE
A
B
A
B
LAG LINES
ARC
VOLTAGE
STANDOFF

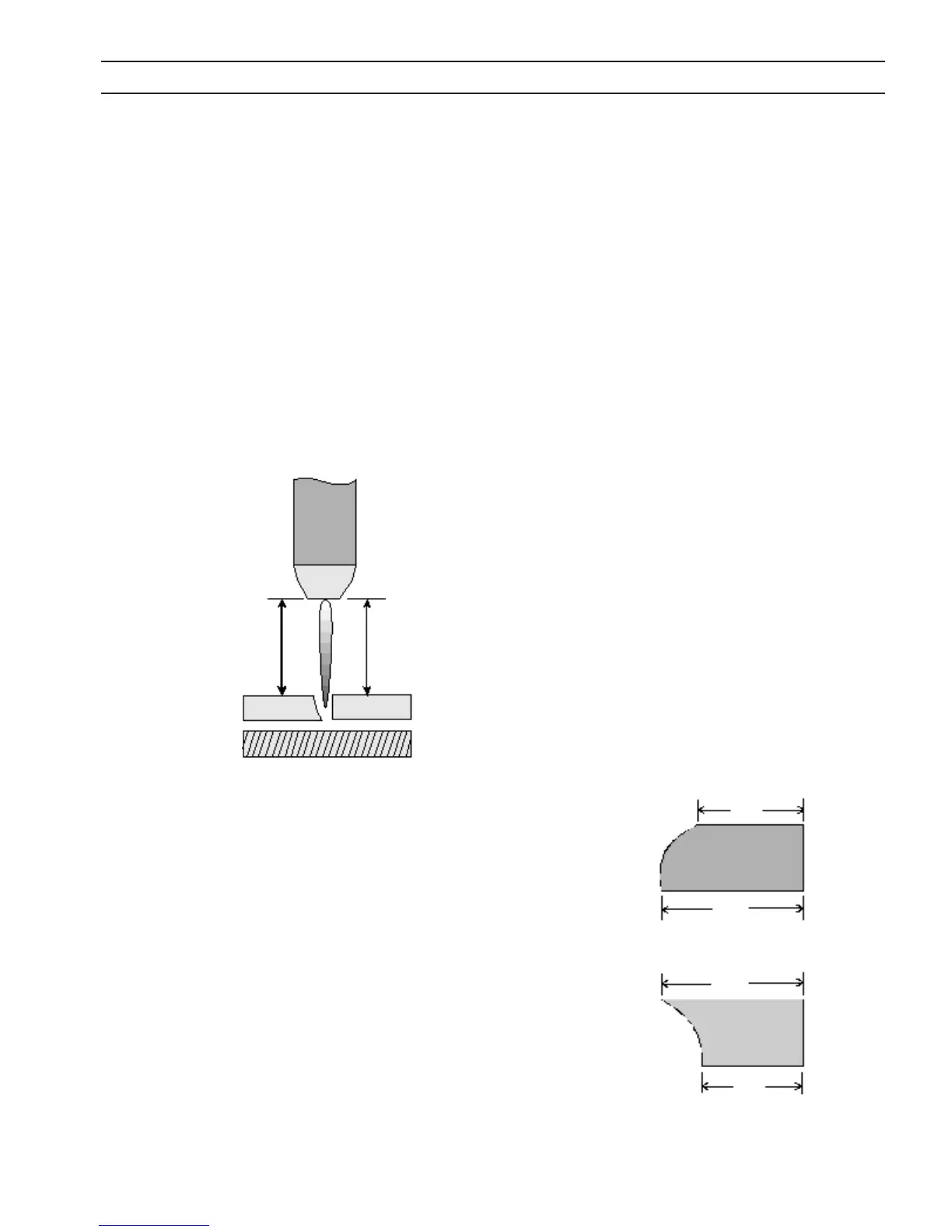

Figure 4-4. Cut Quality
Figure 4-5. Cut Angle
SECTION 4 OPERATION
