SECTION 3 INSTALLATION
Torch Cable Male Receptacle
Panel Receptacle
Torch Lead Access Door
Air Hose
Torch Lead Access Opening
1. Open lead access door on the left side of the ESP-101.
2. Route the torch cable through the access opening on the
front of the console.
3. Connect the torch cable receptacle to the panel receptacle.
Check orientation of the sockets to ensure a correct t.
4. Connect the air hose to the quick-connect tting.
5. Insert work cable plug into work cable socket on the front of
the console and turn clockwise until secure.
6. Close the Torch Lead access door.
Torch Cable Male Receptacle

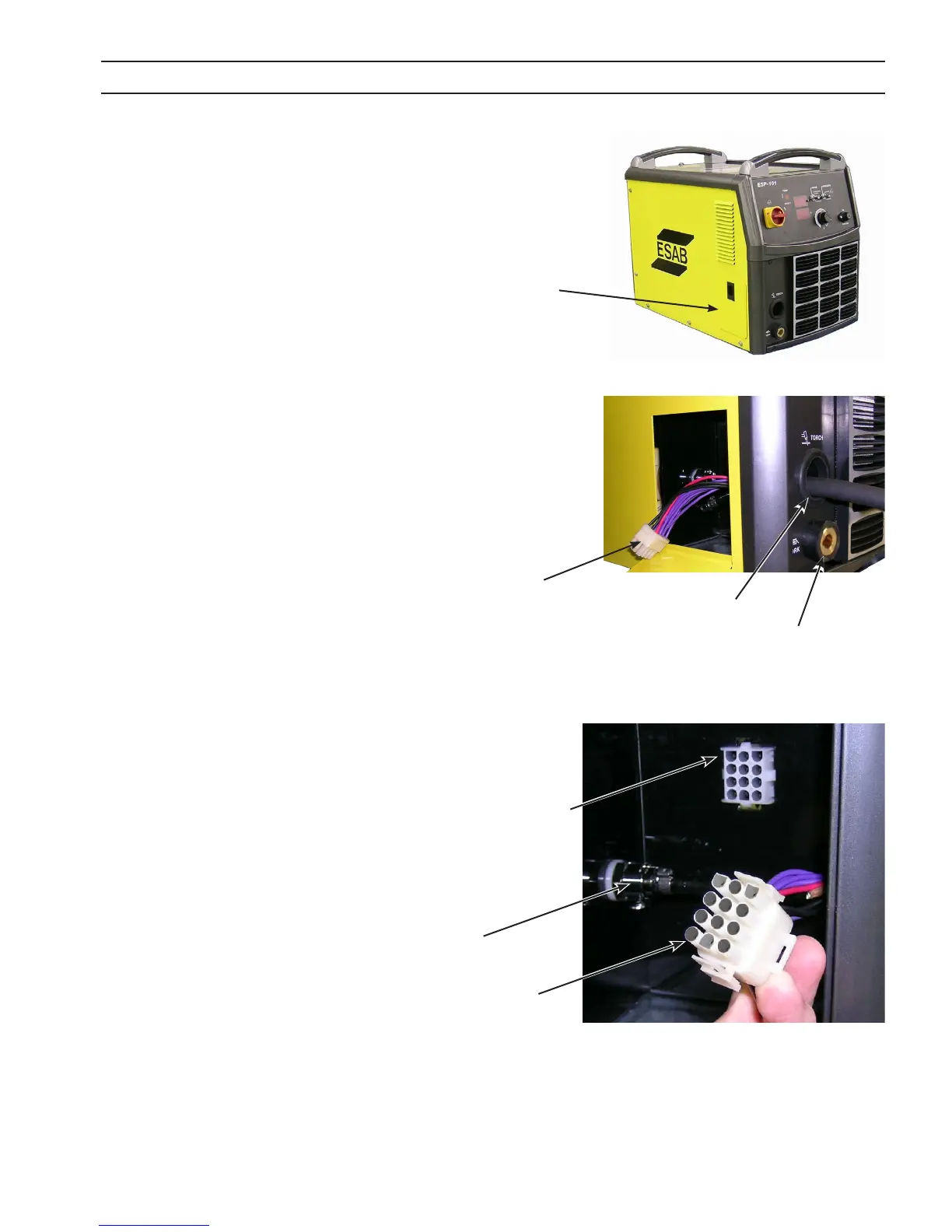

3.9 PT-37 Torch Installation
Work Cable Socket
