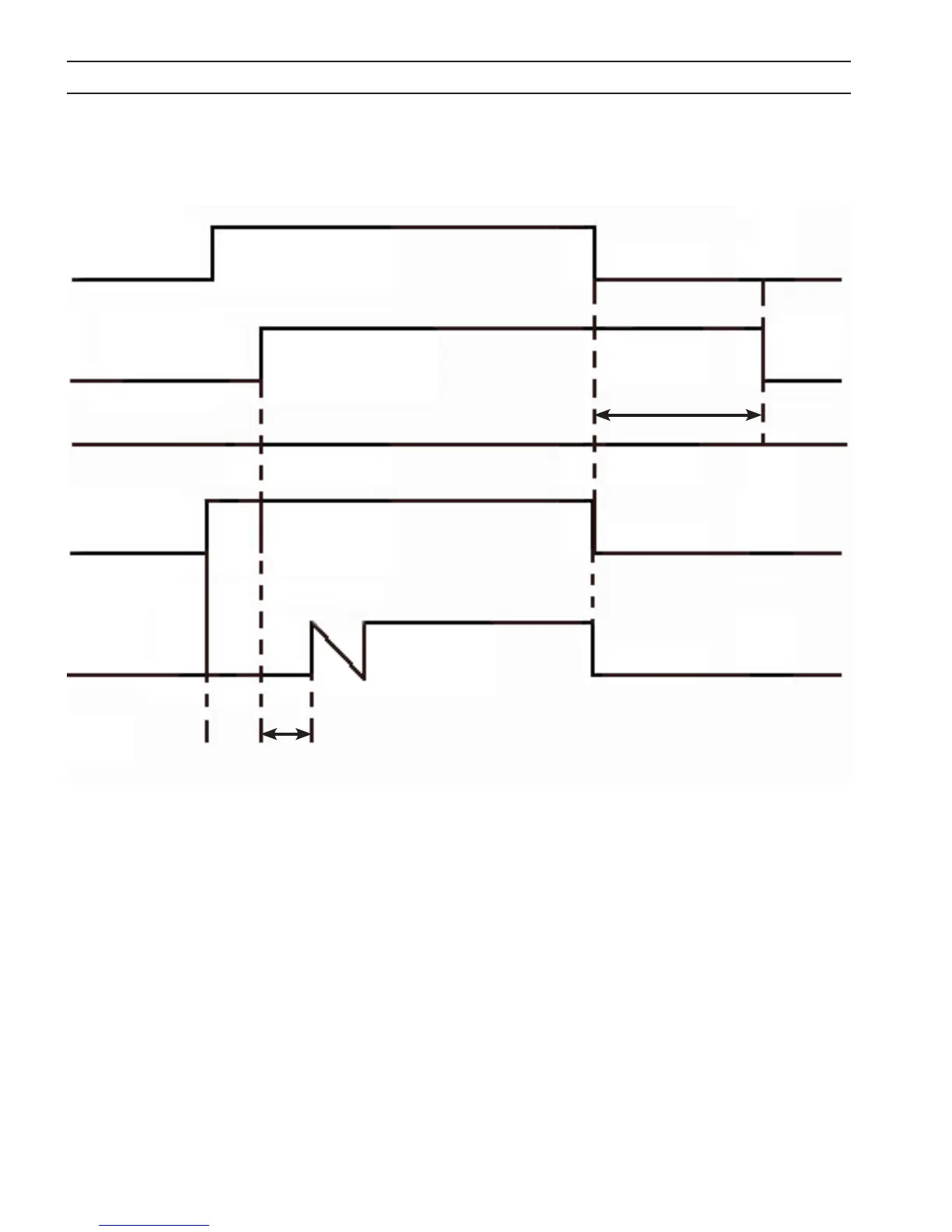

6.6 Sequence of Operation
NOTES:
1. When the start signal is turned "on" during post ow period, the machine will start the process without a preow
period.
2. If the amber fault light comes on, cutting operation will be terminated. The post ow time starts from the moment
the start signal is removed.
30 SEC
START SIGNAL
GAS SOLENOID VALVE
PILOT ARC
ON
FAULT LIGHT
INVERTER
CUTTING ARC
POST FLOW
SECTION 6 TROUBLESHOOTING
OFF
