ESAB ESP-101 - Input Air Connection

26
SECTION 3 INSTALLATION

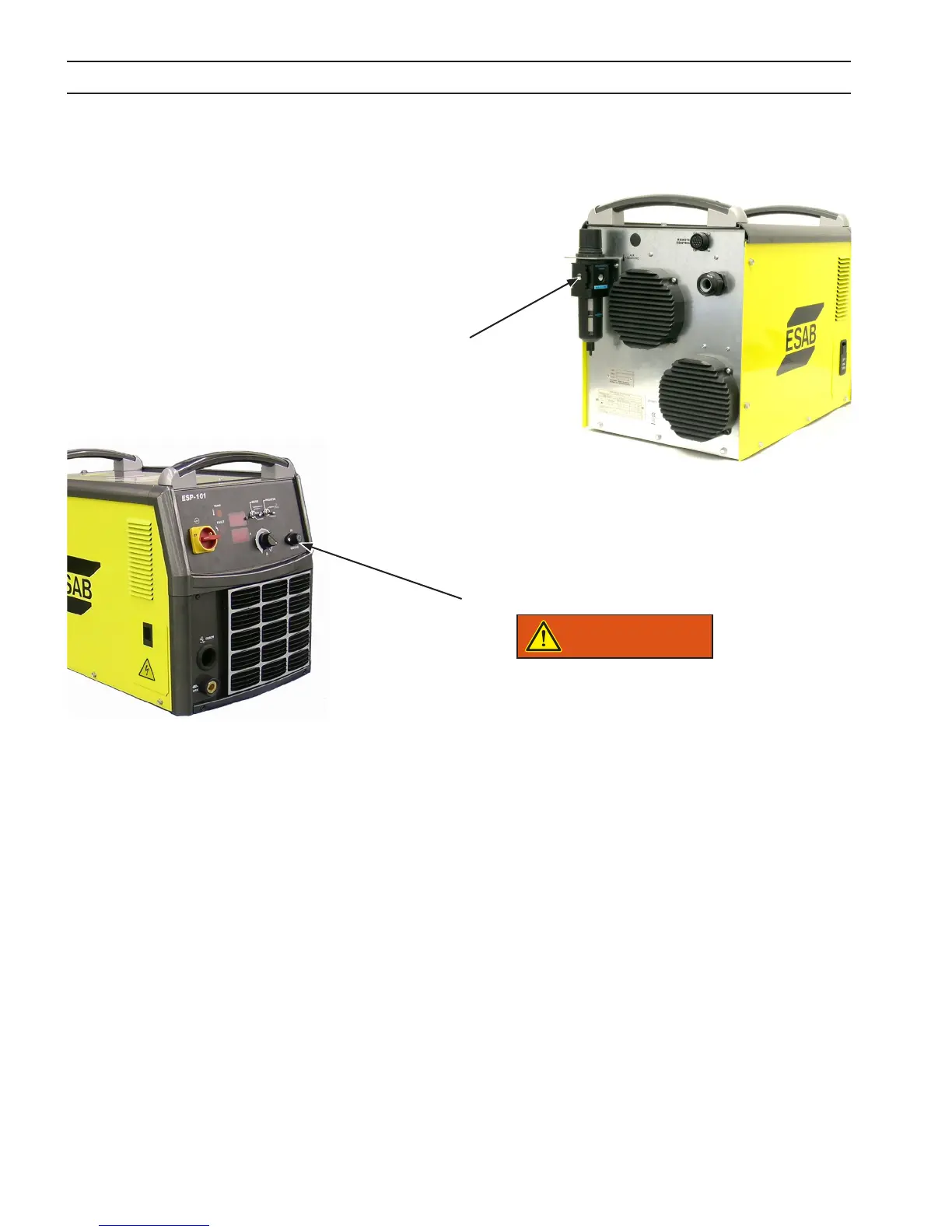

Figure 3-4. Input Connections / Fuse Replacement
Connect your air supply to the inlet connection of the lter/regulator.
3.5.2 Input Air Connection
Replace fuse with Slo-Blo, 2 Amp, 600 V only
MAKE SURE THE POWER SOURCE IS
SWITCHED OFF BEFORE REMOVING FUSE.
Pre-ltered DRY AIR SUPPLY (Customer Supplied)
(90 - 150 psi / 6.2 - 10.3 bars)
WARNING
