Esser FACP 8000C - Possible Operating Modes and Terminal Assignment

Page 124
Fire Alarm Computer 8000C
The following modes are possible:
1. Fire detector zone for connecting special fire detectors and manual call points with or without
switch-on control (ESK)
2. EDD diagnostic detector zone for connecting addressable fire detectors with individual detector
addressing and disconnection facility
3. Non-addressable TAL zones for connecting technical alarm modules
4. Addressable TAL zones configured in diagnostic detection technology for connecting technical
alarm modules
Terminal card assignment
The detector zone number (1 to 4) corresponds to the numbering on the 4-zone module. The
consecutive detector zone numbering of the fire alarm control panel is defined in the customer
data programmed with the service PC.
VdS
One zone may include a maximum of 32 automatic or 10 non-automatic fire detectors. All
detectors of one zone must be used in the same mode. Automatic and non-automatic fire
detectors should be connected to different zones. VdS guidelines do not allow mixed
mode operation!
Works delivery
On initial works delivery of the fire alarm control panel, the installed 4-zone BM modules are not
programmed in the customer data and are therefore not fitted with terminating resistors.
Zone assignment and operating mode are programmed using the service PC and Customer
Data Editor 8000C software. For each detector zone, you may enter a specific additional
text comprising 25 characters per line for output on the plaintext display and protocol
printer.

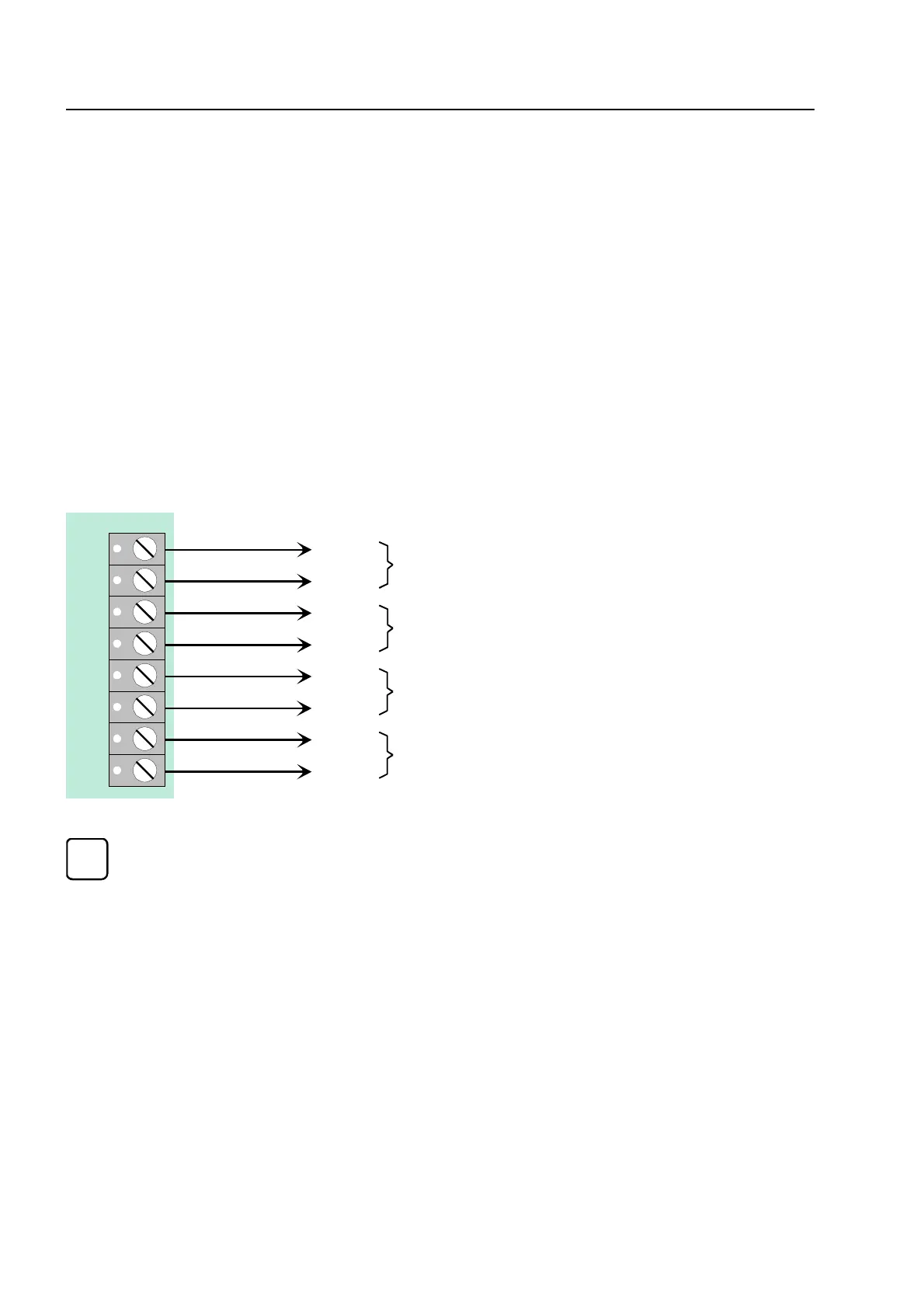

4-zone module
G1 +
G1 -
G2 +
G2 -
G3 +
G3 -
G4 +
G4 -
1
2
3
4
5
6
7
8
detector zone 1
detector zone 2
detector zone 3
detector zone 4
