Fire Alarm Computer 8000C
Page 91
10.7.3 Connecting a fire department operating panel
A fire department operating panel may be connected to terminals X4-X7. Wiring differs from area
to area and is governed by the requirements of the regional fire department.
do not use
FD call LED on (IN1 on GND) (closer)
MB disconnected acoustic signals off CHECK MB reset FACP fire control off (revision)
IN1 IN8 IN2 IN3 IN4 IN5 IN6 IN7
X4
MB activated extingguishing system activated common fire MB disconnected
OUT1 OUT8 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7
X4
MB activation prevent
do not use
do not use
acoustic signals off fire control off (revision)
bottom terminals
top terminals
bottom terminals
top terminals

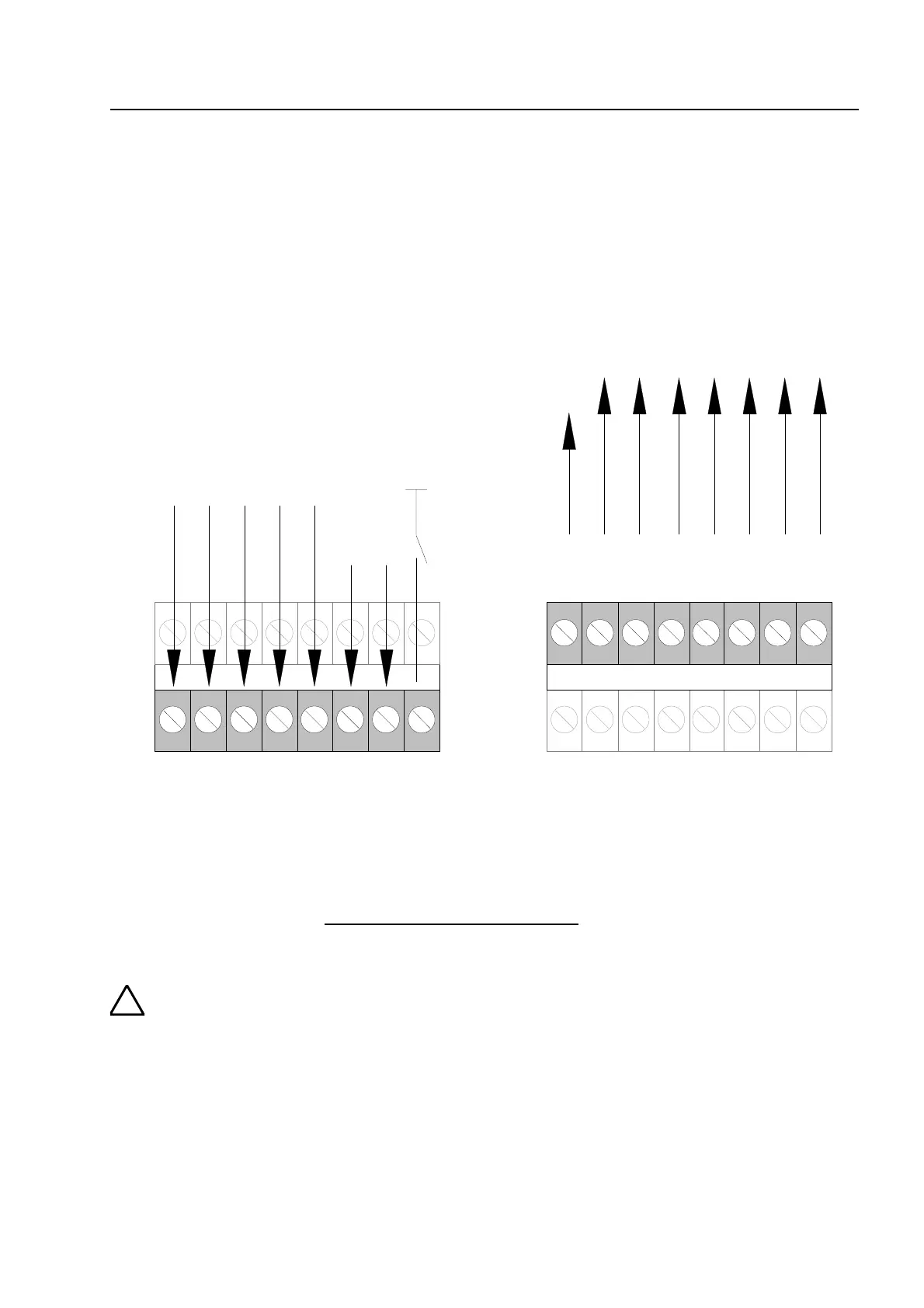

Fig. 46: Connection terminalfor the fire department operating panel
Outputs (OUT1 to OUT 8) at the fire department operating panel interface may be loaded
with a current intensity of no more than 25 mA per output.
!
If the inspection input (terminal IN8) is not used, jumper BR21 must always be fitted at
position 1-2 !
Field device module
