Esser FACP 8000C - Extension Module with Extension for One Micromodule

Fire Alarm Computer 8000C
Page 75
10.3 Extension module with extension for one micromodule
An extension module for connecting an additional micromodule can be used in a fire alarm central
unit.
When an extension module is used, it is no longer possible to connect a fire service control panel
to this FACP 8000C. If several fire alarm central units are connected with each other in the
essernet
®
, the fire service control panel and also the transmission unit can be connected to one of
the other fire alarm central units.

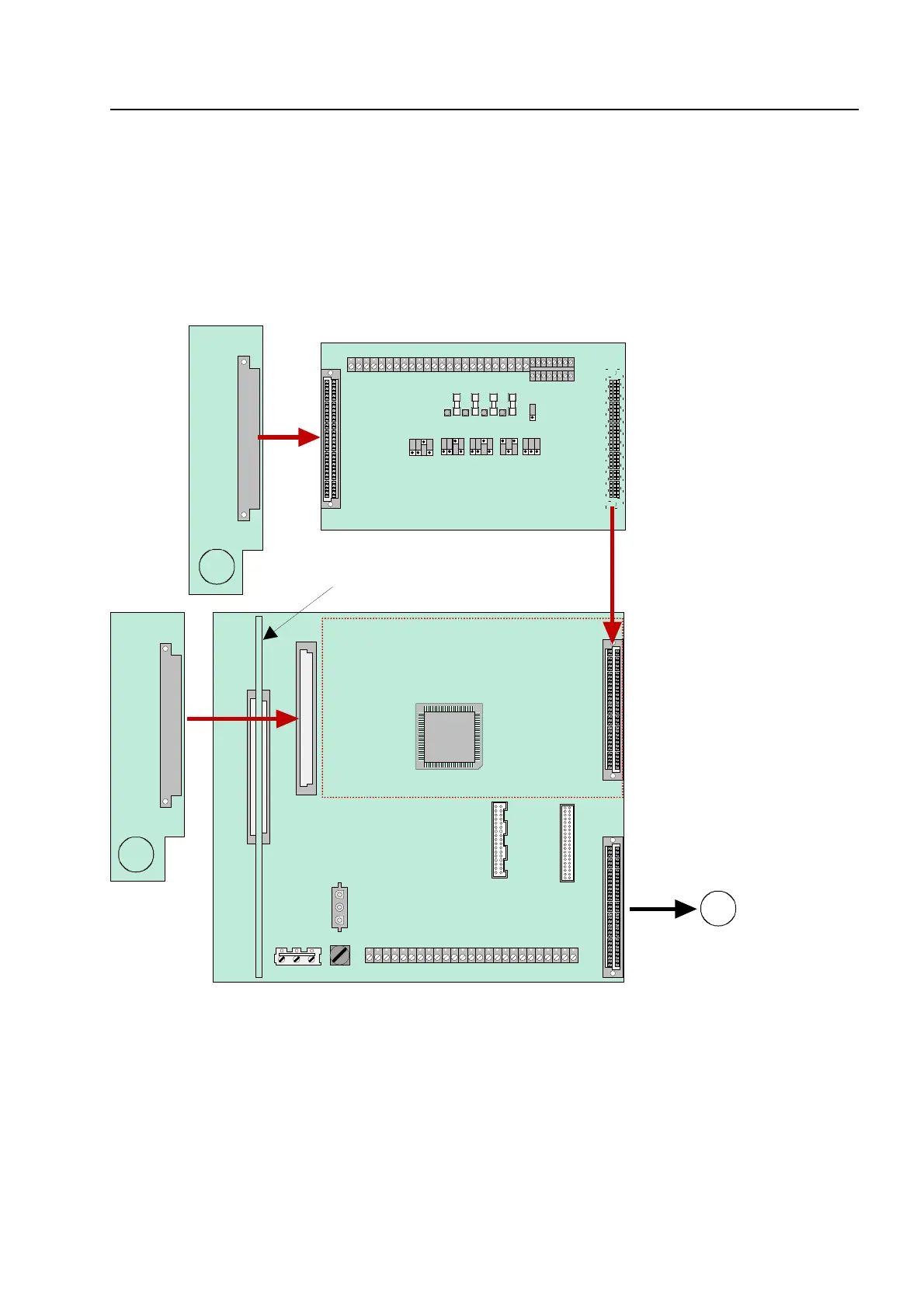

Fig. 34: FACP 8000C with extension module and two micromodule slots
The slot
ug 2
on the basic module (see illustration (A)) is without function on the FACP 8000C.
No subassembly may be attached to
g 2
.
☞
If an essernet
®
micromodule is inserted into the FACP 8000C, this module can always
only be operated on the micromodule of the slot of the basic module. Adaptation of the
connection configuration on the basic module with the jumpers X11-14 is necessary for
the essernet
®
micromodule.
Location of plug in cards
Plug 1
Plug 2
Micro module
1
2
A
Micro module
Power supply module
Basic module
Field device module
Part No. 772418
