Page 72

Fire Alarm Computer 8000C

10 Location of plug in cards

The full extension version of the FACP 8000C consists of a basic board, the power supply module

and a periperhy module with an additional micromodule slot. Two freely selectable micromodules

can be used in the full extension version. The slot

on the basic module (see Figure (A)) is

without function on the FACP 8000C. No subassembly be may be attached to

Available auxiliary modules

Item No. Description

772418 Same as Field device module772420, but with an additional slot for a micromodule

772419 Extension module with one micromodule slot

772420 Field device module

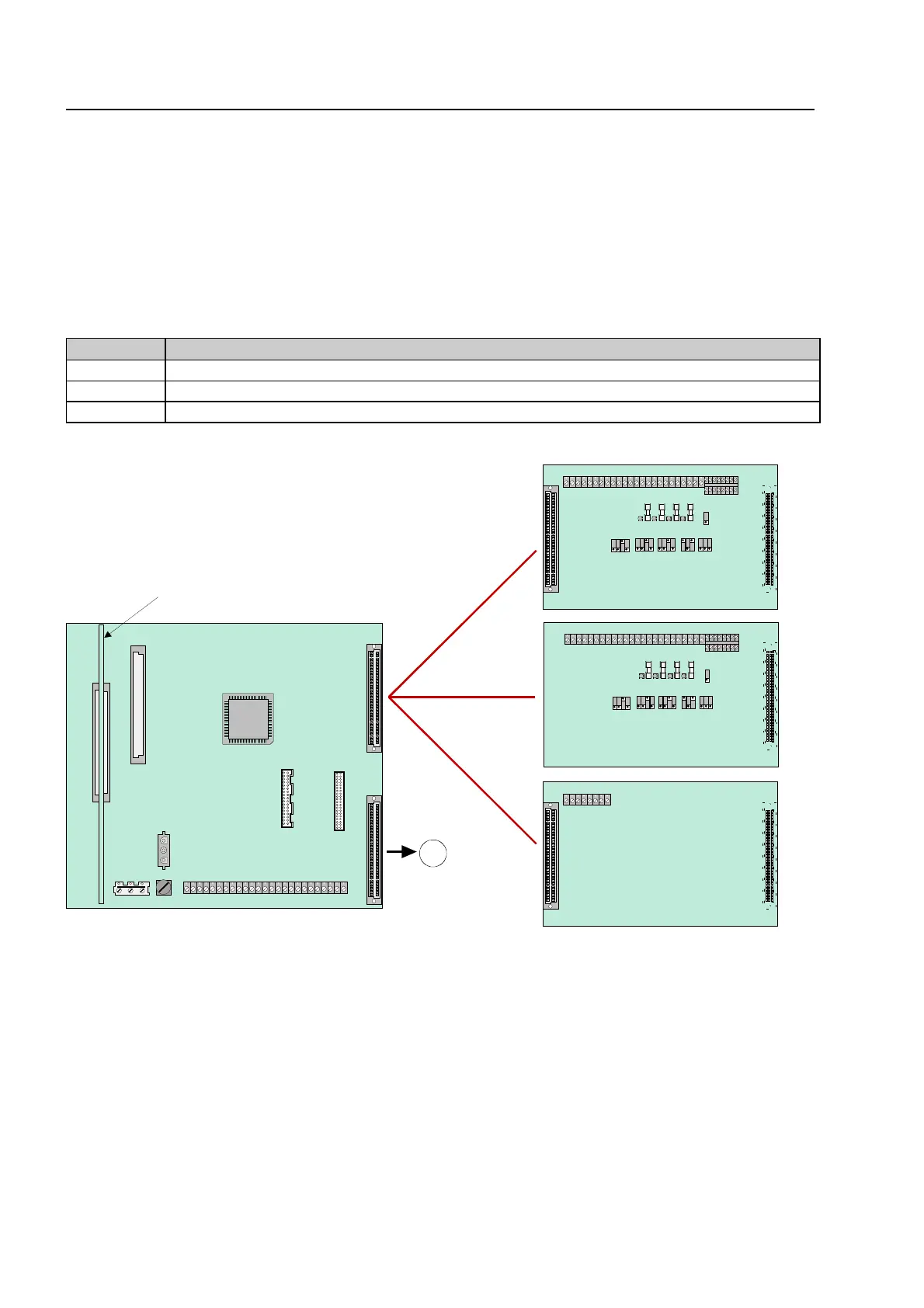

Fig. 31: Position of the plug-in boards

Additional extensions

The central unit extension can be extended as required by using additional input / output

subassemblies, the esserbus

transponders.

The esserbus

transponders can be inserted into the housing of the FACP 8000C on special

installation slots independently of the central unit’s extension. Optional plastic housings of the

protection type IP 50 are available for decentralized installation of the esserbus

transponder on

the analog ring circuit.

Location of plug in cards

Field device module

Part No. 772418

Extension module

Part No. 772419

Field device module

Part No. 772420

Basic module

Plug 1

Plug 2

Power supply module
