Esser FACP 8000C - Installer Level: Primary Loop Management; Primary Loop Functions and Numbering

Fire Alarm-Computer 8000C Pag
e 147
25.1 Installer level; Primary loop function
Primary loop function
Under this menu point, the internal primary loops of this fire alarm control panel or other fire alarm
control panels 8000C in an essernet
®
network can be switched on or off and checked by a manual
test function.
Additionally, it is possible to replace single detectors in operative analog ring loops, (e.g. during
maintenance work) without changing the Customer data programming with the service PC.
Primary loops are:
♦
the Analog ring loop module, including all connected analog detector zones and esserbus
®
transponders
all analogue ring modules included in this FACP
(including the analogue ring loop connected to this module with all bus devices)
♦
the 4-zone module, including all connected fire or diagnostic detector zones (EDD). For this
module, the menu points Detector replacement and Test are inoperative.
all four-zone-modules included in this FACP
(including all detector zones and detectors connected to this module)
♦
certain modules, such as relays or the interface on the basis/peripheral module
Primary loop definition
The four digit primary line number is determined by the slot number of the corresponding micro
module or of the module within the 8000C FACP and by the FACP number.

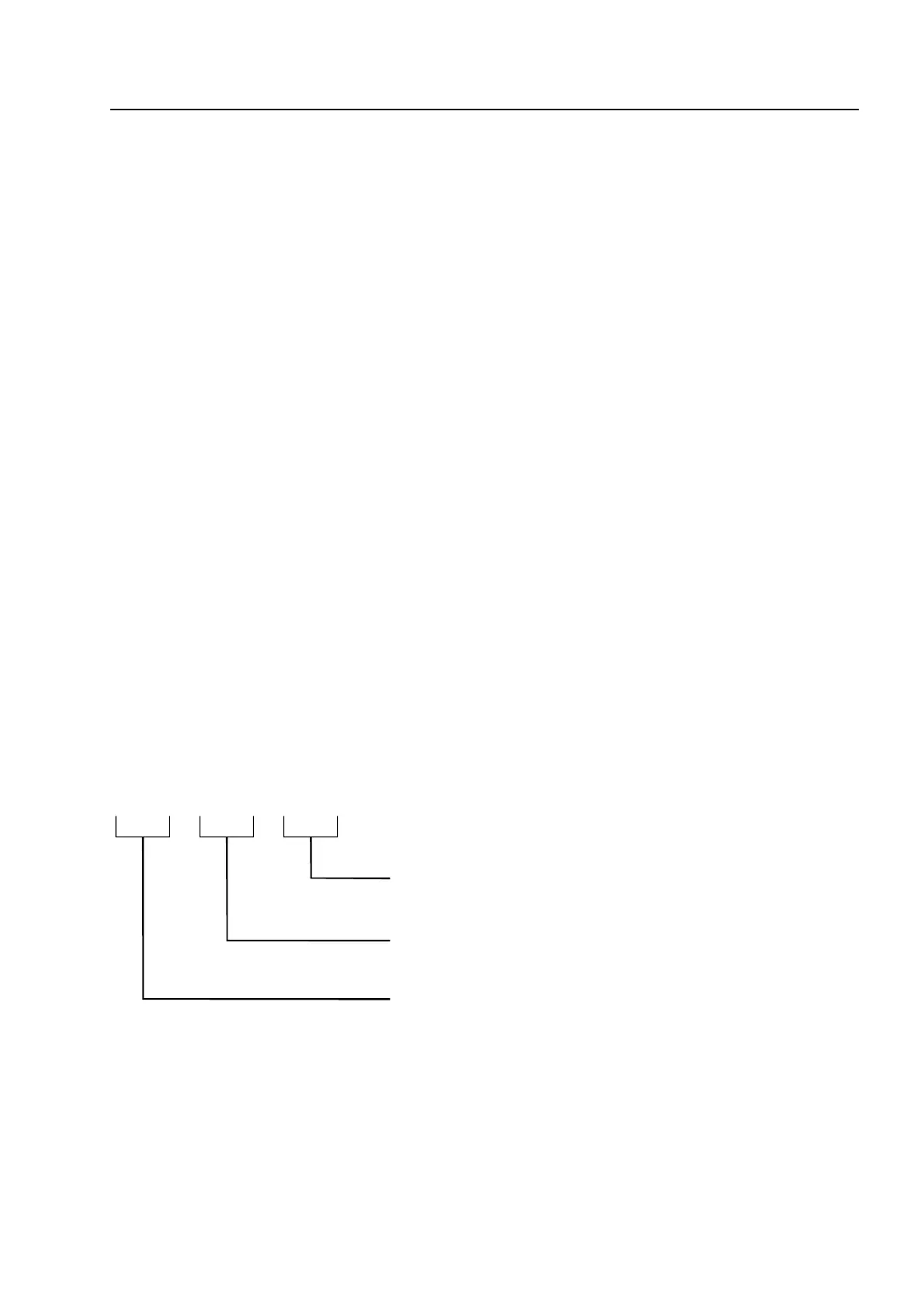

0 1 2 1
Slot number of the Basic-, Field device or Extension module
Slot number: Basicmodule = No. 1
Basicmodule
Plug 1
= No. 2
No. of the Fire Alarm Control Panel (max. 31)
Commissioning / Servicing
