Fire Alarm Computer 8000C
10.2 Field device module with micromodule slot
A Field device modulefor connecting a fire service control panel and a transmission unit can be
installed in a fire alarm central unit.
In the case of the Field device module no. 772418, a micromodule slot is also integrated for
inserting an additional micromodule.

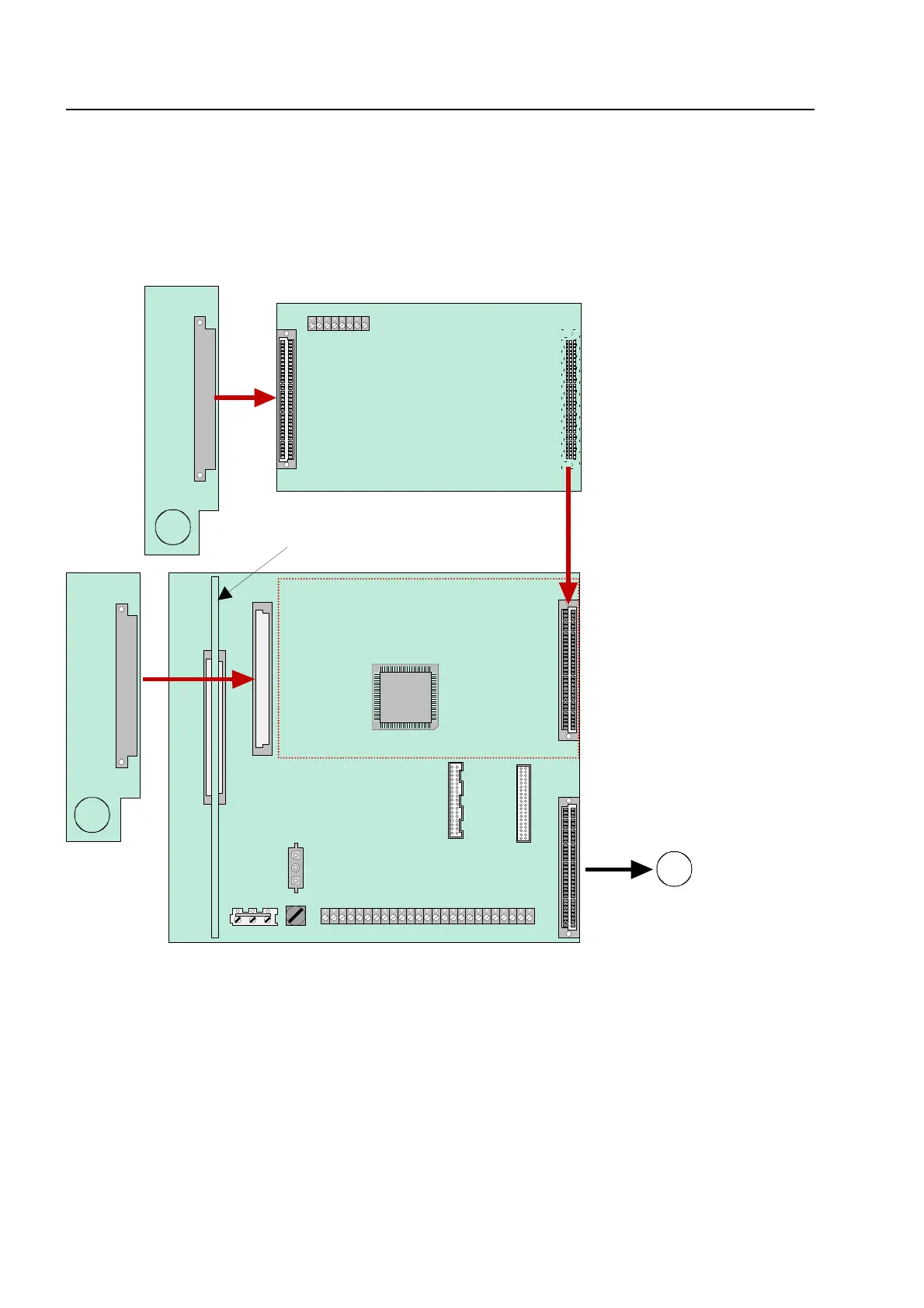

Fig. 33: Full extension of the FACP 8000C with Field device module and two micromodule slots
The slot
ug 2
on the basic module (see illustration (A)) is without function on the FACP 8000C.
No subassembly may be attached to
g 2
.
If an essernet
®
micromodule is inserted into the FACP 8000C, this module can always
only be operated on the micromodule of the slot of the basic module. Adaptation of the
connection configuration on the basic module with the jumpers X11-14 is necessary for
the essernet
®
micromodule.
Location of plug in cards
1
2
A
Extension module
Part No. 772419
Basic module
Micro module
Micro module
Power supply module
Plug 1
Plug 2
