Esser FACP 8000C - Field Device and Extension Modules

Fire Alarm Computer 8000C
Page 73
10.1 Field device module without micromodule slot
A Field device module for connecting a fire service control panel and a transmission unit can be
installed in a fire alarm central unit. Three freely programmable relays for any output function are
also available on this.

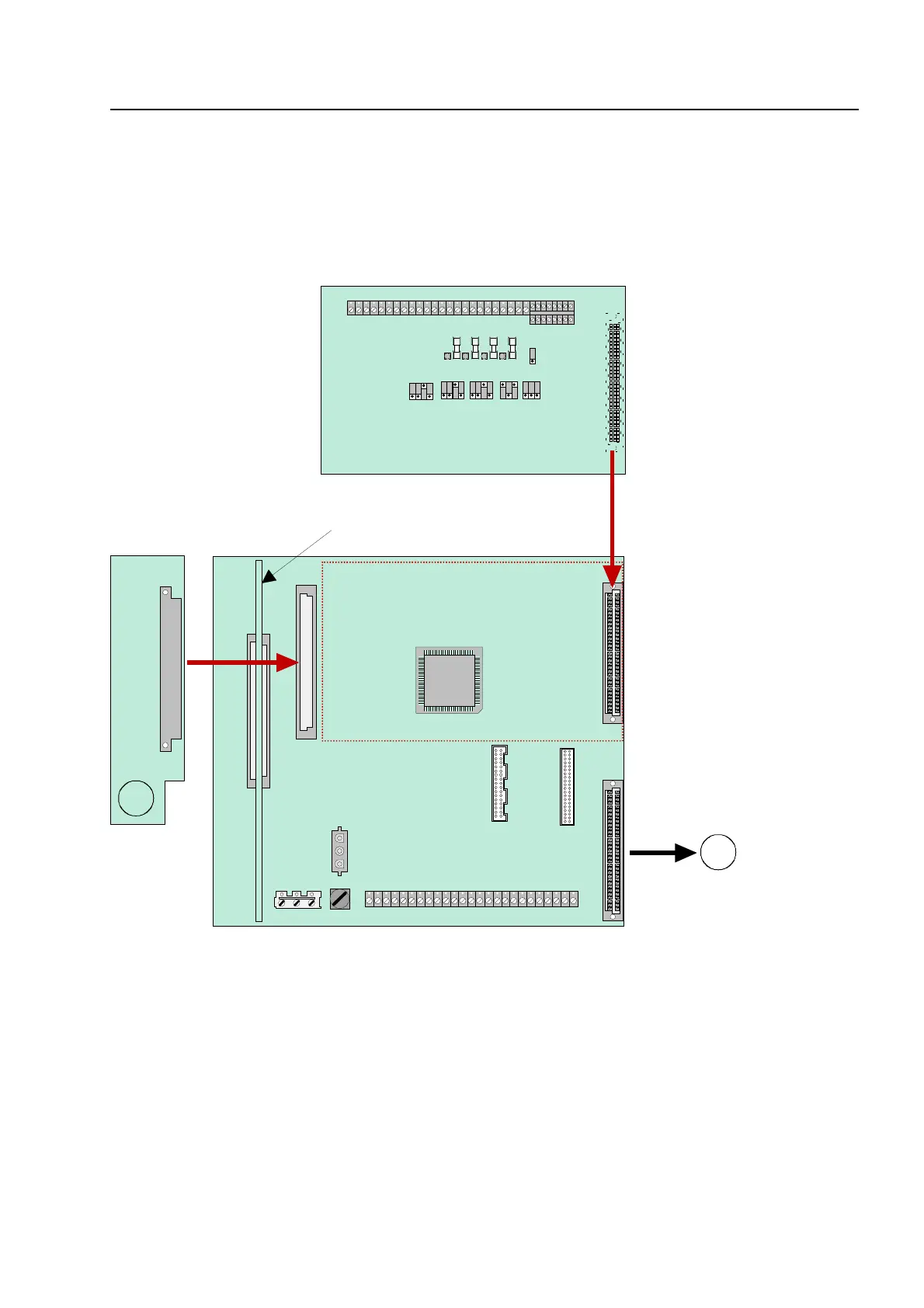

Fig. 32: The FACP 8000C with Field device moduleand one micromodule slot
The plug-in location
g 2
on the basic module (see illustration (A)) is without function in the case
of the FACP 8000C. No subassembly may be attached to
g
2.
Location of plug in cards
1
A
Basic module
Power supply module
Micro module
Field device module
Part No. 772420
Plug 1
Plug 2
