Page 50
Fire Alarm Computer 8000C
7 Overview
In full configuration, the FACP 8000C will accommodate up to two micromodules in any
configuration (also refer to Section on
micromodules
)
One micro module slot is located on the basis card of the 8000C FACP. A second micro module
slot may be added by inserting the appropriate peripheral or extension module.

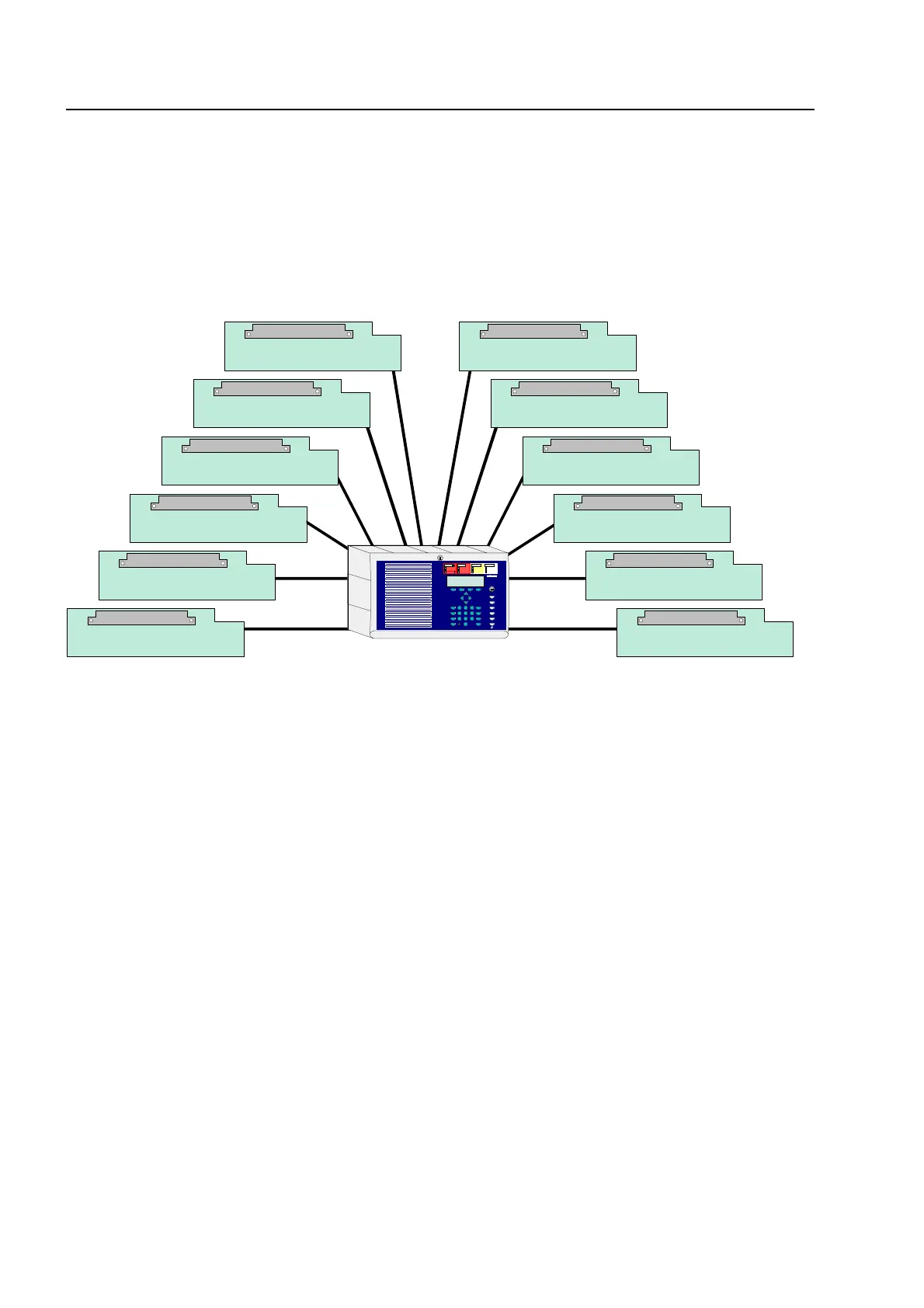

Fig. 1 : Micromodules of the Fire alarm system 8000
Individually adaptable extension variants are possible with the freely selectable extension to the
FACP 8000C.
The Field device modules required in order to construct an individual central unit in line with the
relevant standards. The connections for the fire service control panel, the transmission unit and
the three freely programmable group relays are integrated on the Field device module. If several
fire alarm central units are connected together in the essernet
®
, the fire service control panel can
be connected to one of the other fire alarm central units.
A single-ring central unit with an essernet
®
connection can be realized by installing a Field device
moduleor an extension module with the second micromodule slot.
Installing two analog ring modules enables the construction of a reasonably priced fire alarm
central unit with up to 254 bus subscribers, for example fire alarms or esserbus
®
transponders and
a total of 254 analog alarm groups.
Overview
123
456
789
0
essernet module 500K
essernet module 62,5K
RS 232/TTY-module
analog ring module
BSL-Interface module
4-Output-module
7-Output-P-module/
7-Output-M-module
master box module
4-relay module
3 relay module
3 relay common
trouble module
4 zone module
