Esser FACP 8000C - Relay Behavior During CPU Failure

Page 96
Fire Alarm Computer 8000C
CPU failure mode function of relays K2, K3 and K4
1
2
3
BR 5 BR 4 BR 3
K1
K3K4 K2

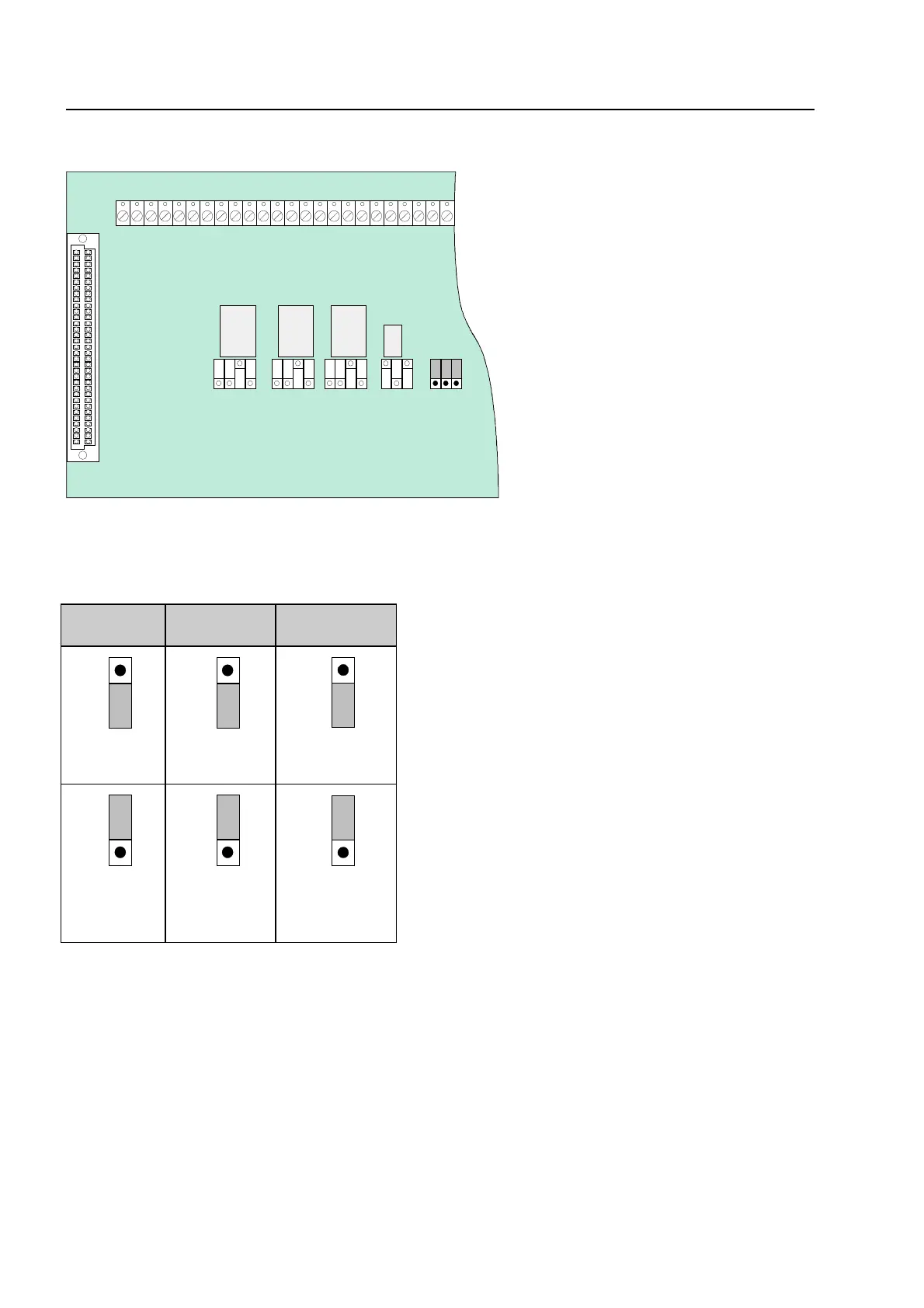

Fig. 53: Location of the emergency mode jumpers BR3-5 on the field device module
K4 K2 K3
BR 5
1
2
3
BR 4
1
2
3
BR 3
1
2
3
Jumper X in position 1/2
No activation of the relay while the fire alarm control
panel is in CPU failure mode. (state on leaving
factory)
BR 5
1
2
3
BR 4
1
2
3
BR 3
1
2
3
Jumper X in position 2/3
Relay also activated while the fire alarm control panel
is in CPU failure mode.
Used if a common function is programmed for the
relays, such as
common fire, common alarm
and
common disconnection
.
Field device module
