User’s Manual
154 ECM-3610/3610L User’s Manual
Appendix F: Audio / USB Daughter Board User’s Guide

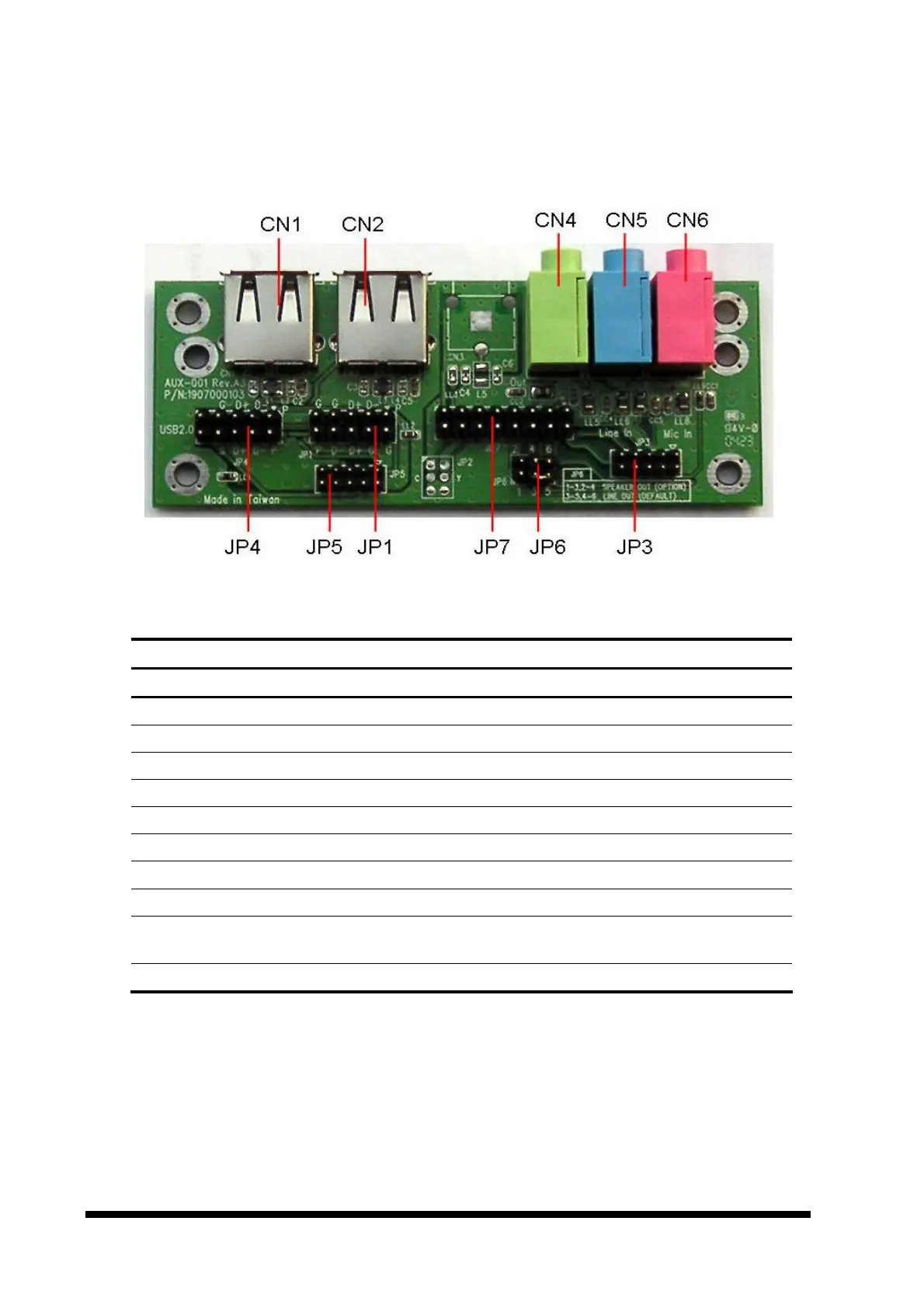

Jumper & Connector Layout
Jumper and Connector List
Connector
Label Function Note
CN1, CN2
USB connector
CN4
Line out connector Phone Jack
CN5
Line in connector Phone Jack
CN6
Mic in connector Phone Jack
JP1
2.54mm USB connector 1
5 x 2 header, pitch 2.54mm
JP3
Audio connector
5 x 2 header, pitch 2.0mm
JP4
2.54mm USB 2.0 connector 2
5 x 2 header, pitch 2.54mm
JP5
2.0mm USB connector
5 x 2 header, pitch 2.0mm
JP6
Line out / Speaker out select
1-3, 2-4 Speaker out
3-5, 4-6 Line out (Default)
JP7
TV / Audio connector
8 x 2 header, pitch 2.54mm
