ECM-3610/3610L
ECM-3610/3610L User’s Manual 5
2.3 Architecture Overview

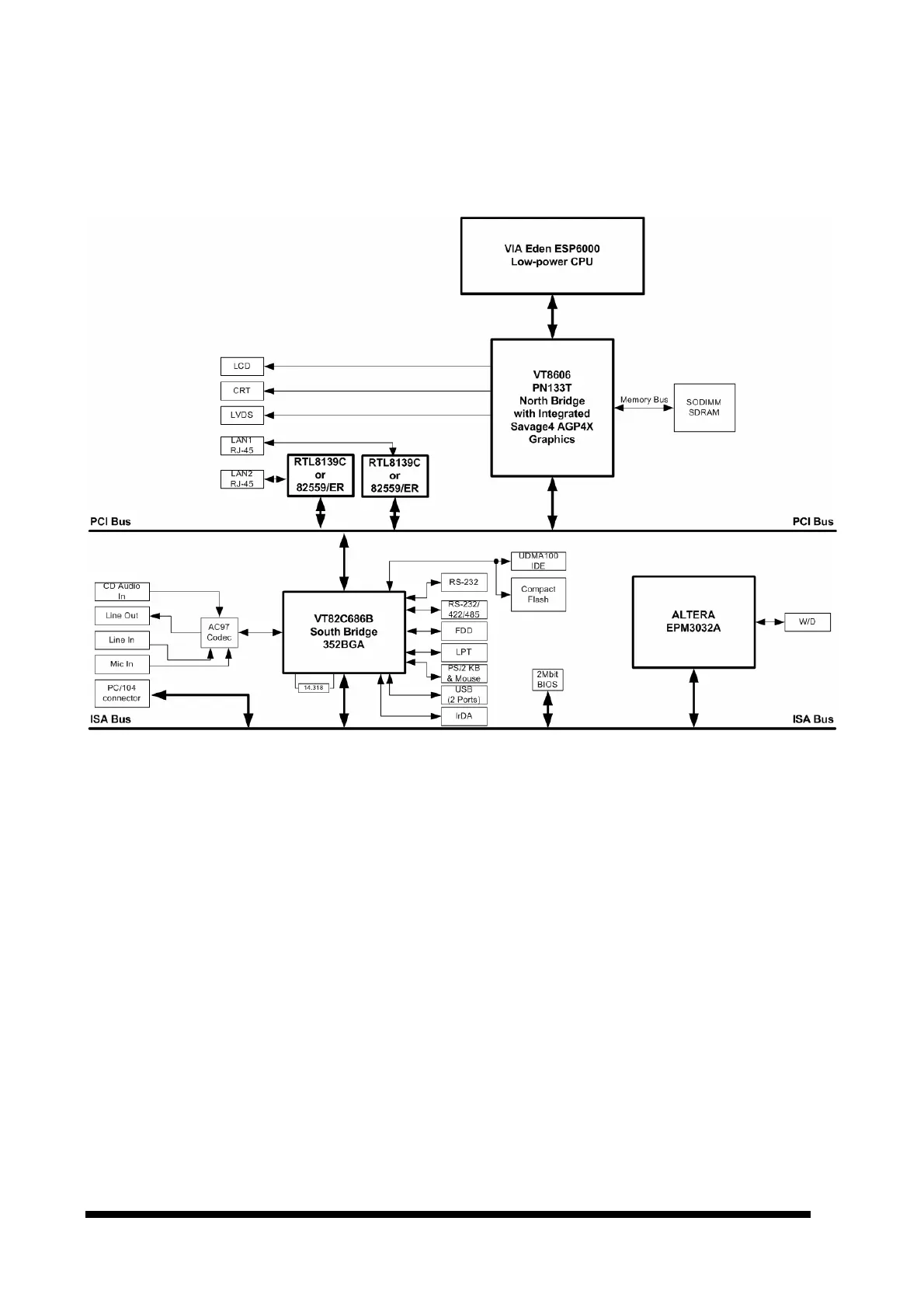

The following block diagram shows the architecture and main components of ECM-3610.
The two key components on board are the VIA VT8606 North Bridge and VT82C686B
super South Bridge. These two devices provide the ISA and PCI bus to which all the major
components are attached.
The following sections provide detail information about the functions provided onboard.
