ECM-3610/3610L
ECM-3610/3610L User’s Manual 17
3.4 Jumper & Connector

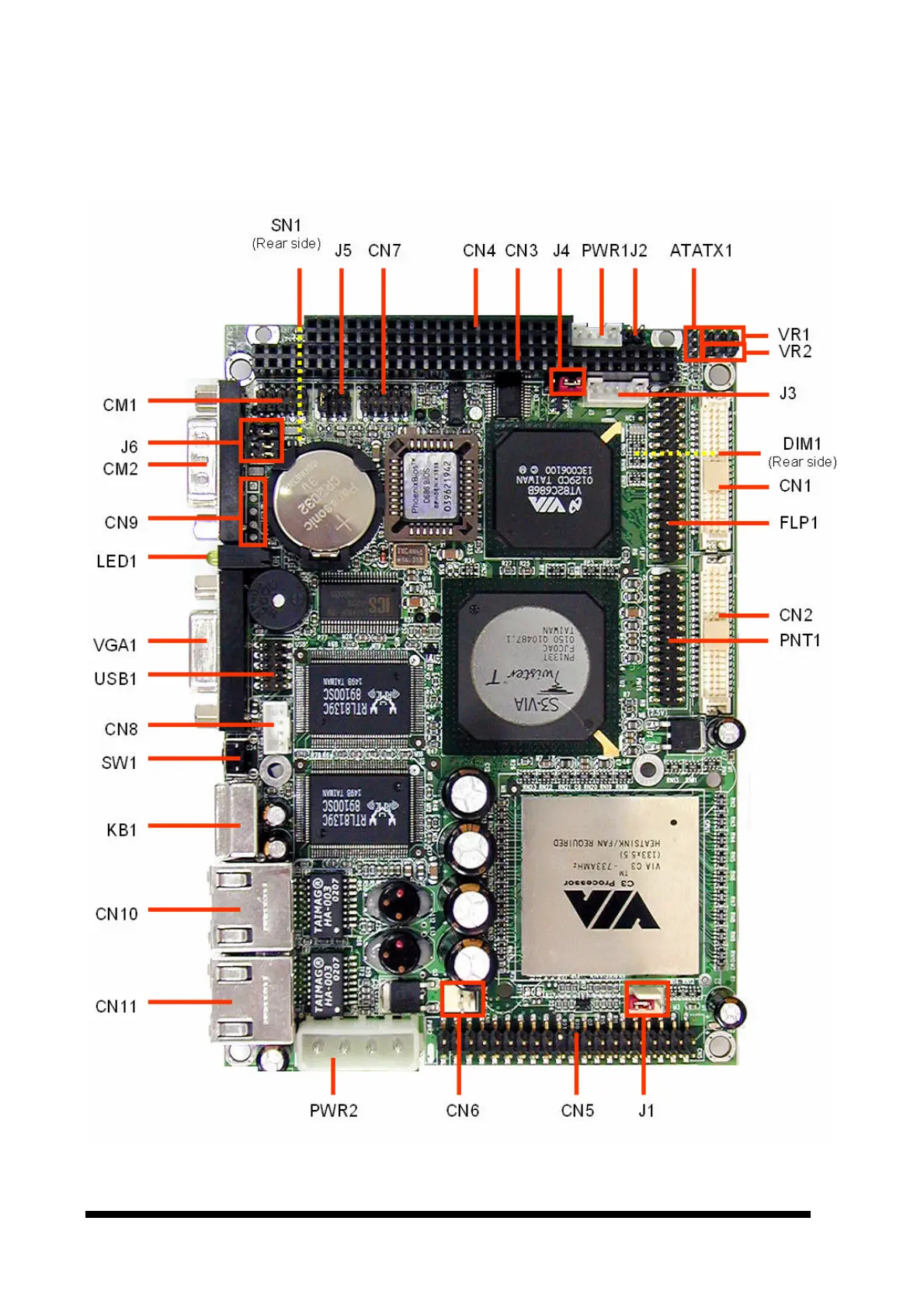

3.4.1 Jumper & Connector Layout
