Changing the FIP Nozzle (MF-Ready Probes Only)

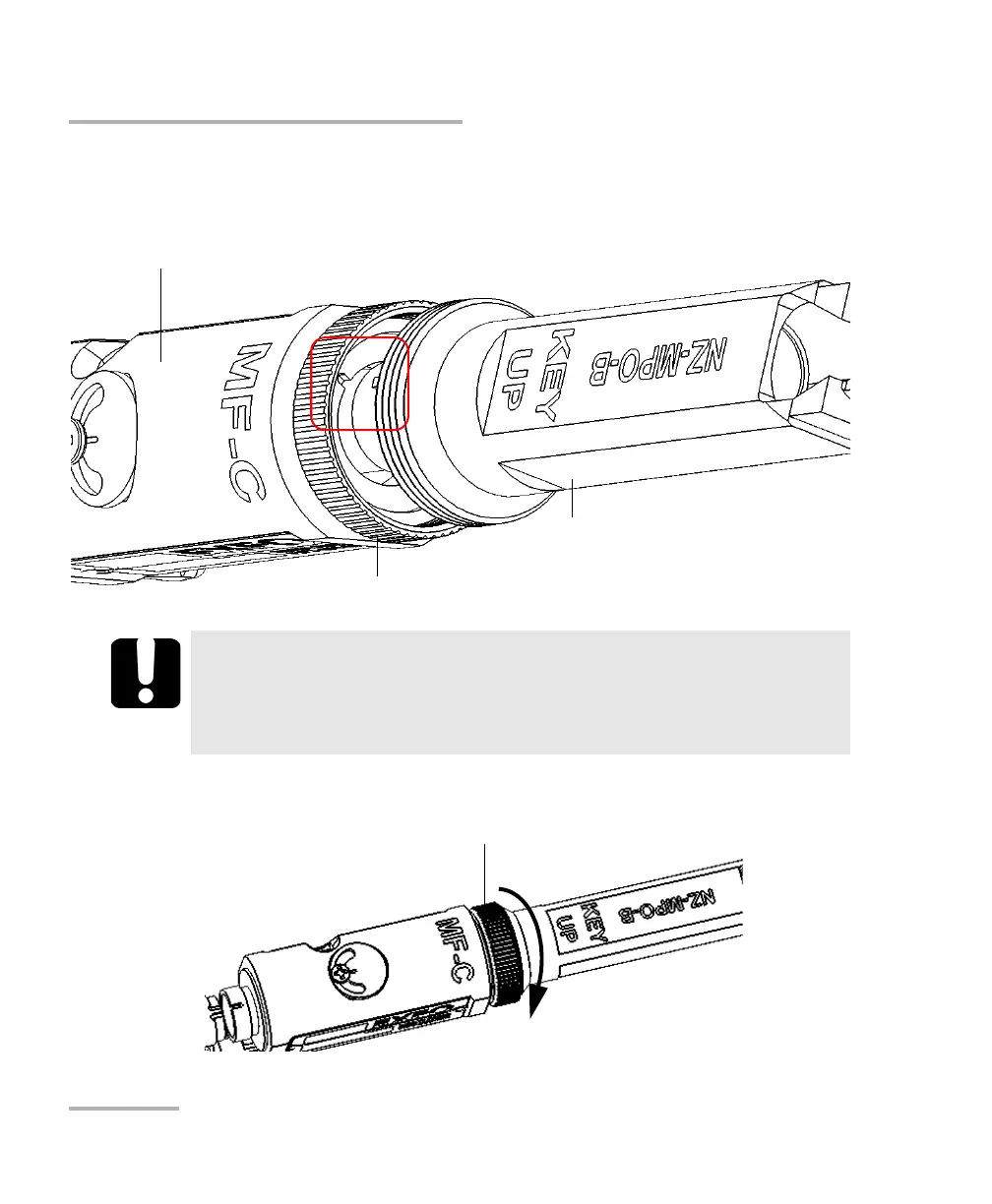

4. Align the key of the nozzle with the notch of the inspection tip until you
feel it click in place. When this step is performed adequately, you
cannot move the nozzle freely.
5. Retighten the retaining nut clockwise.
IMPORTANT
The key of the nozzle, whether it is installed key up or key down,
MUST BE aligned with the notch of the inspection tip. Otherwise, it
will be impossible to perform an acquisition.
Removable nozzle
Inspection tip
Retaining nut
