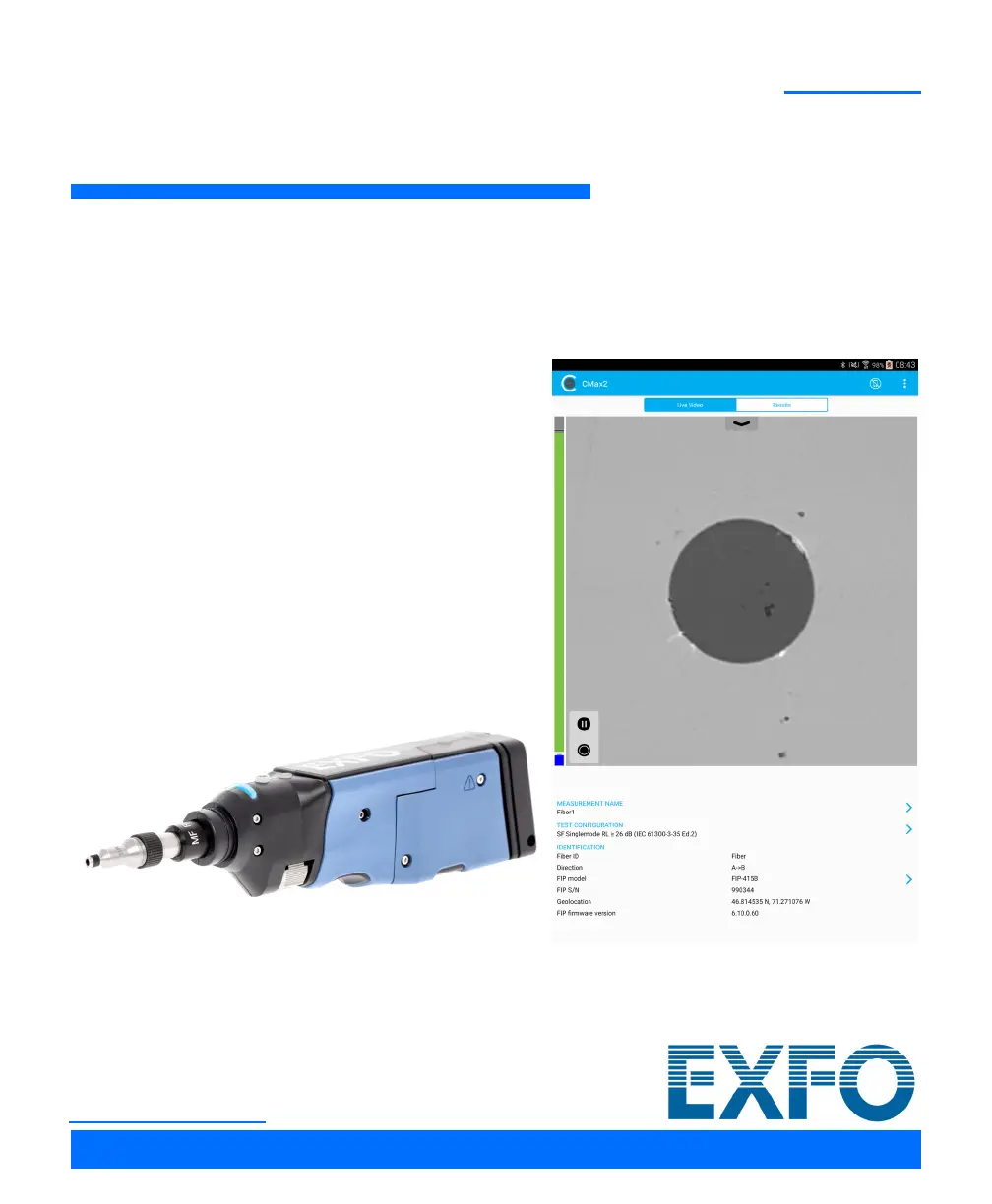

User Guide
Fiber Inspection Probe and
ConnectorMax2 Mobile (Android)
FIP-400B
www.EXFO.com

Table of Contents

Questions and Answers

  • G
    George NixonAug 18, 2025
    What to do if I see a connection problem message with EXFO FIP-435B Analytical Instruments?
    • C
      Chelsea HoustonAug 18, 2025
      If you see a connection problem message with your EXFO Analytical Instruments, first, if the probe is in use by another device, disconnect it and try again. If connected via USB to a computer or EXFO platform, disconnect the probe from the USB port, close ConnectorMax2 Mobile on the computer, and try again. If connecting via Wi-Fi fails and the device connects to a previous Wi-Fi connection, use the device settings to connect to the probe. To return to the previous connection, use the device settings as well.
  • A
    Alexander ChavezAug 20, 2025
    What to do if I cannot see the fiber on-screen with EXFO FIP-435B Analytical Instruments?
    • T
      Taylor McknightAug 20, 2025
      If you cannot see the fiber on-screen with your EXFO Analytical Instruments, check the probe connection status to see if ConnectorMax2 Mobile is detecting the probe. If it is properly connected, close and reopen ConnectorMax2 Mobile. Ensure that Wi-Fi is on and the probe is also on.
  • L
    lisawilliamsAug 23, 2025
    Why is the ConnectorMax2 Mobile application icon not available for EXFO FIP-435B?
    • K
      Kimberly ValentineAug 23, 2025
      If the ConnectorMax2 Mobile application icon is not available in the list of applications displayed, ensure your smart device is not in Safe Mode. If it is, restart the device. Also, verify that the ConnectorMax2 Mobile application was installed from the current user account, not from another account.
  • R
    Rachel MorrisAug 26, 2025
    Why is the image blinking in live video mode on EXFO FIP-435B Analytical Instruments?
    • B
      Brent AustinAug 26, 2025
      If the image displayed in live video mode is blinking on your EXFO Analytical Instruments, make sure that the type of connector selected in the software matches the type of connector physically connected to the probe.
  • N
    Nathaniel LeonardAug 28, 2025
    How to fix auto centering on EXFO FIP-435B Analytical Instruments?
    • J
      johnsonraymondAug 28, 2025
      To resolve auto centering issues with your EXFO Analytical Instruments, try cleaning the connector and adjusting the image focus.
  • A
    Anna GoodwinAug 30, 2025
    What does it mean if the FIP status LED blinks red for 2 seconds in live video mode on EXFO FIP-435B?
    • E
      Erica WarnerAug 31, 2025
      If the FIP status LED blinks red for 2 seconds in live video mode and turns from unlit to blue (auto focus timeout), with your EXFO Analytical Instruments, try to put the fiber back in place.
  • M
    Melanie PenaSep 2, 2025
    What to do if the FIP internal temperature is too high on EXFO Analytical Instruments?
    • P
      Paula MontoyaSep 2, 2025
      If the FIP internal temperature is too high on your EXFO Analytical Instruments, let the FIP cool down.
  • J
    Jason FrancoSep 4, 2025
    Why is the FIP measurement corrupted when imported via USB to EXFO Analytical Instruments?
    • A
      Anna JohnsonSep 4, 2025
      If the FIP measurement is corrupted when imported from a computer to the smart device via a USB cable with your EXFO Analytical Instruments, try transferring the files using a cloud application like Google Drive. The corruption may be caused by the smart device drivers.
  • A
    andrewmorganSep 7, 2025
    How to fix a truncated user interface in the EXFO FIP-435B application?
    • E
      Elizabeth SteinSep 7, 2025
      If the user interface displayed in the application is truncated on your EXFO Analytical Instruments, change the font size in your smart device settings to improve readability.
  • M
    morgan20Sep 9, 2025
    Why is the capture button not available on my EXFO FIP-435B?
    • K
      kimberlyfoxSep 9, 2025
      If the capture button is not available on your EXFO Analytical Instruments, ensure that the type of connector selected matches the type of connector connected to the probe. Also, ensure that the focus value is sufficient to perform the analysis by using the focus knob on the probe until the focus indicator displays an acceptable (yellow) or preferred (green) range.

Summary

Introducing the FIP-400 B Fiber Inspection Probe and ConnectorMax2 Mobile

ConnectorMax2 Mobile Software

Introduction to the ConnectorMax2 Mobile application for fiber inspection.

Safety Information

Other Safety Symbols on Your Unit

Explains various safety symbols that may appear on the unit.

Laser Safety Information for the Multifiber Source

Specific safety guidelines related to laser radiation from the Multifiber Source.

Electrical Safety Information

Safety precautions related to the electrical aspects of the probe and its accessories.

Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile

Preparing to Use the Mobile Application

Steps required before using the ConnectorMax2 Mobile application.

Connecting or Disconnecting the Wireless Probe

Instructions on how to establish and terminate wireless connections with the probe.

Inspecting Fiber Ends

Inspecting Fiber Ends (Single Fiber and Transceiver - Fiber Receptacles)

Step-by-step guide for inspecting single fiber and transceiver connectors.

Inspecting Multiple Fiber Ends (MF-Ready Probes Only)

Procedure for inspecting multiple fibers using MF-Ready probes.

Analyzing Captures

Understanding the analysis features like auto-centering, auto-focus, auto-capture, and auto-analysis.

Using the Probe in Standalone Mode

Operating the probe without a connected smart device for basic pass/fail status.

Updating the Firmware

Instructions on how to perform firmware updates for the probe.

Working with a Multifiber Source

Turning On or Off the Multifiber Source

Procedures for powering the Multifiber Source unit on and off.

Setting up the Multifiber Source

Connecting and configuring the MFS for continuity and polarity testing.

Understanding Fiber Continuity

Explains the concept of fiber continuity and its analysis.

Understanding Fiber Polarity

Explanation of fiber polarity types (A, B, C) in multifiber patchcords.

Maintenance

General Maintenance

Battery Safety Recommendations

Important safety guidelines for handling and replacing the device's battery.

Cleaning MPO-Type Connectors

Cleaning Lenses

Recharging the Battery

Recharging the Battery of the Multifiber Source

Replacing the Battery

Replacing the Battery of the Multifiber Source

Troubleshooting

Solving Common Problems

A table listing common issues and their corresponding solutions.

Contacting the Technical Support Group

EXFO FIP-435B Specifications

General IconGeneral
ConnectivityUSB
Image SensorCMOS
TypeFiber Inspection Probe
Camera Resolution1.3 MP
DisplayLCD
Battery Life8 hours (continuous use)
Wavelength Range400 nm to 700 nm
Power Measurement Range-30 dBm to +10 dBm
Power Measurement Accuracy±0.5 dB
Wavelength Accuracy±1 nm
Resolution Bandwidth10 nm
Dynamic Range≥ 45 dB
Operating Temperature0°C to 50°C
