Changing the FIP Nozzle (MF-Ready Probes Only)
Changing the FIP Nozzle (MF-Ready Probes
Only)
The MF-Ready probe, which is composed of a removable nozzle and an
inspection tip, allows you to inspect various multifiber connector models.
The nozzle is interchangeable but it must always be installed on the
inspection tip first. Depending on the patch panel you are inspecting, the
nozzle can be inserted in two different ways (key up or key down).
If you decide to inspect single fibers and transceivers, you can also remove
the inspection tip and work with the MF-Ready probe as you would with
the standard probe. See Changing the Fiber Inspection Probe Tip on
page 27 for details.
For more information about tips you can use, see the Fiber Inspection
Probe Tip Compatibility Chart on page 137, or contact your vendor for
additional information.
IMPORTANT
To facilitate the installation process of all components, EXFO
recommends to install the removable nozzle on the inspection tip
first.

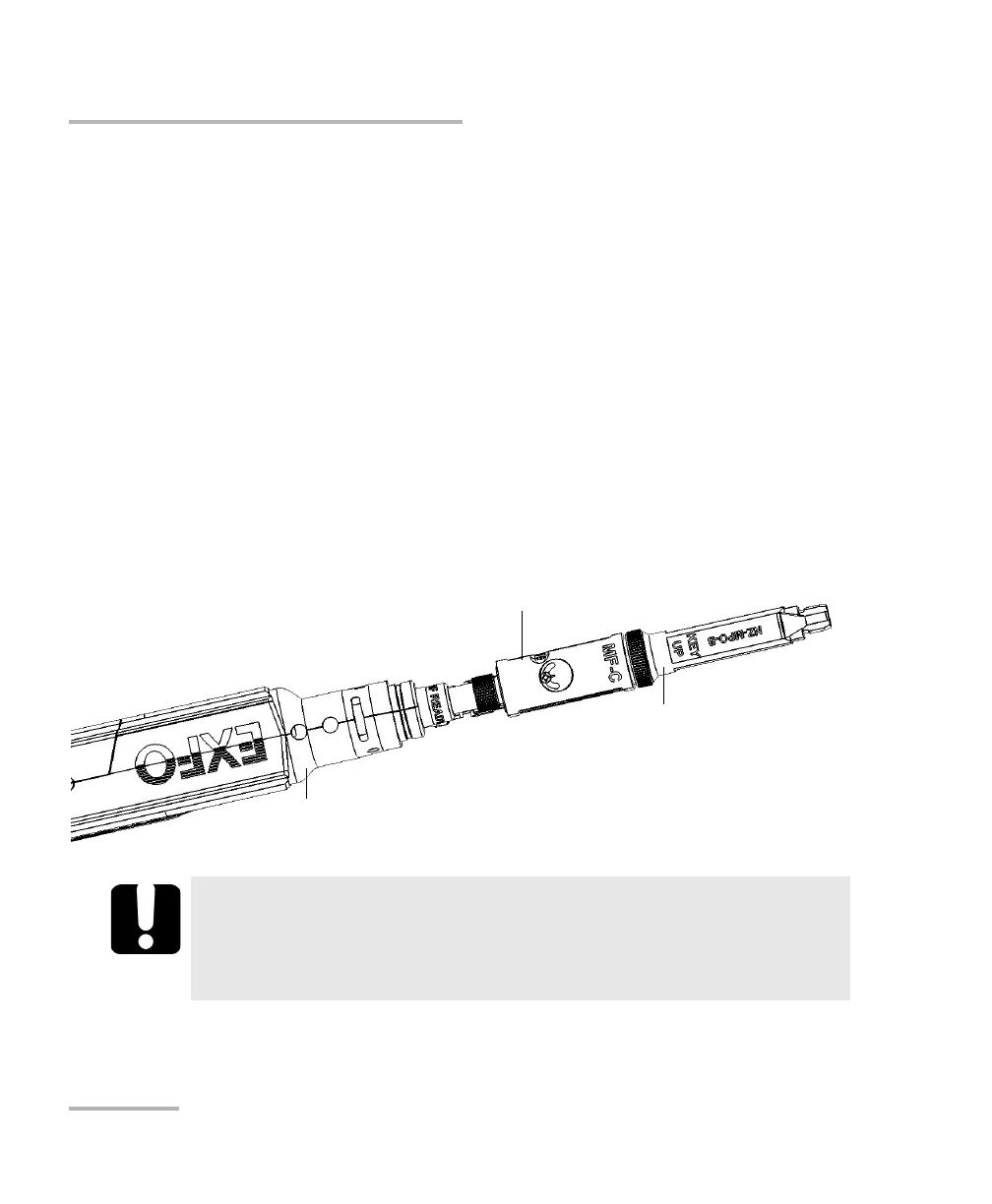

Inspection tip
Removable nozzle
MF-Ready probe
