Changing the FIP Nozzle (MF-Ready Probes Only)
To install the removable nozzle and the inspection tip on the
MF-Ready probe:
1. Depending on the patch panel you are inspecting, insert the removable
nozzle on the metal rod of the inspection tip key up or key down (as
written on the nozzle).
2. Align the key of the nozzle with the notch of the inspection tip until you
feel it click in place. When this step is performed adequately, you
cannot move the nozzle freely.
IMPORTANT
The key of the nozzle, whether it is installed key up or key down,
MUST BE aligned with the notch of the inspection tip. Otherwise, it
will be impossible to perform an acquisition.

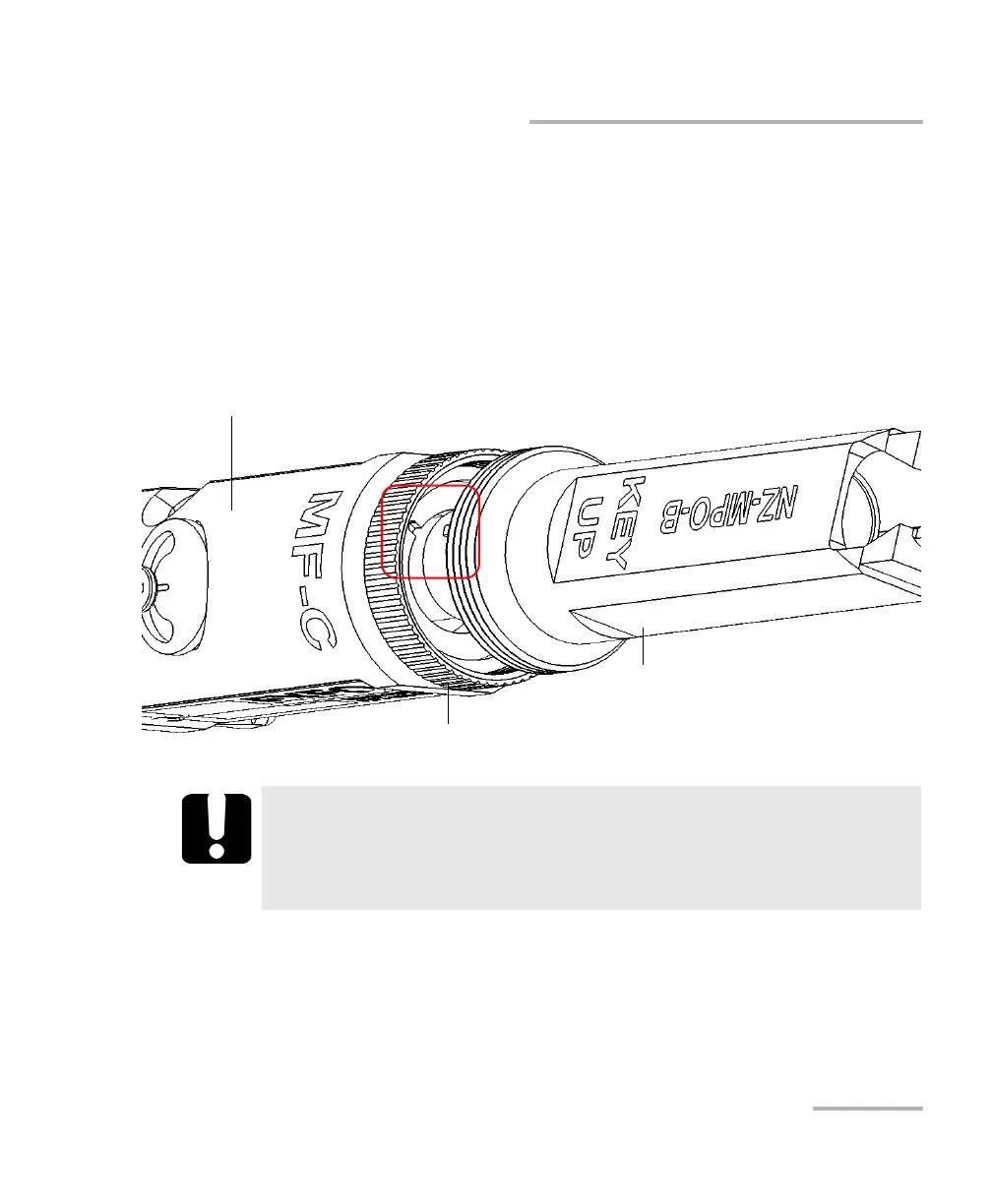

Removable nozzle
Inspection tip
Retaining nut
