Inspecting Fiber Ends
88 FIP-400B
Analyzing Captures

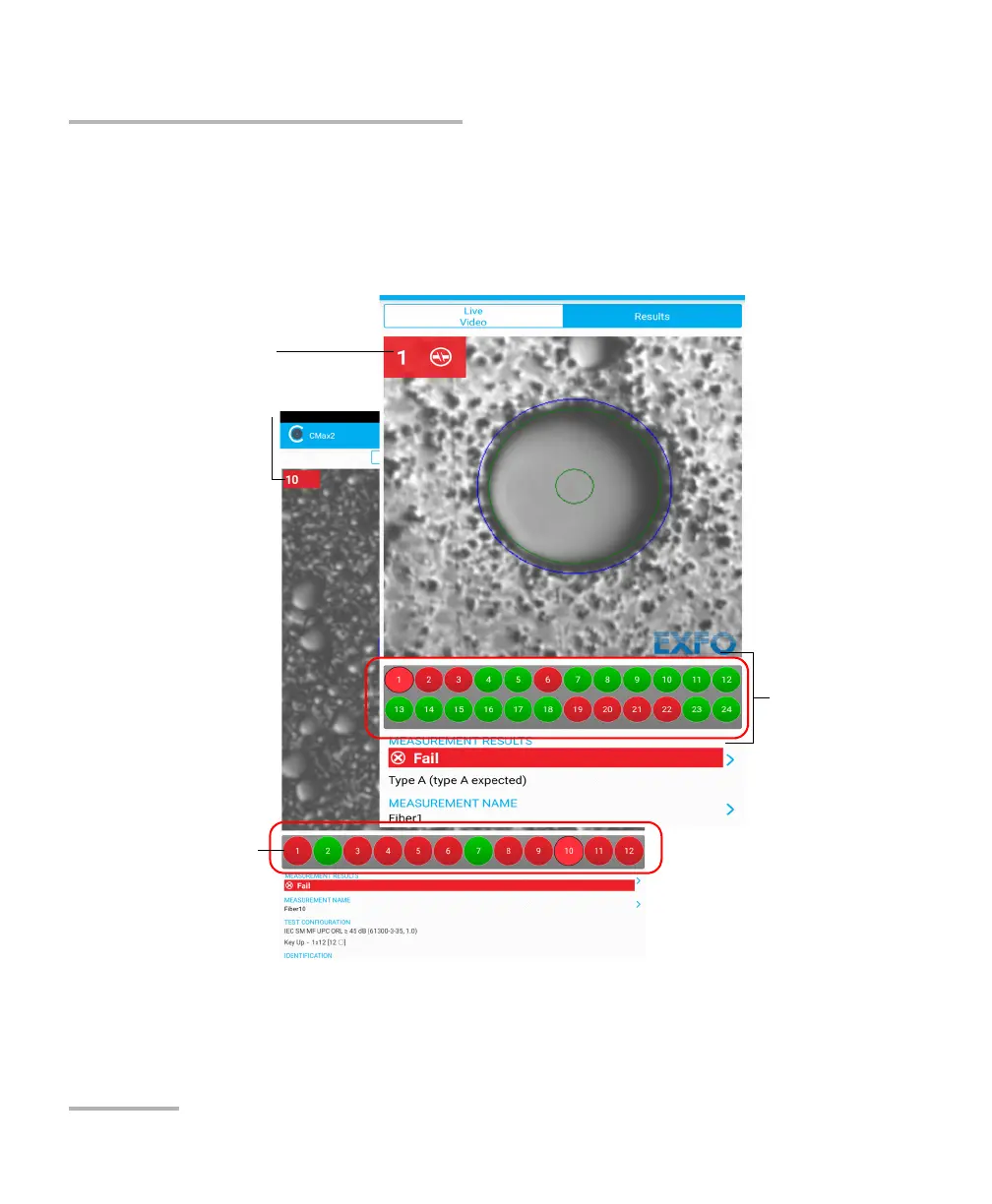

To view the results (multifiber connector):
1. Perform the three captures. See Inspecting Multiple Fiber Ends
(MF-Ready Probes Only) on page 64 for details.
2. In the Results window, tap the number of the fiber you want to view.
OR
Swipe directly on the screen to make your selection.
The color in the
background indicates the
global status of the
connector.
Single-row multifiber
connector
Dual-row
multifiber
connector
