Analyzing Traces and Events
128 MAX-700
Setting Trace Display Parameters
Setting Trace Display Parameters
Once you have started the desired trace acquisition mode (Automatic or
Advanced), you can change several trace display parameters:
the grid: You can display or hide the grid appearing on the graph’s
background. By default, the grid is displayed.
the graph background: You can display the graph with a black (invert
color feature) or a white background. By default, the background is
white.
Note: The application always generates graphs with a white background in the
reports.

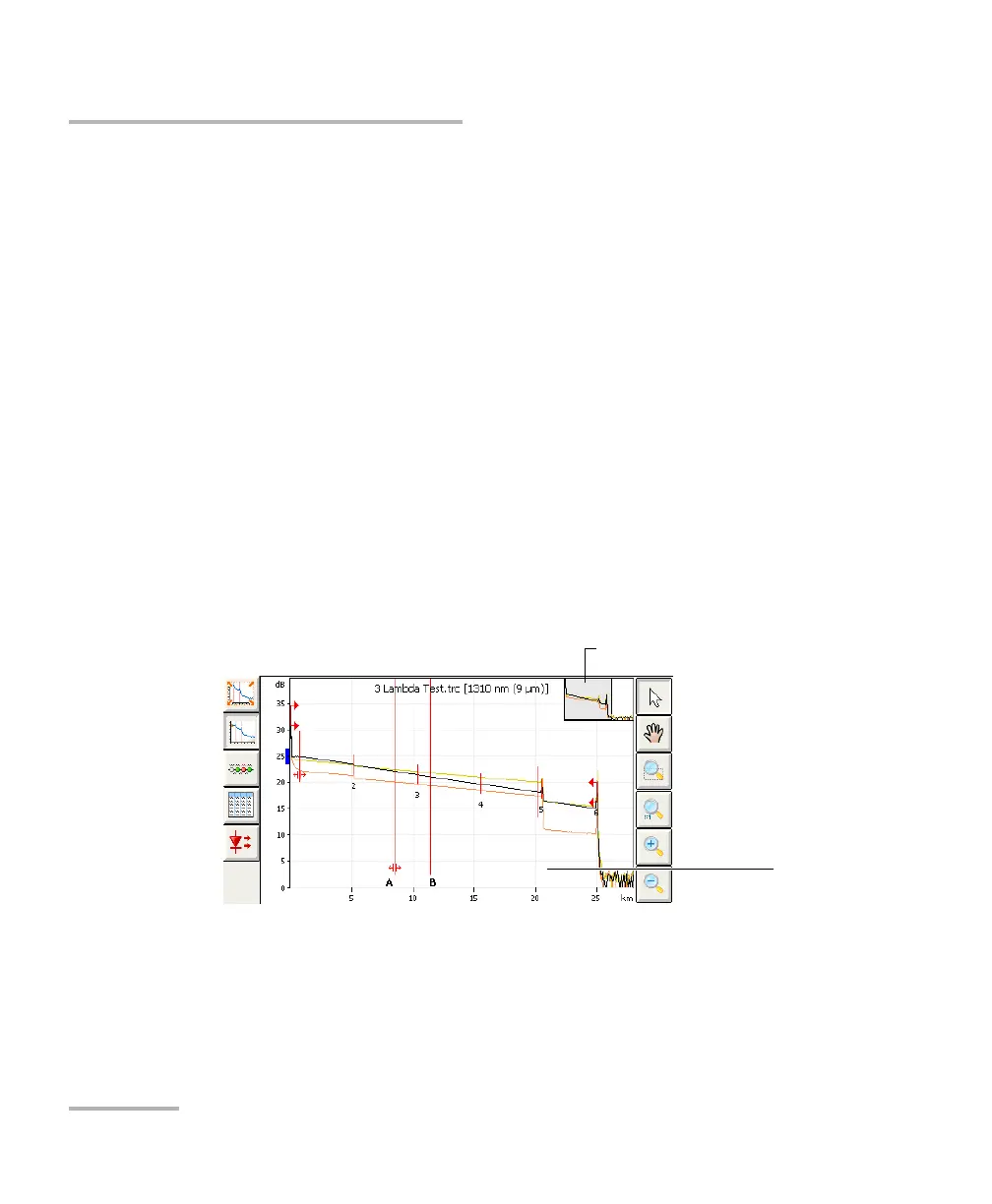

the zoom window: The zoom window shows you which portion of the
graph is being magnified. By default, the zoom window is displayed.
the file name in the trace display: The file name appears at the top of
the trace display. By default, the file name is displayed.
Note: The trace display settings used in Auto and Advanced modes are
independent from the ones used in the Fault Finder mode.
