Managing Data

MAX-700 269

Connecting to a Wireless Network

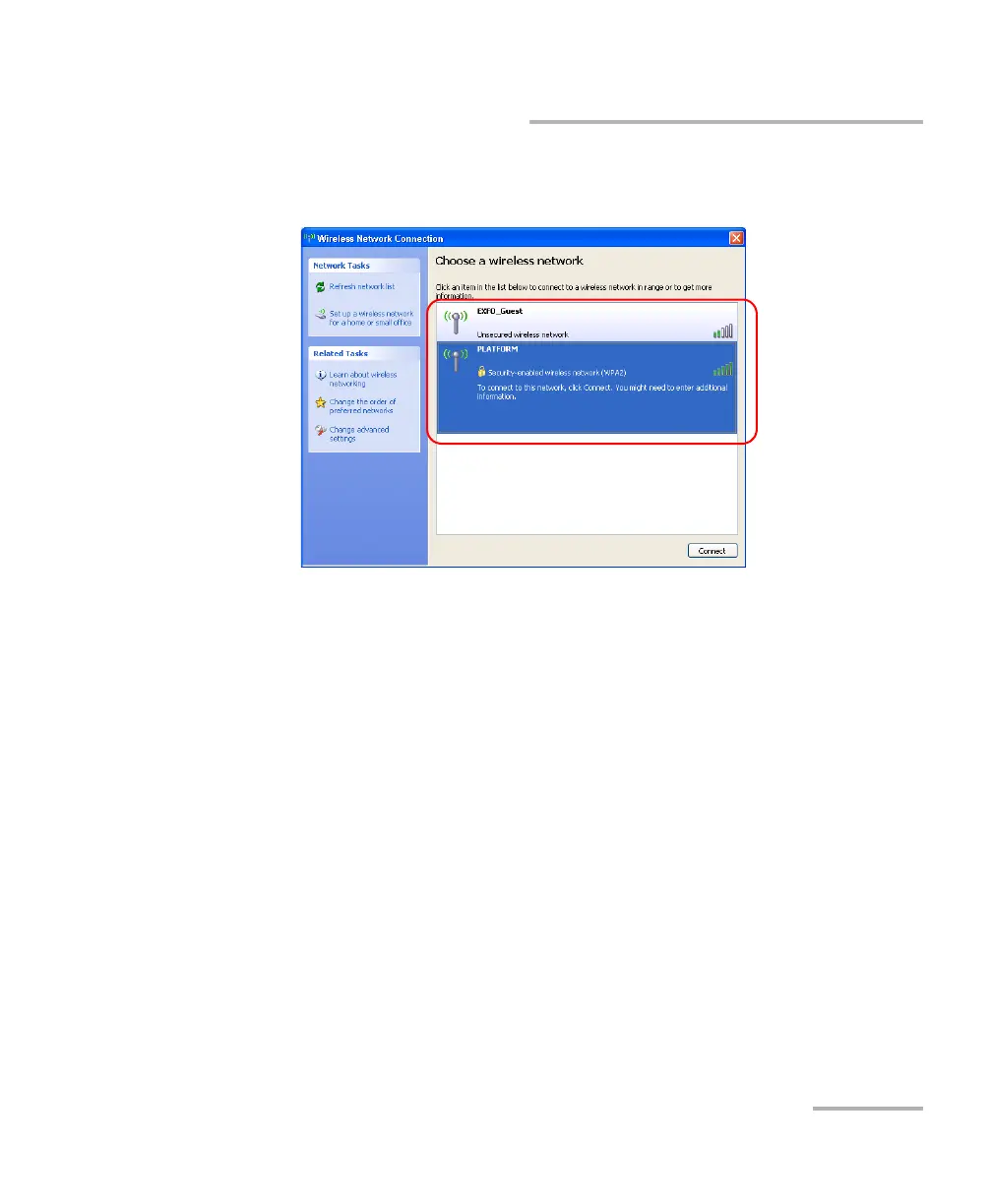

8. From the Wireless Network Connection window, select the wireless

network to which you want to connect.

9. Tap Connect.
